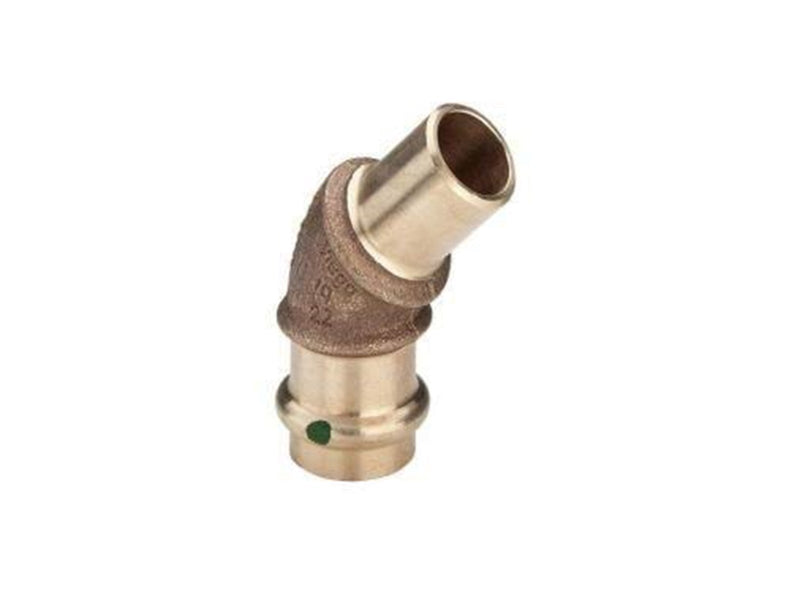

Viega Sanpress bend 45° 15 gunmetal/glossy 109332

. 85°C•Driftstryk max. 1.6 MPaViega Sanpress bend 45° 15 Red Brass/Polished, 109332Product description: Press fitting system with press fittings made of red brass, pipes made of stainless steel material no.1.4401 and 1.4521 according to DIN EN10088, DIN EN10312, DVGW work sheet GW541, system approval for fittings and pipes according to DVGW work sheet W534 for drinking water installations according to DIN1988.For a stable installation of various plumbing installations in Viega's complete system.Press fittings: All sizes have an SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled with liquid. The SC-Contur is certified and meets the requirements of DVGW work sheet W534 point12.14 guaranteed leak-proof when not pressed.During pressure testing with water Viega can detect unpressed fittings in the pressure range from0.1 MPa–0 .65MPa; during dry pressure testing with compressed air or inert gases from22 hPa–0 .3MPa.Marking:•Green dot on press connectionGaskets:EPDM black (ethylene-propylene-diene rubber), up to110°C not resistant against hydrocarbon solvents,chlorinated hydrocarbons, turpentine,benzene.Pipes:Stainless steel laser welded and corrosion-resistant stainless steel.•Material No.: 14401 (AISI316L) (X5CrNiMo17-12-2),with2 .3% molybdenum for better durability,yellow plugs.•Material No.:14521(AISI444)(X2CrMoTi18-2),with PRE value24 .1 green plugs.Dimensions/Materials:Standard sizes: d12, 15, 18, 22,28 ,35 ,42 ,54 of red brass.XL sizes: d76.1,88.9 and108 .0 of red brass.Press fitting with threaded connection of red brass.Applications:Drinking waterRainwaterCompressed air systemsAgricultureIndustry Special applications ShipbuildingIf used for other than the described applications please contact Viega Service Center to coordinate materials.Operating conditions:Drinking water installations:•Drinking water without restrictions according to TrinkwV.•Maximum operating temperature85°C.•Maximum operating pressure1.6 MPa.Drinking water installations:•Maximum operating temperature85°C.•Maximum operating pressure1.6 MPa.
