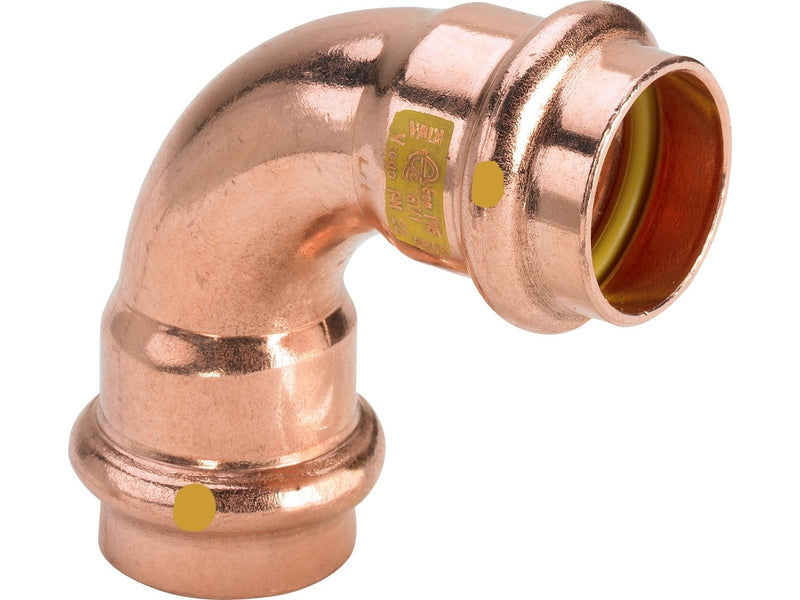

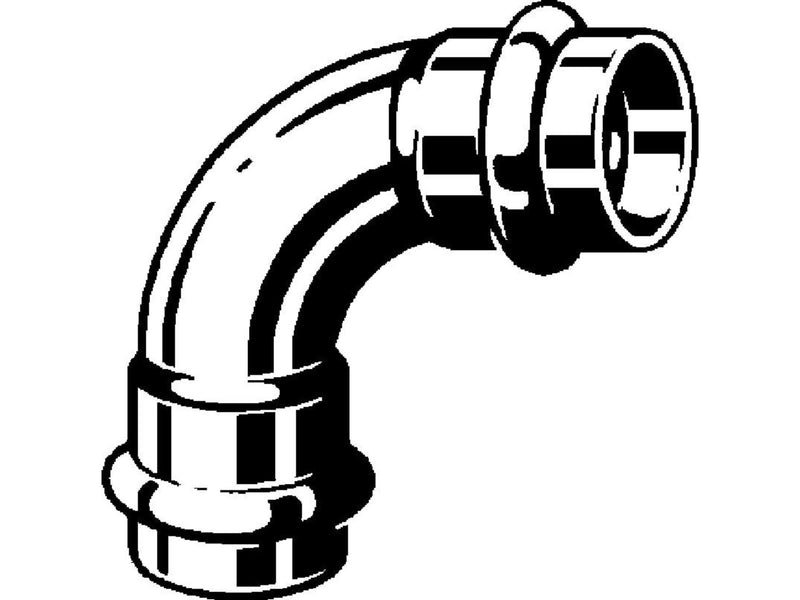

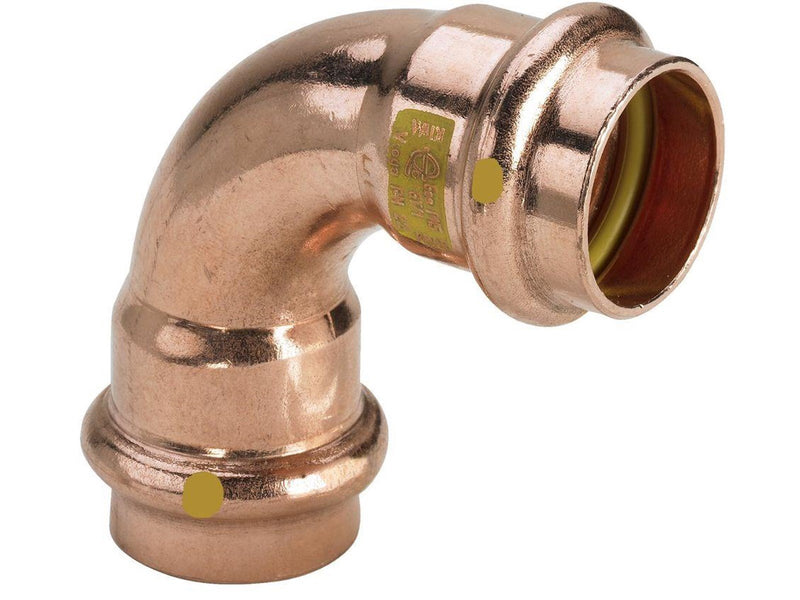

Viega Profipress G bend 90° 15 Copper/bright 345464

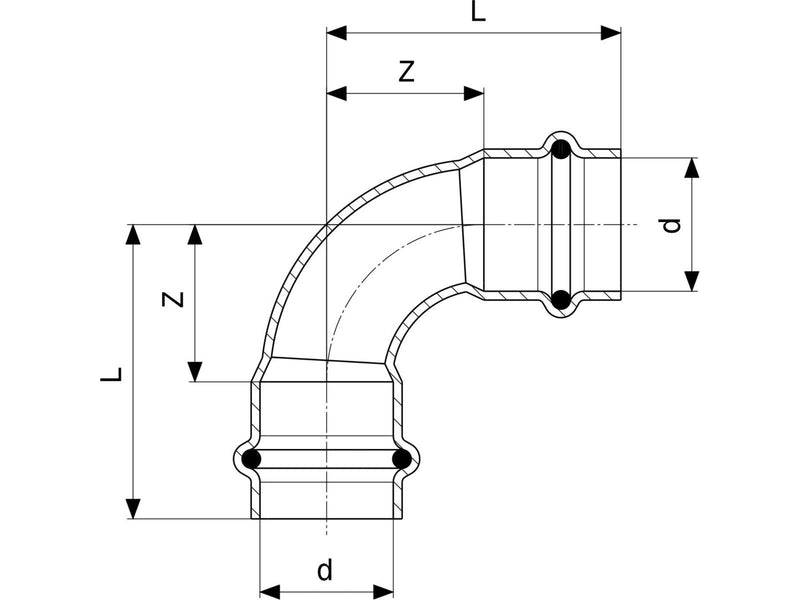

Press connector system with press connectors and pipes made of copper in acc. with EN 1057 and DVGW worksheet GW 392 suitable for:•Gases in acc. with DVGW G 260 in gas installations in acc. with DVGW-TRGI 2008 (DVGW worksheet G 600) / DVFG-TRF 2012•Liquid gas in the gas phase for domestic and commercial applications, tested in acc. with DVGW worksheet G 5614•Heating oil pipelines for heating oil in acc. with DIN 51603-1•Diesel fuel pipelines for diesel fuel, as suction and pressure pipelines in acc. with EN 590 in consideration of the general technical approval Z-38.4-71Press connectorsAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet G 5614, point 4.4.1, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingYellow dot, yellow rectangle and inscription »Gas MOP 5 / GT1«Sealing elementsHNBR, yellowDimensions/MaterialStandard sizes: d 12, 15, 18, 22, 28, 35, 42, 54 made of copperXL sizes: d 64.0 made of copperPress connectors with threaded connection d 12–54 made of gunmetalXL press connectors with threaded connection d 64.0 made of copperAreas of applicationNatural gas/Liquid gasHeating oil/Diesel fuel (d 12–54)NoteOnly Viega copper and gunmetal press connectors, which are marked with a yellow rectangle and have the inscription »Gas MOP 5 / GT1« are permitted for use in installations for gas, heating oil and diesel fuel systems!Use of the system for application areas and media other than those described here must be agreed with Viega Service Center through a material request.Operating conditionsGas and liquid gas systems•Operating temperature -20 °C up to +70 °C•Operating pressure max. 0.5 MPa•Operatin
