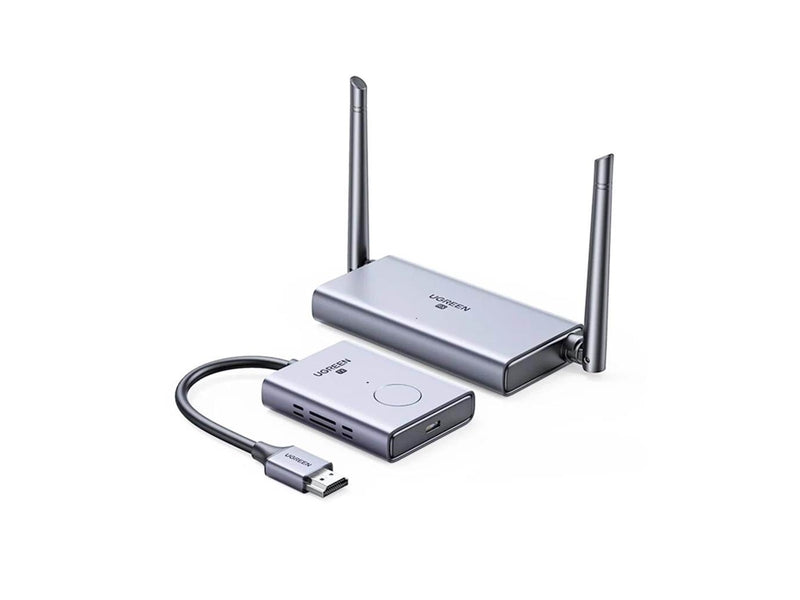

UGREEN Wireless HDMI Extender Transmitter and Receiver 50m

* Input Port and Specifications* Transmitter (TX):* 1xHDMI In Male Cable: Used for connecting HDMI signal source devices, compliant with* HDMI 1.4 protocol specification, supporting a maximum resolution of 1080P@60Hz, downstream.* Compatible, 720P@60Hz, etc., supports HDCP 1.4.* 1xUSB-C femaleboard: Used for connecting product power supply, supports maximum power supply* 5V±5% ≥1A。* Receiver (RX):* 1xUSB-C femaleboard: Used for connecting product power supply, supports a maximum power supply of 5V ±5% 。1A.* * Output Ports and Specifications* Receiver (RX):* 1xHDMI Out femaleboard: Used for connecting HDMI display devices, supports hot swapping, meets HDMI 1.4 specification requirements, outputs supporting a maximum resolution of 1080P@60Hz, and is backward compatible with 720P@60Hz.* 1xVGA Out femaleboard: Used for connecting VGA display devices, supports hot swapping, outputs up to 1080P@60Hz resolution, and is backward compatible with 720P@60Hz, making it compatible with HDMI out. 1x3.5mm headphone jack: supports PCM2.0 audio output. 5 Indicator Light Description: The RX end indicator light is always on when powered on, while the TX end indicator light is slow-flash when powered off and reconnected or paired. After a successful pairing, it often stays on.* * Power Requirements: Both the TX and RX ends require an external power adapter to function, with 5V ±5% 。* Product power consumption: TX end: no load ≈ 245 mA, full load ≈ 441 mA; RX end: no load ≈ 550 mA, full load ≈ 637 mA;* * Video formats: RGB (8/10/12) bit; YCbCr:4:4 (4:2:2 not supported) (8/10/12) bit; does not support 3D/HDR/CEC/ARC functions;* * Audio formats and sampling rates: HDMI or 3.5mm audio interfaces support up to PCM2.0; 24-bit at 48kHz.* * The screen delay is approximately 140 ms.* * Product wireless transmission distance and HDMI cable length* * The wireless maximum range is 50 meters (open and unobstructed). 1080P60Hz HDMI comes with built-in cable length input, with a maximum HDMI output of 20 meters and a maximum VGA output of 15 meters.* * Simultaneous display/EDID reading shows both HDMI out and VGA out at the RX end; the EDID name is fixed as: Transmitter;* * The transmission method uses 5GHz wireless transmission.* * Operating temperature: 0℃~40℃.* * Storage temperature: -20℃ to 60℃.* * Measured temperature: Room temperature at 34°C (with full-load operation), the maximum shell temperature is approximately 46°C.* * Driver Installation Driver-Free Usage* * Supported systems: Windows 11/10/8.1/8/7/XP; Linux; MAC OS;* * Other product accessories: 1x HDMI male-to-female cable, 2x USB A to C power supply cable 1.5 meters, 1x3.5mm male-to-female audio cable 1.5 meters.
