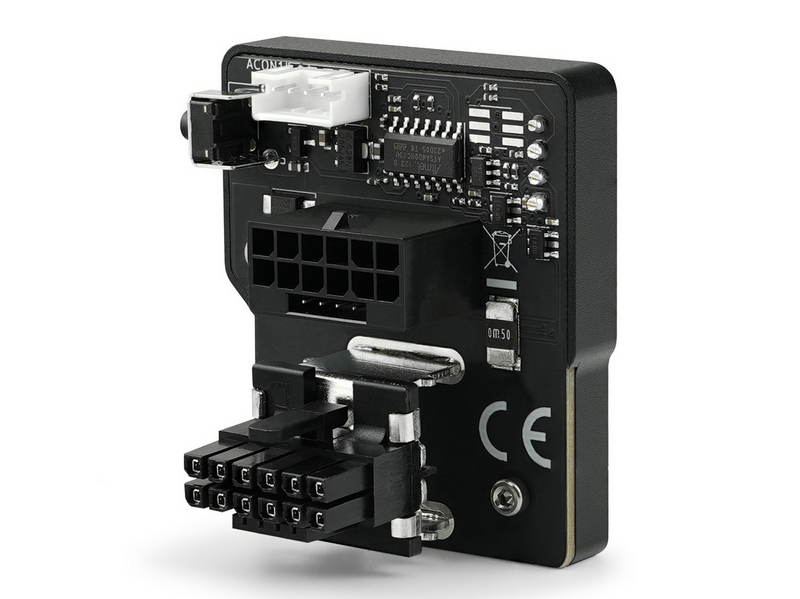

Thermal Grizzly WireView Pro GPU 1x12VHPWR Reverse
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
GPU power monitoring device measures and records graphics card power through the 12VHPWR connector, displays real-time watts/volts/amps on an OLED, detects connector type, monitors temperatures and issues an audible alarm for over-current, over-temperature or misconnected/incorrect cables.
Designed for in-line measurement, the WireView Pro GPU connects between the graphics card and the PSU to log power usage with a 60-second averaging mode and to detect power peaks and incorrect cable specifications.

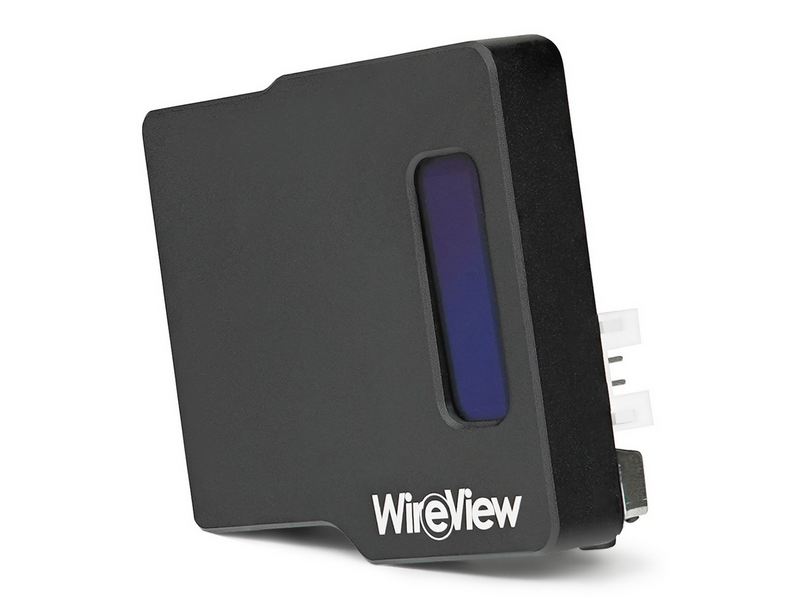

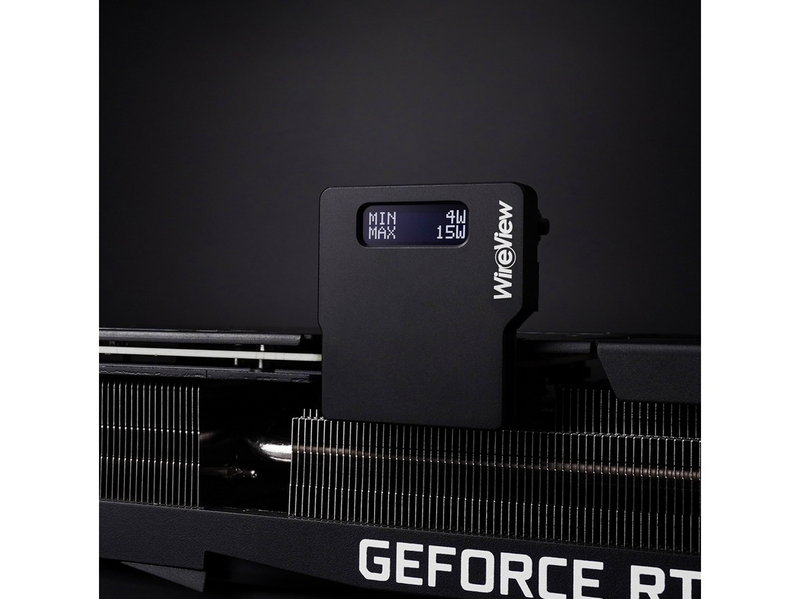

- OLED display showing current W, V, A, min/max, 60s average (RAVG) and total energy (Wh)
- Records power consumption for analysis and comparison, with a special 60-second measurement cycle
- Connector detection for 150 W / 300 W / 450 W / 600 W specified cables

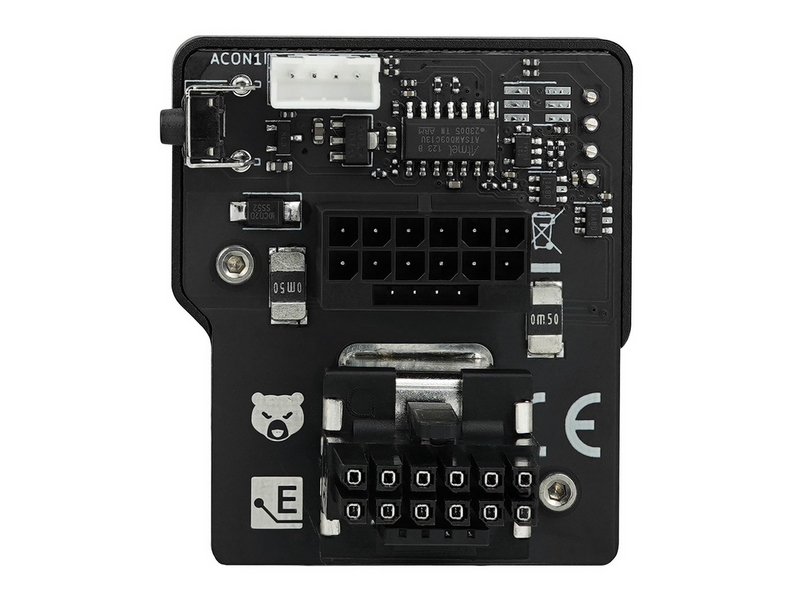

- Internal temperature sensors at the power connectors plus two external 10K NTC sensors (5 cm and 20 cm included)
- Audible buzzer with adjustable temperature and current limits; warns on incorrect or loose cable connections

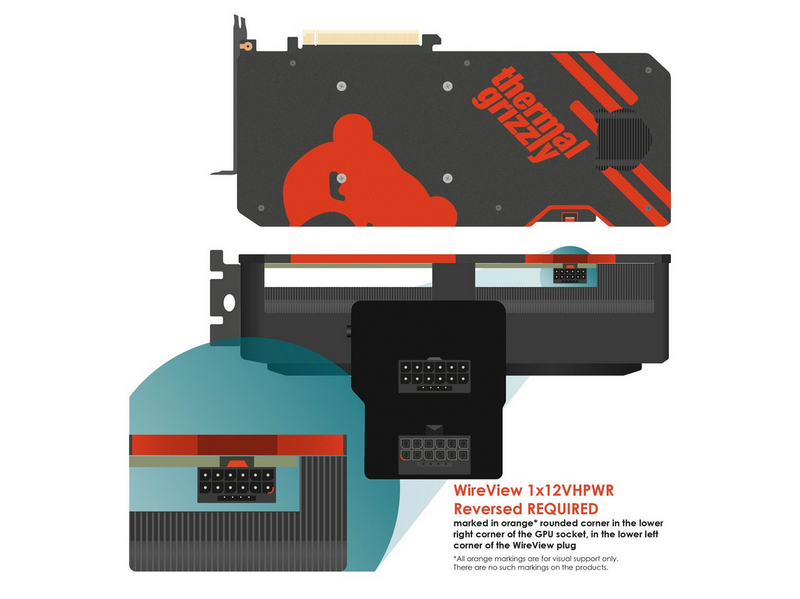

- Available in Normal and Reverse 12VHPWR orientations and connects to the PSU via the power cable
Be aware that the WireView PCB and connectors can become very hot during use—up to about 60°C with air-cooled cards and up to 100°C with water-cooled cards without airflow—so allow it to cool before handling.
Generell
| Hersteller | Thermal Grizzly |
| Waren-Nr. | 3352590 |
| Modell | TG-WV-P-H1R |
| EAN | 4260711991066 |
| Kompatibler Gehäusetyp | Universal |
| Typ | GPU-Bausatz |
| Material | Aluminium |
| Produktfarbe | Schwarz |
| Leichte Entfernbarkeit | Ja |
| Einfache Installation | Ja |
| Breite | 43 mm |
| Tiefe | 33 mm |
| Höhe | 52 mm |
| Gewicht | 39 g |
| Menge pro Packung | 1 StĂĽck(e) |
| Verpackungsbreite | 150 mm |
| Verpackungstiefe | 35 mm |
| Verpackungshöhe | 210 mm |
| Paketgewicht | 70 g |
| Verpackungsart | Box |
Technische Daten
| Merkmale | |
| Kompatibler Gehäusetyp | Universal |
| Typ | GPU-Bausatz |
| Material | Aluminium |
| Produktfarbe | Schwarz |
| Leichte Entfernbarkeit | Ja |
| Einfache Installation | Ja |
| Gewicht und Abmessungen | |
| Breite | 43 mm |
| Tiefe | 33 mm |
| Höhe | 52 mm |
| Gewicht | 39 g |
| Verpackungsdaten | |
| Menge pro Packung | 1 StĂĽck(e) |
| Verpackungsbreite | 150 mm |
| Verpackungstiefe | 35 mm |
| Verpackungshöhe | 210 mm |
| Paketgewicht | 70 g |
| Verpackungsart | Box |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
