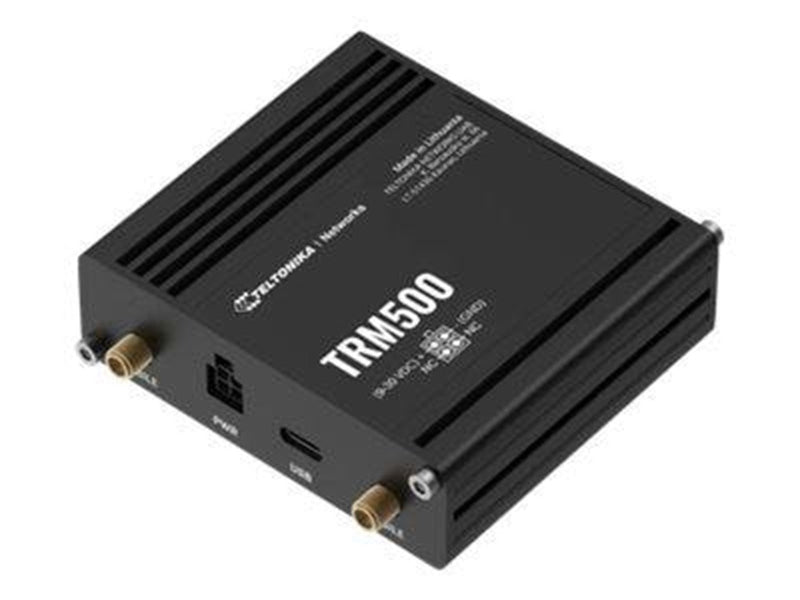

Teltonika TRM500 - wireless router - WWAN - LTE - 5G 4G 3G - DIN rail mountable wall-mountable surface-mountable - Wireless rout
Original price
âŹ1.450,13
-
Original price
âŹ1.450,13
Original price
âŹ1.450,13
âŹ1.450,13
-
âŹ1.450,13
Current price
âŹ1.450,13
Availability:
In stock
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Teltonika TRM500 is designed to provide robust and reliable mobile broadband connectivity. With support for multiple cellular protocols including UMTS, FDD LTE, TDD LTE, and 5G NR, this wireless cellular modem ensures high-speed Internet access capable of reaching up to 3.4 Gbps. Its versatile design allows for DIN rail, wall, or surface mounting, making it adaptable for various installation scenarios. The IP30 rating and wide operating temperature range of -40°C to 75°C ensure that it can perform in diverse environmental conditions. In addition to its high-speed capabilities, the TRM500 features 2x2 MIMO and 4x4 MIMO technology to enhance signal reliability and performance. The external detachable antennas allow for customization based on specific needs or environments. This modem is compliant with multiple standards, including FCC and EN tests, ensuring safety and operational longevity. Its resilient construction and varied connectivity options make the TRM500 an effective solution for any demanding mobile broadband application.
| Generell | |
| Hersteller: | Teltonika |
| Waren-Nr.: | 3349912 |
| Modell: | TRM5 |
| EAN: | 4779051841455 |
| Produktbeschreibung: | Teltonika TRM500 - Wireless Router - WWAN - LTE - 5G, 4G, 3G - an DIN-Schiene montierbar, wandmontierbar, oberflÀchenmontierbar |
| GerÀtetyp: | Wireless Router - drahtloses Mobilfunkmodem |
| GehÀusetyp: | An DIN-Schiene montierbar, wandmontierbar, oberflÀchenmontierbar |
| Zellprotokoll: | 5G Sub-6 Ghz, FDD LTE, 5G NR, TDD LTE, UMTS |
| Generation: | 5G, 4G, 3G |
| Mobilfunk-Frequenzband: | 5G n1, 5G n3, 5G n5, 5G n7, 5G n8, 5G n20, 5G n28, 5G n38, 5G n40, 5G n41, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B71, UMTS B1, UMTS B5, UMTS B8 |
| Data Link Protocol: | 5G, LTE |
| DatenĂŒbertragungsrate: | 3.4 Gbps |
| Leistung: | 5G NSA Upload: 550 Mbit/s 5G NSA-Downstream: 3,4 Gbit/s 5G SA-Upload: 900 Mbit/s 5G SA Download: 2,4 Gbit/s |
| Leistungsmerkmale: | 4x4 MIMO-Technologie, 2x2 MIMO-Technologie, 3GPP Release 16, GehÀuse aus eloxiertem Aluminium |
| Abmessungen (Breite x Tiefe x Höhe): | 8.3 cm x 8.54 cm x 2.5 cm |
| Gewicht: | 94.5 g |
| Systemanforderungen: | Android 4.0 oder höher, Linux 2.6 oder höher, Microsoft Windows 7 / 8.1 / 10 / 11 |
| Lokalisierung: | Europa |
| Allgemein | |
| GerÀtetyp: | Wireless Router |
| GehÀusetyp: | An DIN-Schiene montierbar, wandmontierbar, oberflÀchenmontierbar |
| Anschlusstechnik: | Kabelgebunden, kabellos |
| Data Link Protocol: | 5G, LTE |
| DatenĂŒbertragungsrate: | 3.4 Gbps |
| Leistung: | 5G NSA Upload: 550 Mbit/s 5G NSA-Downstream: 3,4 Gbit/s 5G SA-Upload: 900 Mbit/s 5G SA Download: 2,4 Gbit/s |
| Leistungsmerkmale: | 4x4 MIMO-Technologie, 2x2 MIMO-Technologie, 3GPP Release 16, GehÀuse aus eloxiertem Aluminium |
| Produktzertifizierungen: | IP30, UKCA, RCM, CB, WEEE, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-52 V1.2.1, AS/NZS CISPR 32:2015 + A1:2020 Class A, EN 61000-4-2:2009, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61:2020, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 301 908-25 V15.1.1, AS/CA S042.1:2022, AS/CA S042.4:2022, AS/CA S042.5:2022+A1:2022, FCC Part 22, Draft EN 301 908-25 V0.0.3, EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020 |
| Statusanzeiger: | Stromversorgung, 5G, Netzwerk |
| Kommunikationsformen | |
| Typ: | Drahtloses Mobilfunkmodem |
| Zellprotokoll: | 5G Sub-6 Ghz, FDD LTE, 5G NR, TDD LTE, UMTS |
| Generation: | 5G, 4G, 3G |
| Mobilfunk-Frequenzband: | 5G n1, 5G n3, 5G n5, 5G n7, 5G n8, 5G n20, 5G n28, 5G n38, 5G n40, 5G n41, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B71, UMTS B1, UMTS B5, UMTS B8 |
| Max. DatenĂŒbertragungsrate: | 3.4 Gbps |
| Erweiterung/KonnektivitÀt | |
| Schnittstellen: | USB: 1 x 24 pin USB-C Antenne: 4 x SMA |
| ErweiterungssteckplÀtze: | 1 (gesamt)/ 1 (frei) x Mini-SIM |
| Antenne | |
| Antenne: | Extern abnehmbar |
| Antennenzahl: | 4 |
| Stromversorgung | |
| StromversorgungsgerÀt: | Externer Netzadapter - 9 Watt |
| Verschiedenes | |
| Zubehör im Lieferumfang: | 4 Mobilfunkantennen, InbusschlĂŒssel, SIM-Karten-Adapterkit |
| Enthaltene Kabel: | 1 x USB-C Kabel - 80 cm |
| Lokalisierung: | Europa |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | Android 4.0 oder höher, Linux 2.6 oder höher, Microsoft Windows 7 / 8.1 / 10 / 11 |
| MaĂe und Gewicht | |
| Breite: | 8.3 cm |
| Tiefe: | 8.54 cm |
| Höhe: | 2.5 cm |
| Gewicht: | 94.5 g |
| Abmessungen & Gewicht (Transport) | |
| Transportbreite: | 35.5 cm |
| Transporttiefe: | 17.5 cm |
| Transporthöhe: | 6 cm |
