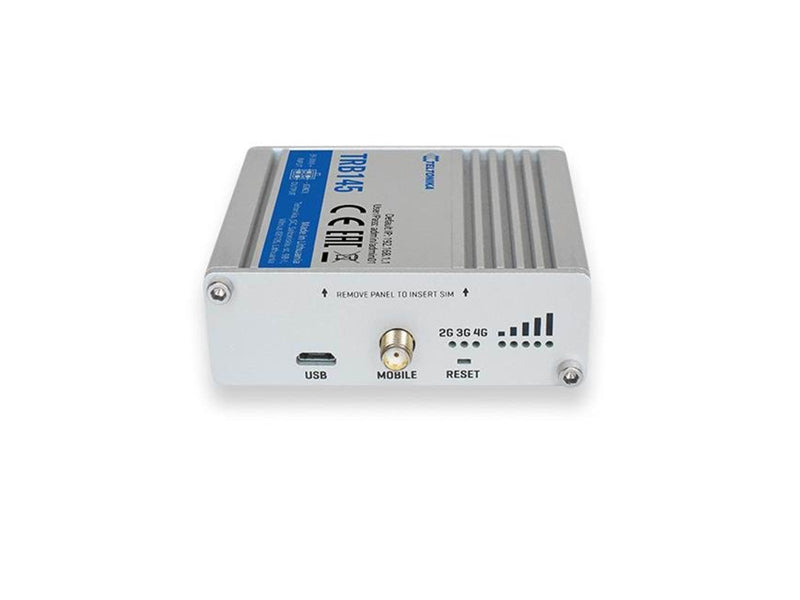

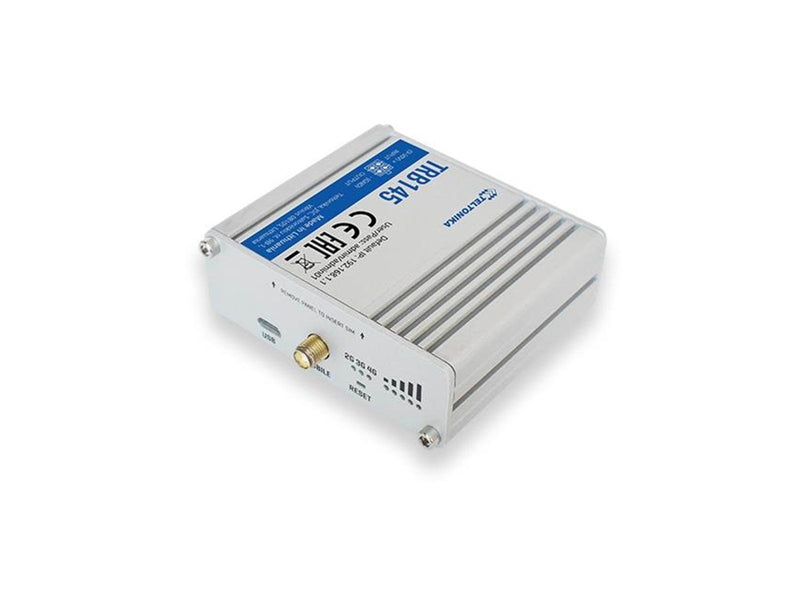

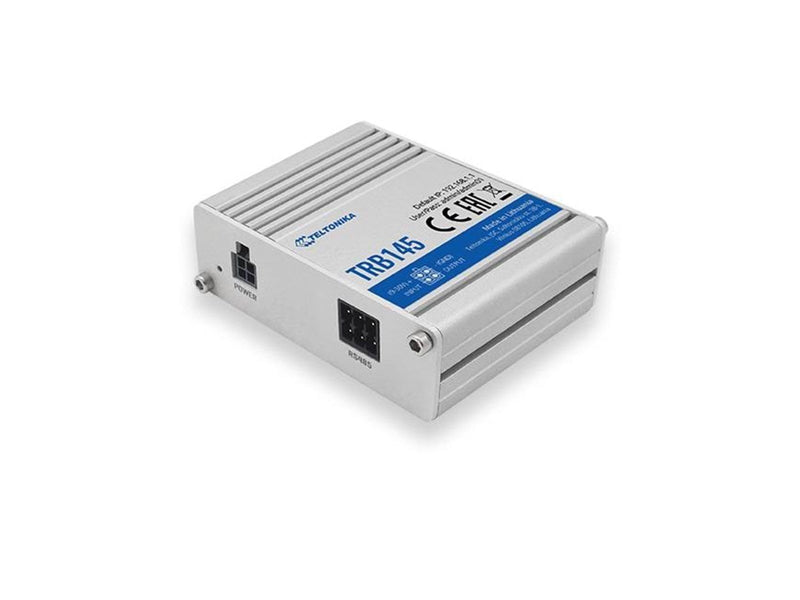

Teltonika TRB145 Industrial Rugged LTE RS485 Gateway
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Compact design and easy installation make this gateway perfect for applications, where a sole gadget must be remotely controlled over the RS485 serial interface.
Just like the rest of TRB products, TRB145 is engineered to be used in industrial applications. Therefore, it has a wide range of software features, such as SMS control, Firewall, Open VPN, IPsec, Teltonika Networks Remote Management System (RMS), and FOTA support.
| Generell | |
| Hersteller: | Teltonika |
| Waren-Nr.: | 3107418 |
| Modell: | TRB145003000 |
| EAN: | 4779027312415 |
| Produktbeschreibung: | Teltonika TRB145 - Gateway |
| Gerätetyp: | Gateway |
| Formfaktor: | Extern |
| Prozessor: | 1 x ARM Cortex-A7 1.2 GHz |
| RAM: | 128 MB |
| Flash-Speicher: | 512 MB |
| Kapazität: | VPN-Tunnel: 5 |
| Mobiler Breitbandzugriff: | Ja |
| Zellprotokoll: | LTE |
| Stromversorgung: | DC 9 - 30 V |
| Abmessungen (Breite x Tiefe x Höhe): | 7 cm x 1.8 cm x 6 cm |
| Gewicht: | 130 g |
| Allgemein | |
| Gerätetyp: | Gateway |
| Breite: | 7 cm |
| Tiefe: | 1.8 cm |
| Höhe: | 6 cm |
| Gewicht: | 130 g |
| Prozessor / Arbeitsspeicher / Speicherkapazität | |
| Installierte Prozessoren: | 1 x ARM Cortex-A7 1.2 GHz |
| Max. unterstĂĽtzte Anzahl: | 1 |
| RAM: | 128 MB |
| Flash-Speicher: | 512 MB |
| Netzwerk | |
| Formfaktor: | Extern |
| Anschlusstechnik: | Kabelgebunden |
| Netzwerk/Transportprotokoll: | TCP/IP, UDP/IP, NTP, ICMP/IP, DHCP, DNS, DDNS, IPv4, IPv6 |
| Routing Protocol: | GRE |
| Remoteverwaltungsprotokoll: | SNMP, HTTP, HTTPS, SSH, SSH-2, CLI, Modbus, MQTT |
| Kapazität: | VPN-Tunnel: 5 |
| Statusanzeiger: | Stromversorgung, Status, Verbindungsstatus |
| Leistungsmerkmale: | Firewall, NAT Support, Interrupt Status Port (ISP), Firmware aktualisierbar, Port-Weiterleitung, GRE-Tunneling, statisches Routing, Teltonika Remote Management System (RMS) |
| VerschlĂĽsselungsalgorithmus: | DES, Dreifach DES, RC2, CAST5, IKE, SSL, TLS, 128-Bit AES, 192-Bit AES, 256-Bit-AES, IKEv2 |
| Kommunikationsformen | |
| Mobiler Breitbandzugriff: | Ja |
| Zellprotokoll: | LTE |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze: | 1 (gesamt)/ 1 (frei) x SIM-Karte |
| Schnittstellen: | 1 x RS-485 2 x Digital Eingang/Ausgang 1 x USB 1 x Antenne - SMA |
| Verschiedenes | |
| Kennzeichnung: | RoHS, WEEE, X.509, IP30, EAC, EN 61000-4-2:2009, EN 61:2004, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-4-5:2014, ETSI EN 301-489-1 V2.2.0, RED, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 489-52 V1.1.0, EN 301 489-19 V2.1.0, EN 61000-4-4:2012, EN 300-511 V12.5.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2, EN 50385:2017, EN 62232:2017 |
| Stromversorgung | |
| Erforderliche Netzspannung: | DC 9 - 30 V |
| Leistungsaufnahme im Betrieb: | 5 Watt |
| Software / Systemanforderungen | |
| Bereitgestelltes Betriebssystem: | RutOS |
