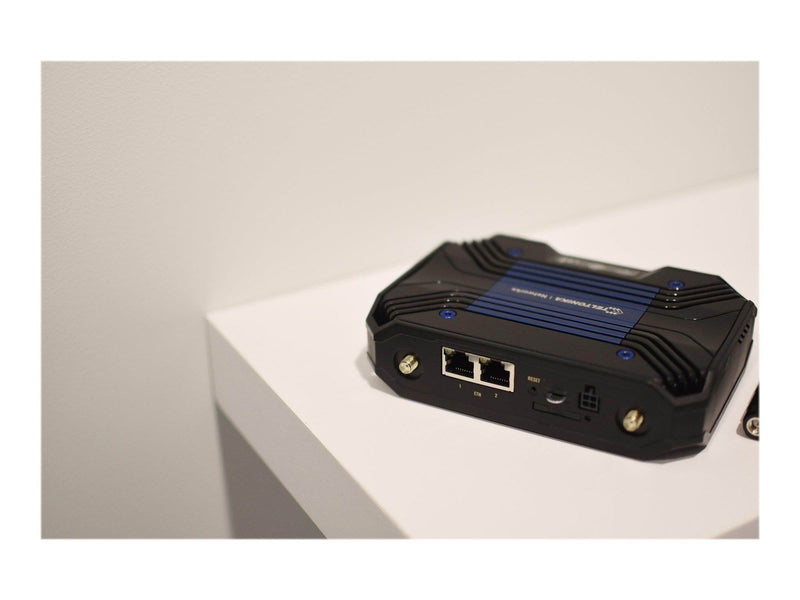

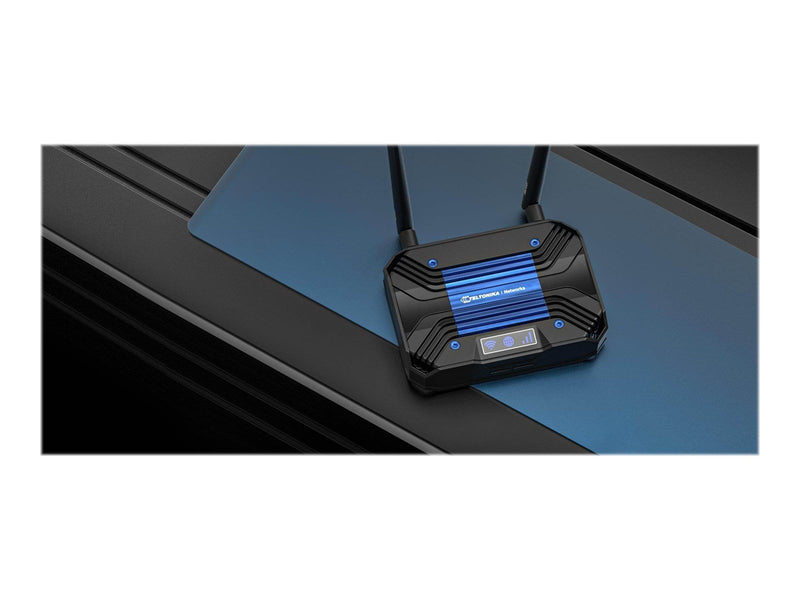

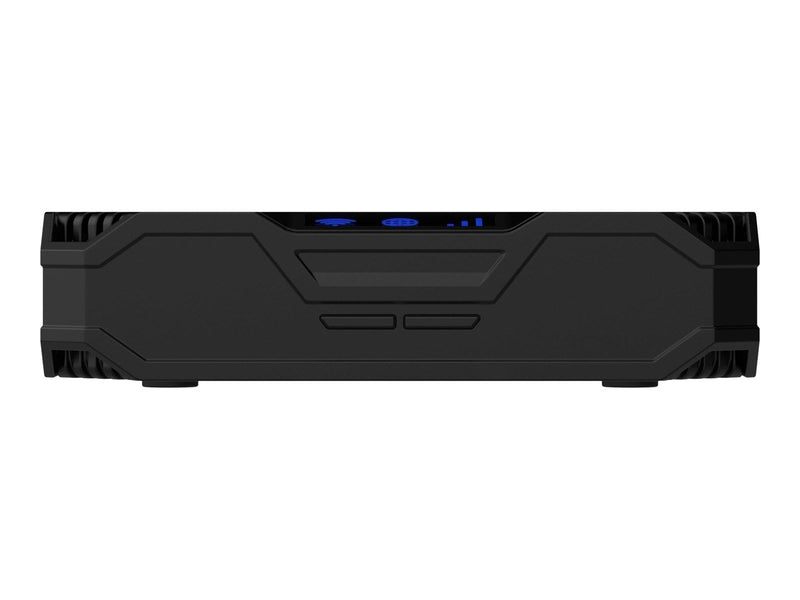

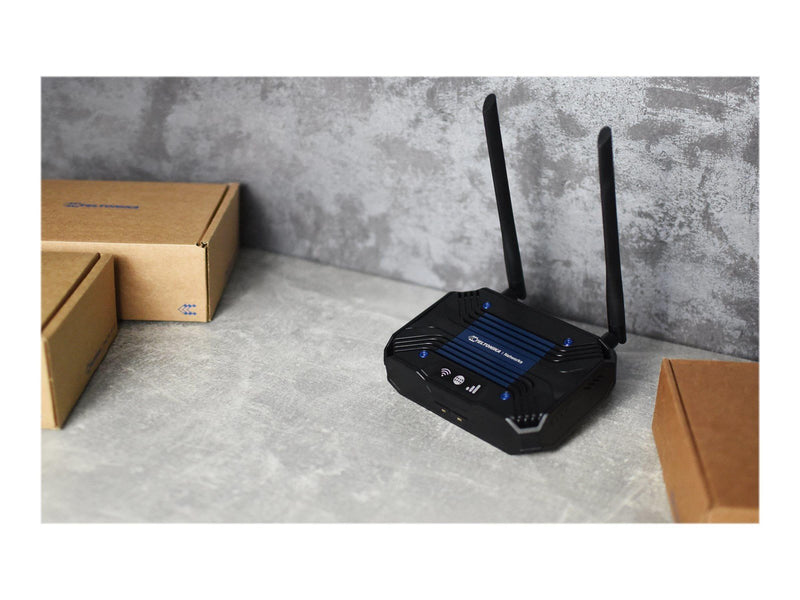

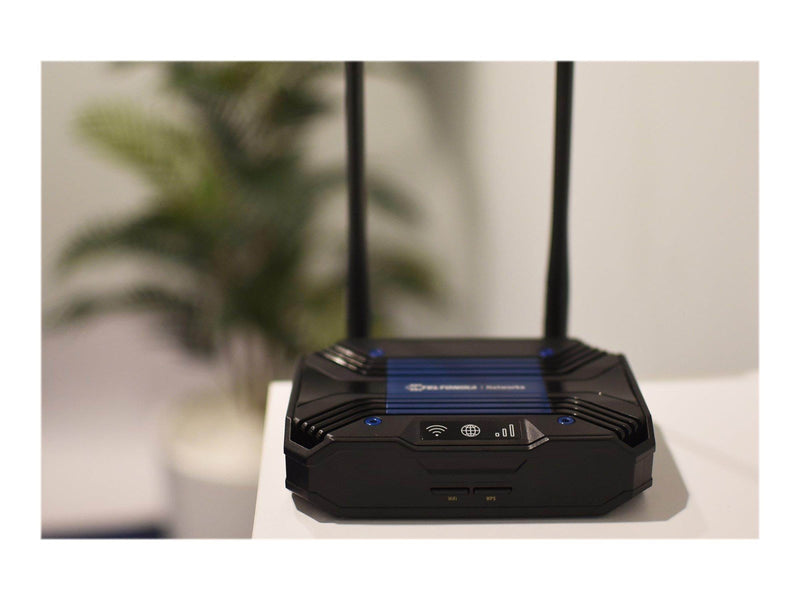

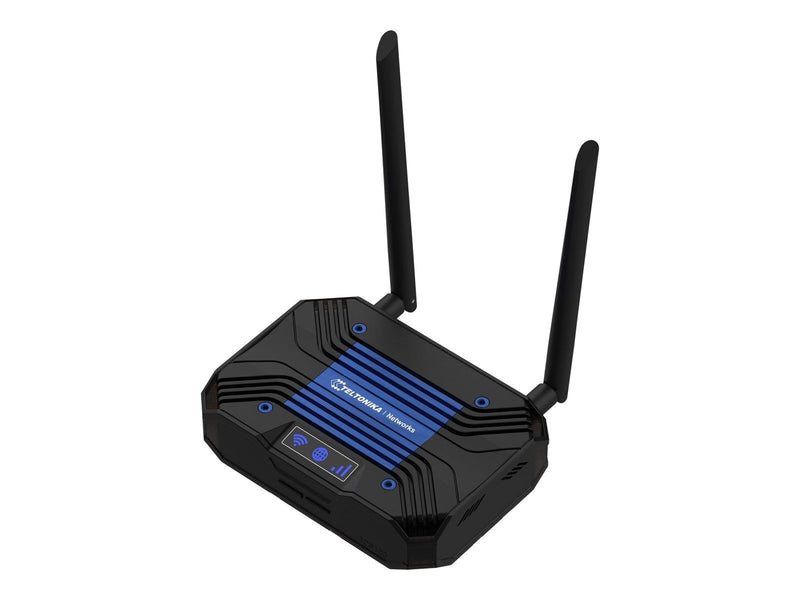

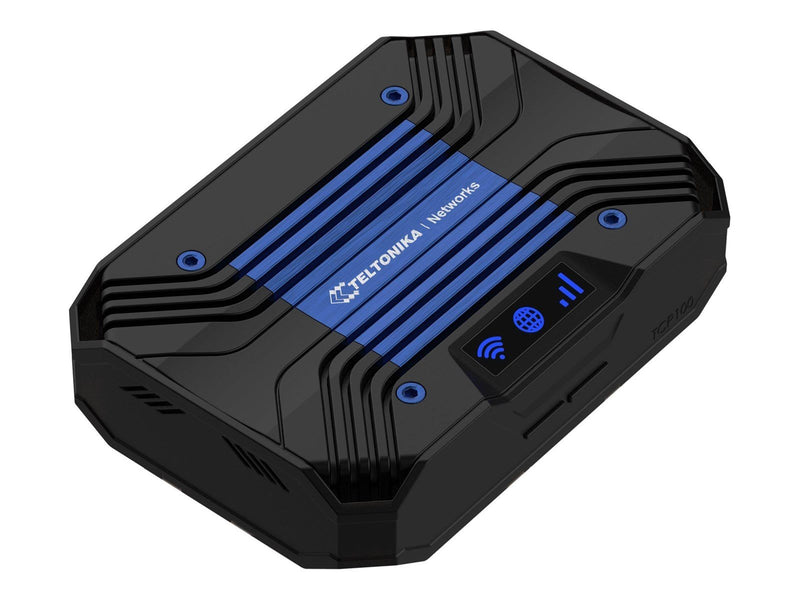

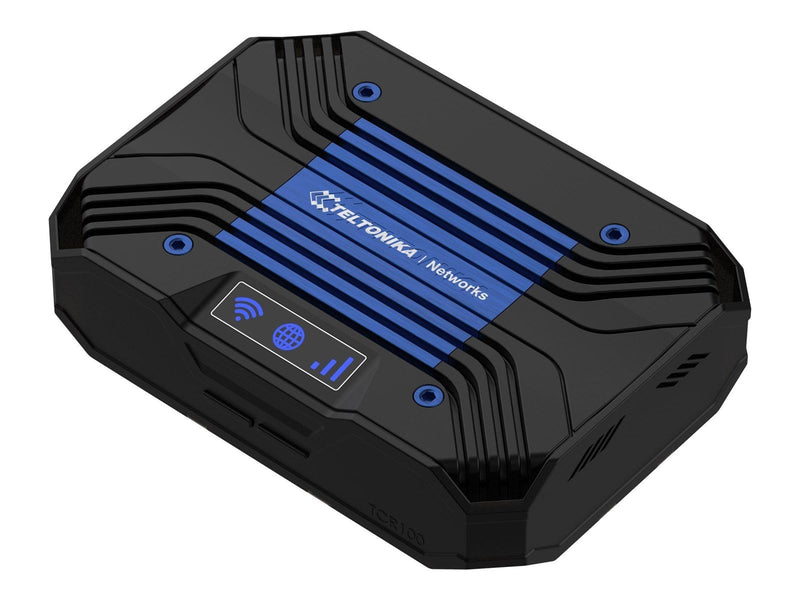

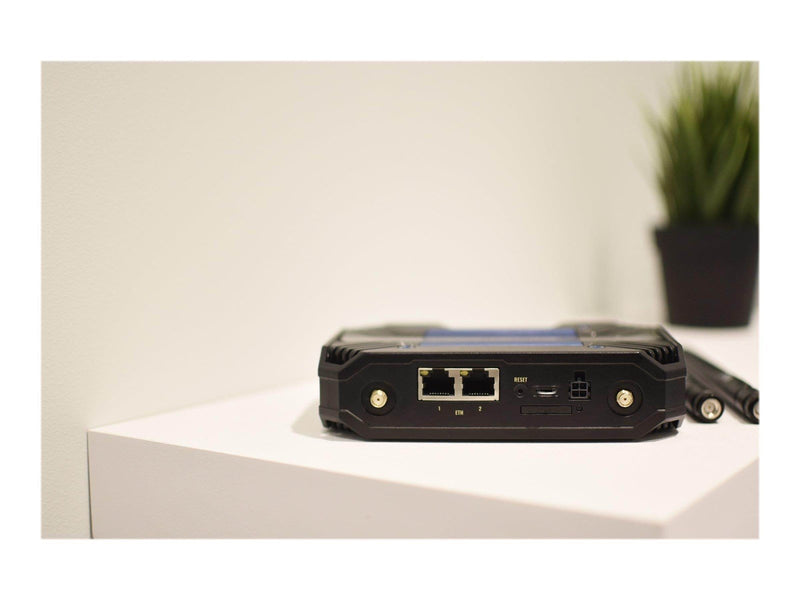

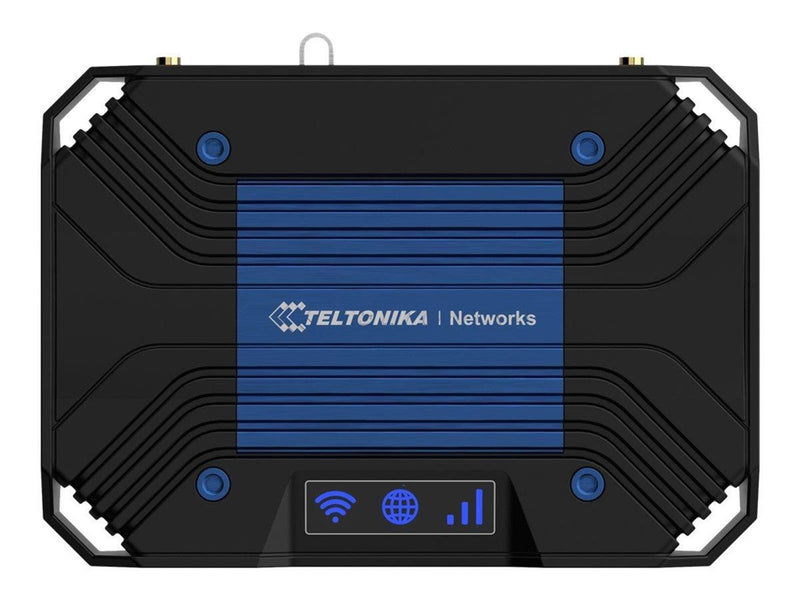

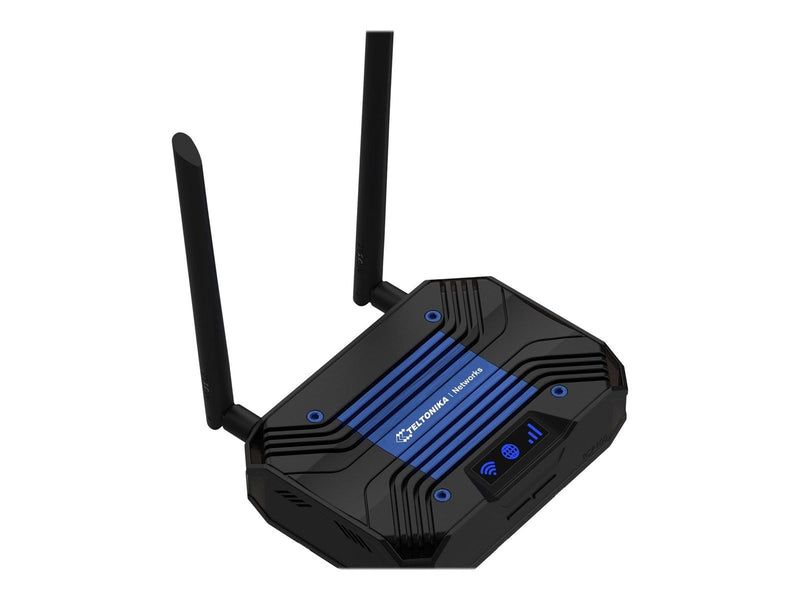

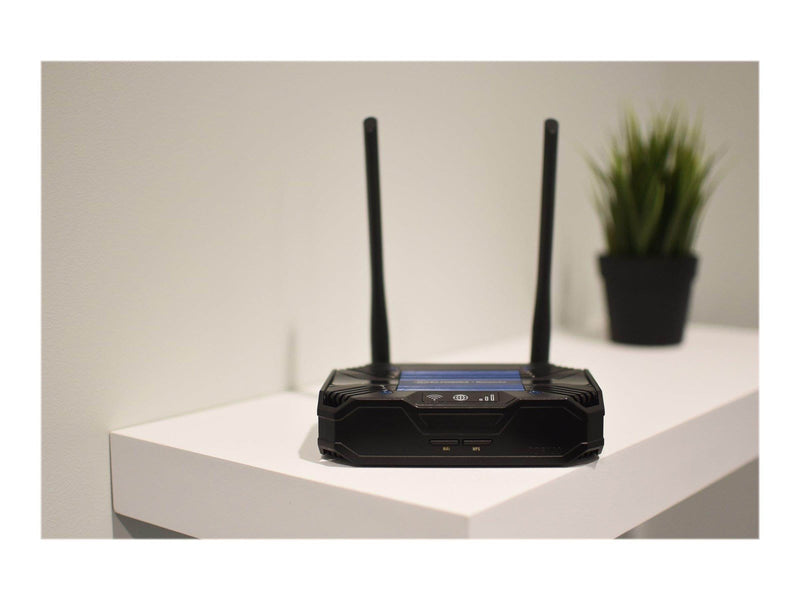

Teltonika TCR100 - wireless router - WWAN - 802.11a/b/g/n/ac - 3G 4G - desktop surface-mountable - Wireless router Wi-Fi 5
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | Teltonika |
| Waren-Nr.: | 3057144 |
| Modell: | TCR1 |
| EAN: | 4779027312811 |
| Produktbeschreibung: | Teltonika TCR100 - Wireless Router - WWAN - Wi-Fi 5 - 3G, 4G - Desktop, oberflÀchenmontierbar |
| GerÀtetyp: | Wireless Router - drahtloses Mobilfunkmodem |
| GehÀusetyp: | Desktop, oberflÀchenmontierbar |
| Zellprotokoll: | GSM, FDD LTE, TDD LTE |
| Generation: | 3G, 4G |
| Mobilfunk-Frequenzband: | LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B28, LTE B8, LTE B40, LTE B41, LTE B32 |
| WAN-Ports Anz.: | 1 |
| Data Link Protocol: | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequenzband: | 2,4 GHZ / 5 GHz |
| Netzwerk/Transportprotokoll: | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, FTP, DHCP, DNS, DDNS, HTTP, HTTPs, IPv4, IPv6, Telnet |
| Remoteverwaltungsprotokoll: | SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, SSH-2, TR-069, JSON-RPC, Modbus, MQTT |
| Leistungsmerkmale: | VPN-Support, Lastenausgleich, WOL, Auto-Uplink (Auto MDI/MDI-X), WMM-UnterstĂŒtzung, QoS, Reset-Taste, DHCP-Relais, Systemprotokoll, OpenVPN Client, OpenVPN-Server |
| Produktzertifizierungen: | IEEE 802.3, IEEE 802.3u, IEEE 802.11e, IEEE 802.11r, IEEE 802.11s |
| Stromversorgung: | DC 9 - 30 V |
| Abmessungen (Breite x Tiefe x Höhe): | 15 cm x 10.5 cm x 3.7 cm |
| Gewicht: | 376 g |
| Lokalisierung: | Malaysia, Mittlerer Osten, Afrika, Brasilien, Europa, Asien-Pazifik (ohne Japan) |
| Allgemein | |
| GerÀtetyp: | Wireless Router |
| GehÀusetyp: | Desktop, oberflÀchenmontierbar |
| Anschlusstechnik: | Kabellos, kabelgebunden |
| Data Link Protocol: | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequenzband: | 2,4 GHZ / 5 GHz |
| Netzwerk/Transportprotokoll: | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, FTP, DHCP, DNS, DDNS, HTTP, HTTPs, IPv4, IPv6, Telnet |
| Remoteverwaltungsprotokoll: | SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, SSH-2, TR-069, JSON-RPC, Modbus, MQTT |
| VerschlĂŒsselungsalgorithmus: | DES, Dreifach DES, TKIP, AES-CCMP, 128-Bit AES, 192-Bit AES, 256-Bit-AES, WPA2-PSK, WPA2-Enterprise, IKEv2, WEP, IKEv1, WPA3-SAE, WPA3-EAP |
| Authentifizierungsmethode: | Secure Shell (SSH), RADIUS, X.509-Zertifikate, Radio Service Set ID (SSID), Secure Shell v.2 (SSH2) |
| Leistungsmerkmale: | VPN-Support, Lastenausgleich, WOL, Auto-Uplink (Auto MDI/MDI-X), WMM-UnterstĂŒtzung, QoS, Reset-Taste, DHCP-Relais, Systemprotokoll, OpenVPN Client, OpenVPN-Server |
| Produktzertifizierungen: | IEEE 802.3, IEEE 802.3u, IEEE 802.11e, IEEE 802.11r, IEEE 802.11s |
| Prozessor: | 1 x MIPS 24KC QCA9531 650 MHz |
| RAM: | 128 MB DDR2 SDRAM |
| Flash-Speicher: | 16 MB |
| Statusanzeiger: | Status, LAN, Wi-Fi |
| Kommunikationsformen | |
| Typ: | Drahtloses Mobilfunkmodem |
| Zellprotokoll: | GSM, FDD LTE, TDD LTE |
| Generation: | 3G, 4G |
| Mobilfunk-Frequenzband: | LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B28, LTE B8, LTE B40, LTE B41, LTE B32 |
| Max. DatenĂŒbertragungsrate: | 300 Mbps |
| Erweiterung/KonnektivitÀt | |

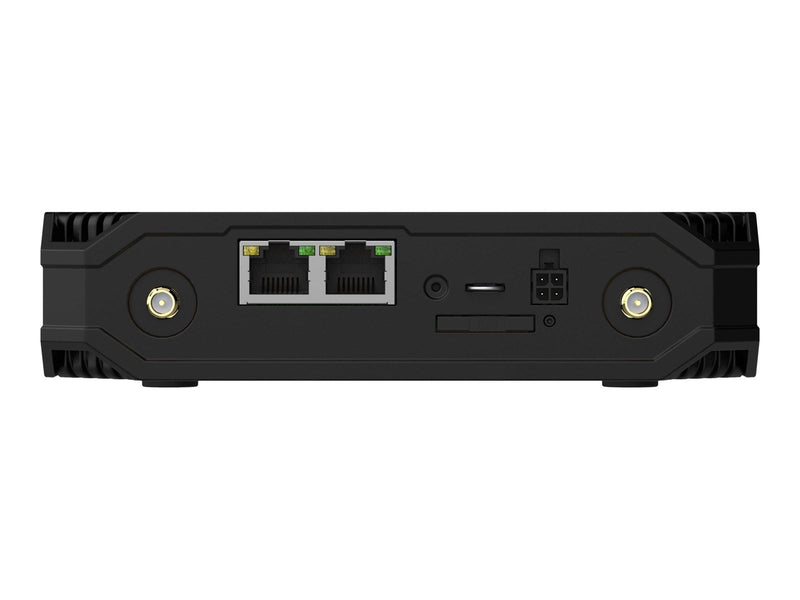

| Schnittstellen: | LAN: 1 x 10Base-T/100Base-TX - RJ-45 WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45 Antenne: 2 x SMA |
| ErweiterungssteckplÀtze: | 1 (gesamt)/ 1 (frei) x SIM |
| Antenne | |
| Antenne: | Extern und intern |
| Antennenzahl: | 5 |
| Stromversorgung | |
| StromversorgungsgerÀt: | Externer Netzadapter - 18 Watt |
| Erforderliche Netzspannung: | DC 9 - 30 V |
| Leistungsaufnahme im Betrieb: | 3.7 Watt |
| Verschiedenes | |
| Zubehör im Lieferumfang: | 2 x LTE-Antennen, SIM-Karten-Adapterkit |
| Enthaltene Kabel: | 1 x Netzwerkkabel - 1.5 m |
| Lokalisierung: | Malaysia, Mittlerer Osten, Afrika, Brasilien, Europa, Asien-Pazifik (ohne Japan) |
| MaĂe und Gewicht | |
| Breite: | 15 cm |
| Tiefe: | 10.5 cm |
| Höhe: | 3.7 cm |
| Gewicht: | 376 g |
| Abmessungen & Gewicht (Transport) | |
| Transportbreite: | 17.3 cm |
| Transporttiefe: | 14.8 cm |
| Transporthöhe: | 7.1 cm |
