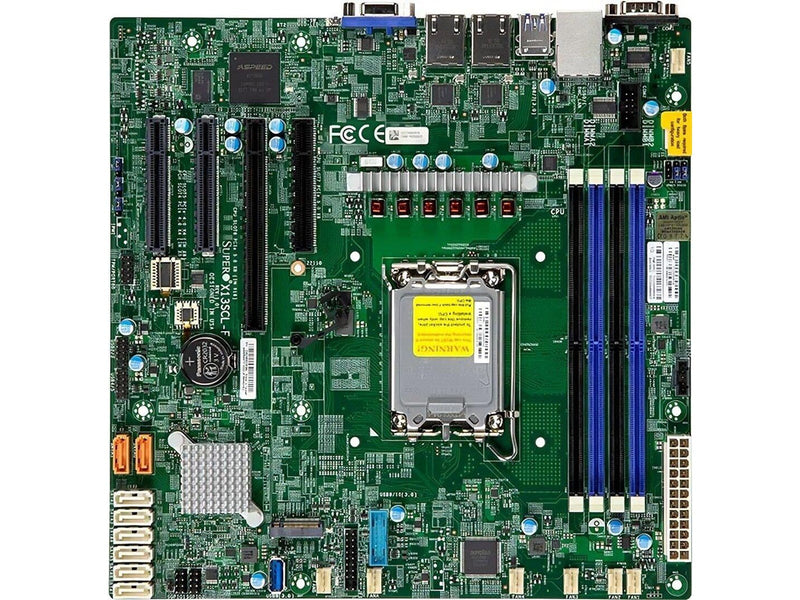

Supermicro X13SCL-F Mainboard - Intel C262 - Intel LGA1700 socket - DDR5 RAM - Micro-ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | Supermicro |
| Waren-Nr.: | 3269318 |
| Modell: | MBD-X13SCL-F-B |
| EAN: | 0672042899166 |
| Zum Hersteller:: | |
| Produktbeschreibung: | SUPERMICRO X13SCL-F - Motherboard - micro ATX - LGA1700-Sockel - C262 |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | Intel C262 |
| Prozessorsockel: | LGA1700-Sockel |
| Kompatible Prozessoren: | Xeon, Pentium (TDP max. 95 Watt) |
| Max. RAM-Größe: | 128 GB |
| Unterstütztes RAM: | 4 DIMM-Steckplätze - DDR5, ECC, ungepuffert |
| Massenspeicher-Schnittstellen: | 8 x SATA-600 (RAID), 1 x M.2 |
| USB-/FireWire-Anschlüsse: | 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste) |
| Grafik: | ASPEED AST2600 |
| LAN: | 2 x Gigabit Ethernet |
| Allgemein | |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | Intel C262 |
| Prozessorsockel: | LGA1700-Sockel |
| Kompatible Prozessoren: | Xeon, Pentium (TDP max. 95 Watt) |
| Unterstützter RAM | |
| Max. Größe: | 128 GB |
| Technologie: | DDR5 |
| Bustakt: | 4400 MHz, 4000 MHz, 3600 MHz |
| Unterstützte RAM-Integritätsprüfung: | ECC |
| Registriert oder gepuffert: | Ungepuffert |
| Grafik | |
| Grafik-Controller: | ASPEED AST2600 |
| LAN | |
| Netzwerkcontroller: | 2 x Intel I210 |
| Netzwerkschnittstellen: | 2 x Gigabit Ethernet |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze: | 1 x CPU 4 x DIMM 288-polig (1.1 V) 2 x PCIe 4.0 x4 (8x-Modus) 1 x PCIe 5.0 x8 1 x PCIe 5.0 x8 (x16-Modus) 1 x M.2 socket (2280/22.110 M.2 Key M Slot) |
| Speicherschnittstellen: | SATA-600 -anschlussstellen: 8 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -anschlussstellen: 1 x M.2 PCIe 5.0 -anschlussstellen: 2 PCIe 4.0 -anschlussstellen: 2 |
| Schnittstellen: | 1 x Seriell 1 x IPMI 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x VGA |
| Interne Schnittstellen: | 1 x USB 3.2 Gen 1 - Type A 2 x USB 3.2 Gen 1 - Stiftleiste 4 x USB 2.0 - Stiftleiste 1 x Seriell - Stiftleiste 1 x SPI - Stiftleiste |
| Stromanschlüsse: | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ: | AMI |
| BIOS-Funktionen: | UEFI BIOS, ACPI 6,4 Unterstützung, Unterstützung von SMBIOS 3,5, UEFI 2,8 Support, PCI FW 3,3 Support |
| Sleep / Wake up: | Wake-On-LAN (WOL) |
| Hardwarefeatures: | Trusted Platform Module (TPM) 2.0 |
