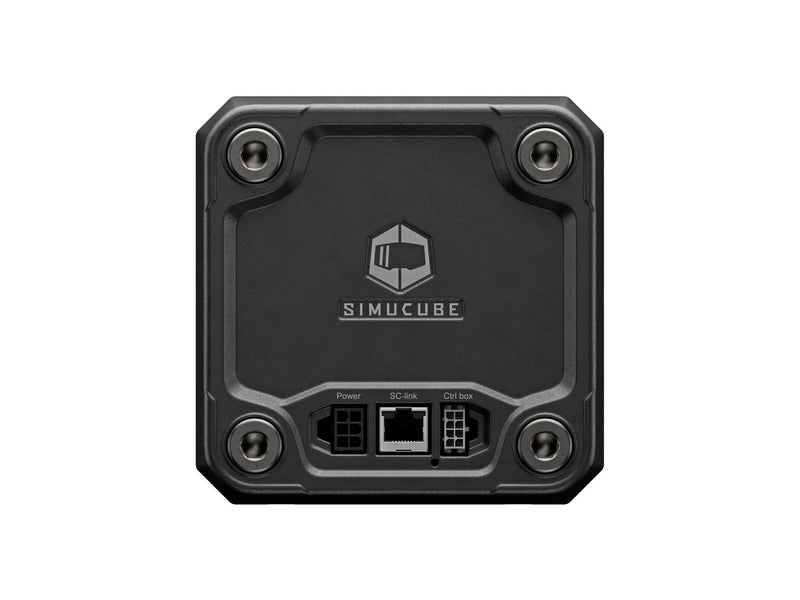

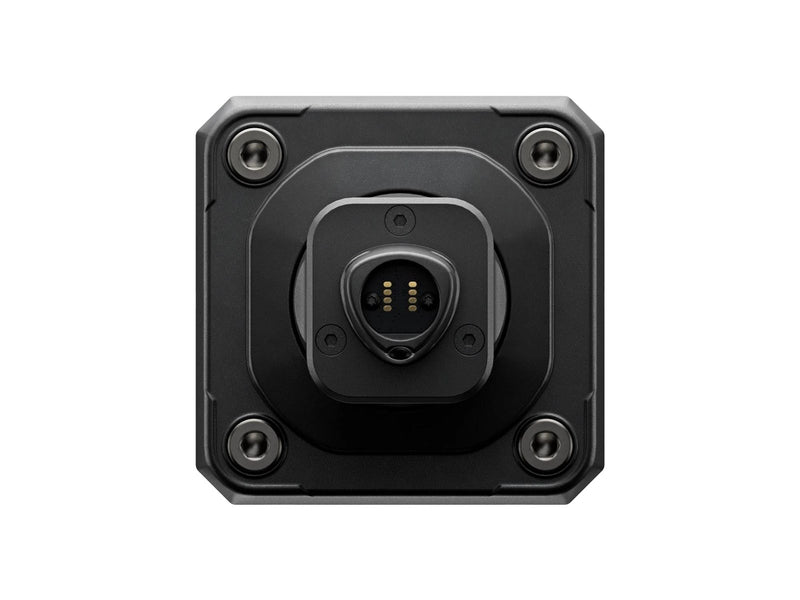

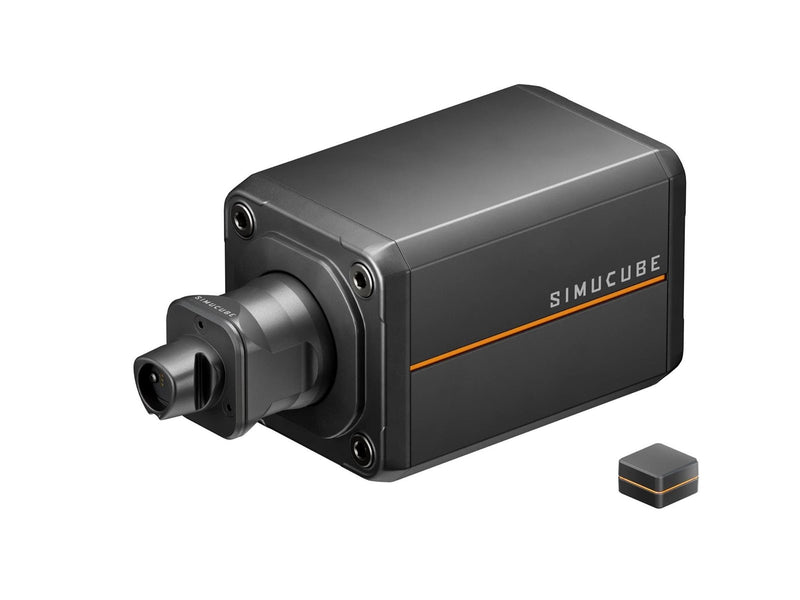

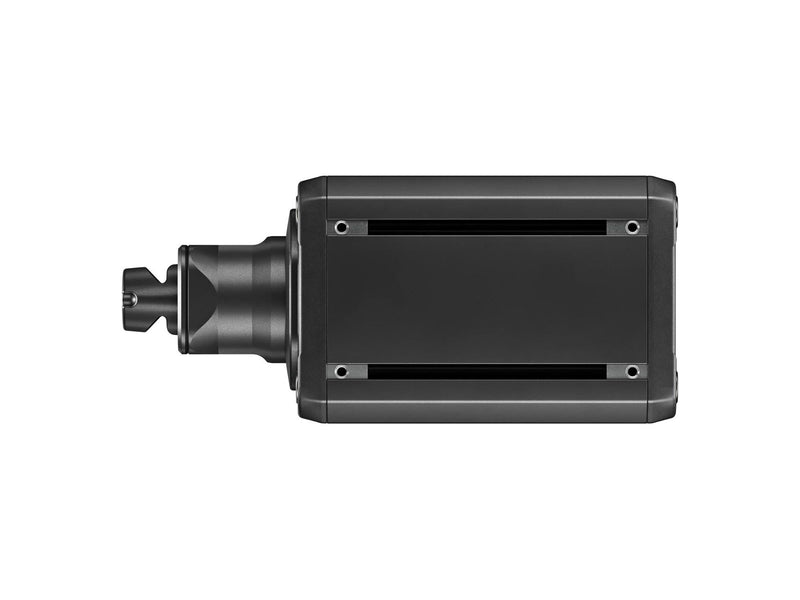

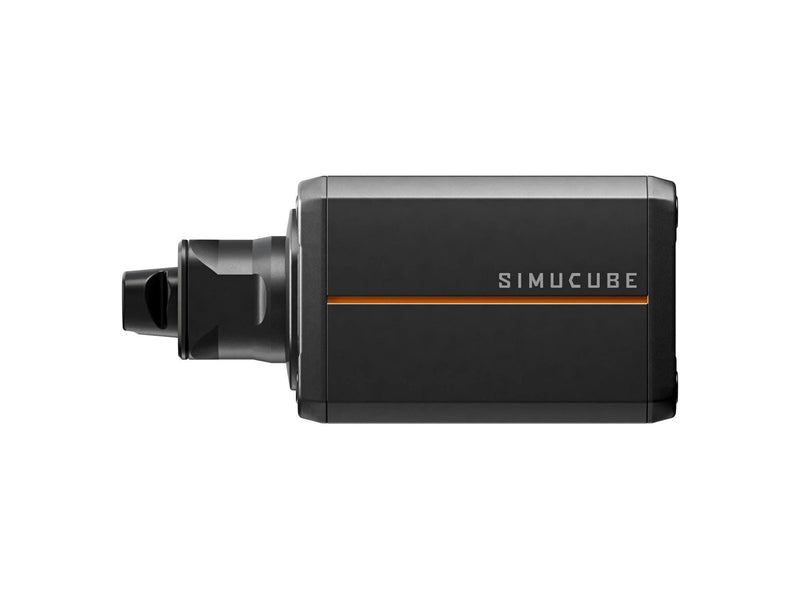

Simucube 3 Pro Wheel Base
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Simucube 3 Pro Wheel Base
Professional-grade precision and 25 Nm of smooth, ultra-detailed direct drive force feedback
Flagship Performance and Realism
- Precise, smooth, and powerful direct drive force feedback (25 Nm)
- Industrial-grade SPM servo motor engineered exclusively for Simucube
- Enhanced telemetry-based effects such as ABS, RPM, and road texture
- Re-engineered control algorithm for extreme accuracy and silent operation
- Front and bottom mounting for flexible installation
Built for Professional Racers
- Flagship direct drive base delivering true race car feel and control
- High-efficiency servo motor provides exceptional torque and smoothness
- Engineered for peak consistency and long-term durability
- Uncompromising realism — push to the limit, it never holds you back
Product Parameters
- Max Torque: 25 Nm
- Motor: High-response Direct Drive optimized SPM motor
- Angle Sensor: 23-bit absolute (8,000,000 steps)
- Mounting: Front and Bottom
- Warranty: 3 years
Technical Details
Dimensions
- Wheel Base: 135 × 135 × 303 mm
- Package Dimensions: 190 × 300 × 390 mm
- Mounting Hole Pattern DIA: 135 mm and 78.4 mm
- Flange Centering Feature DIA: 110 mm
- Weight: 11 kg
Specifications
- Motor Type: High-response Direct Drive optimized SPM motor
- Max Torque: 25 Nm
- Angle Sensor: 23-bit absolute (8,000,000 steps)
- Power Supply: 360 W (450 W peak)
- Warranty: 3 years
What’s Included?
- 1 × Simucube 3 Pro Wheel Base
- 1 × Power Adapter
- 1 × RJ45 Cable
- 1 × AC Power Cord
- 1 × Quick Start Guide
- 1 × Control Box
- Fasteners Kit:
- 4 × M8 Washer
- 4 × M6 Washer
- 2 × M5 Washer
- 4 × M8 × 35 Allen Head Bolt
- 4 × M8 × 30 Allen Head Bolt
- 2 × M5 × 30 Allen Head Bolt
- 4 × M6 × 16 Allen Head Bolt
- 2 × M5 T-slot Nut (8 mm slot)
- Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub
Compatibility
- Link Quick Release for Simucube 3
- One Simucube Link Hub is required to operate. If you do not own a Simucube Link Hub, please choose the option “Including Simucube Link”.
- For multiple Link Hub devices such as Simucube 3 and ActivePedals, please use the Teltonika Ethernet Switch.
Generell
| Hersteller | Simucube |
| Waren-Nr. | 3419475 |
| Modell | SC3PRO-EU-US |
| EAN | 6430082360480 |
| Zum Hersteller | www.simucube.com/ |
