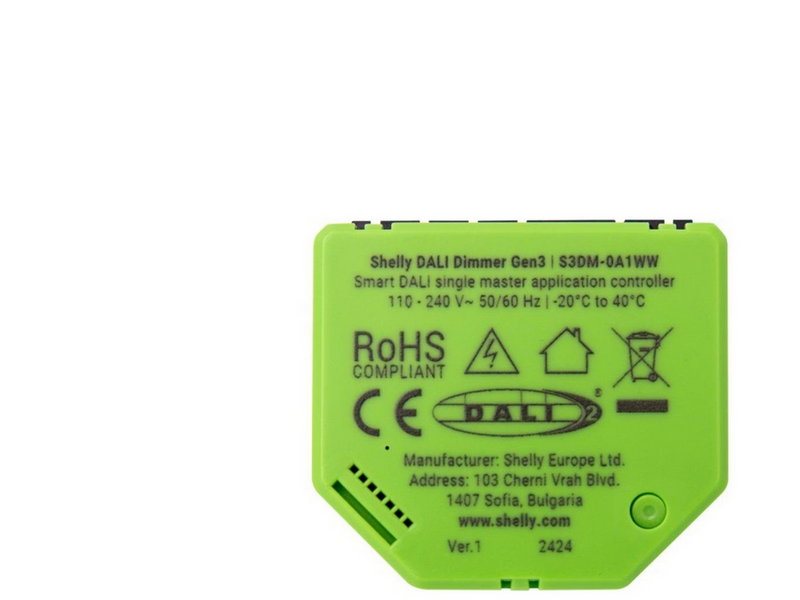

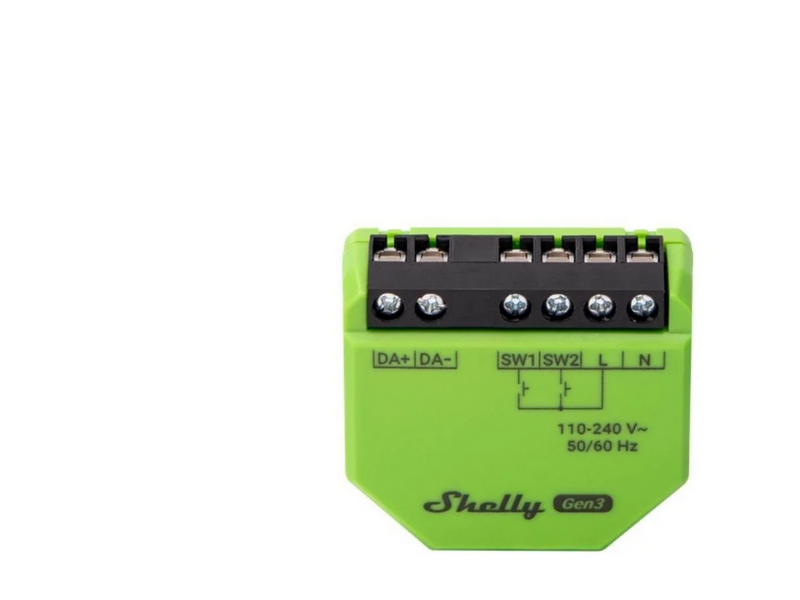

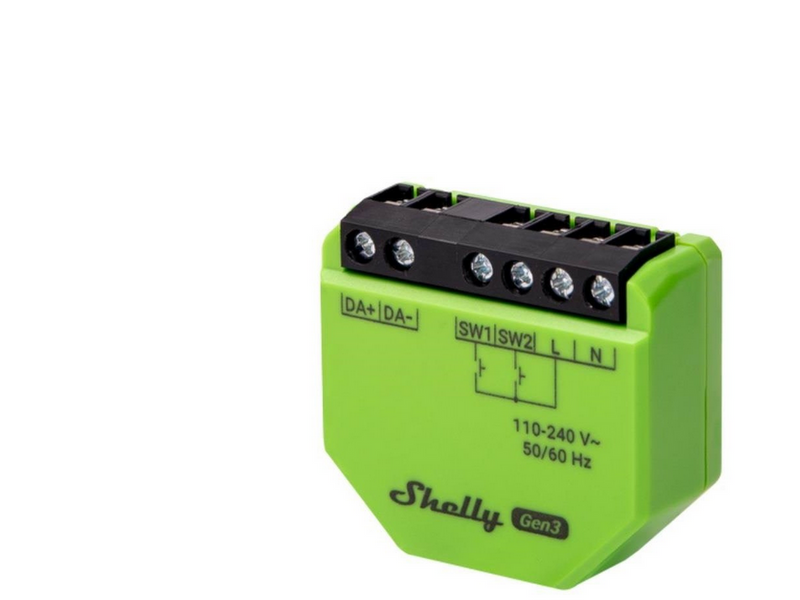

Shelly DALI Dimmer Gen3

WiFi-operated dimmer. Control a wide range of halogen lights, dimmable LED and ferromagnetic transformers from anywhere with the smallest WiFi-operated dimmer in the world – Shelly Dimmer2 working without a neutral line.Shelly DALI Dimmer Gen3 is probably the smallest DALI control unit on the market. The device is DALI-2 certified and has built-in WiFi and Bluetooth, providing entirely new possibilities for wireless DALI control. Shelly DALI Dimmer Gen3 is easily set up and controlled through the Shelly Smart Control app or your preferred smart home system. Shelly devices work 100% locally and only require a local network to operate. Shelly can be used alone in the Shelly Smart Control app or with more than 200 partner systems such as Google Home, Amazon Alexa, Home Assistant, Samsung SmartThings, Athom Homey, and many more. Function Shelly DALI Dimmer Gen3 is suitable for controlling lighting in private homes, offices, warehouses, and similar. It comes with a 10 mA power supply, which means it can supply approximately 5 DALI ballasts. If more fixtures need to be controlled, a DALI repeater from a third party can be used, or multiple Shelly DALI controllers can be installed, which can easily be grouped in the Shelly app. The device has two inputs for standard 230V single-pole switches with and without spring return, allowing control via one- and two-button operation. The device supports night mode, so the light can automatically turn on at a lower brightness level at night. It is also possible to set minimum brightness, dimming speed, auto on/off timers, and much more. Connection Shelly DALI Dimmer Gen3 can connect to the internet or the local network via 2.4 GHz WiFi. Additionally, the device has built-in Bluetooth like the rest of the Pro and Plus devices, so it can also be used as a gateway for Shelly Bluetooth battery-powered devices. All Shelly devices work locally without connection to Shelly Cloud, but it is recommended to activate it for easy data storage and increased functionality. The devices can also communicate via MQTT, HTTP, and WebSocket. All support TLS. Hardware The device is equipped with generation 3 hardware, which includes the powerful ESP-Shelly-C38F CPU with 8MB flash. This makes Shelly DALI Dimmer Gen3 future-proof and allows for scripting functions and virtual devices for advanced and customized functionality.
