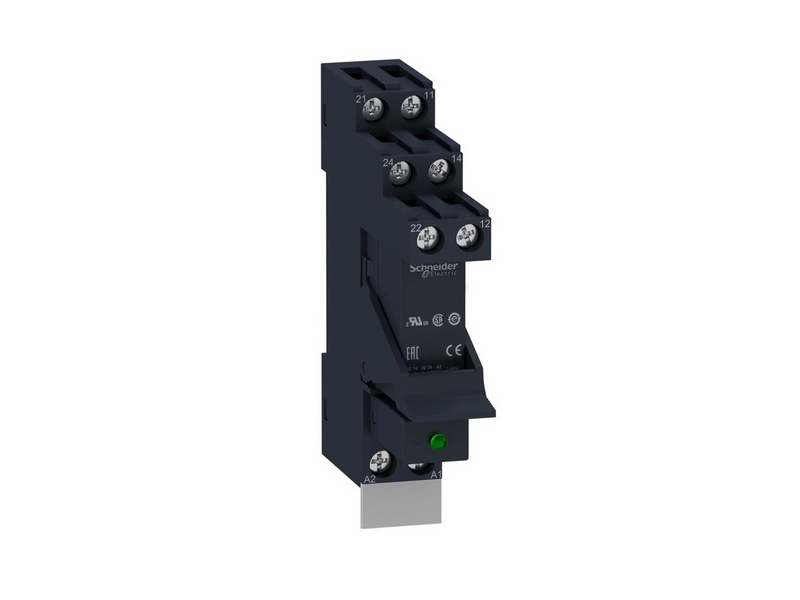

Schneider Electric Zelio rsb plug-in relay premounted in socket with varistor and legend 2 c/o 8a contacts and 230vac supply

Zelio RSB plug-in relay in socket with varistor and label, 2 C/O contacts at 8A and 230VAC supply. Product description: Zelio RSB is a series of compact plug-in relays with a width of only 16 mm. The relays are available with either 1 C/O at 12 or 16A or 2 C/O contacts at 8A. There is the possibility of inserting a protection module (diode, varistor or RC-led) directly into the relay socket if required. The RSZE1S35M and RSZE1S48M sockets have separate terminals for supply and contact sets which makes it easy to troubleshoot the relays. RSB2A08P7PV is a complete plug-in relay mounted in the RSZE1S48M relay socket with a retaining clip that ensures that the relay remains securely in place even under vibrating conditions. A varistor is mounted in the socket to protect against unwanted transients especially when coils are switched off. The varistor also has an integrated LED that indicates when there is power to the relay.RSB2A080P7PV has two C/O AgNI contacts with a maximum load capacity of eight amps.The life span of this product depends on its load level and type but can last up to one hundred thousand connections.The power supply for RSB2A080P7PV is AC230V, while its own consumption rate stands at .75VA.Minimum switching current on contact set stands at100mA.It's possible to connect up to eight relays using RGZS08 loop rail which comes as an accessory for sockets.RSB series has UL and CSA approval for use in USA & Canada
