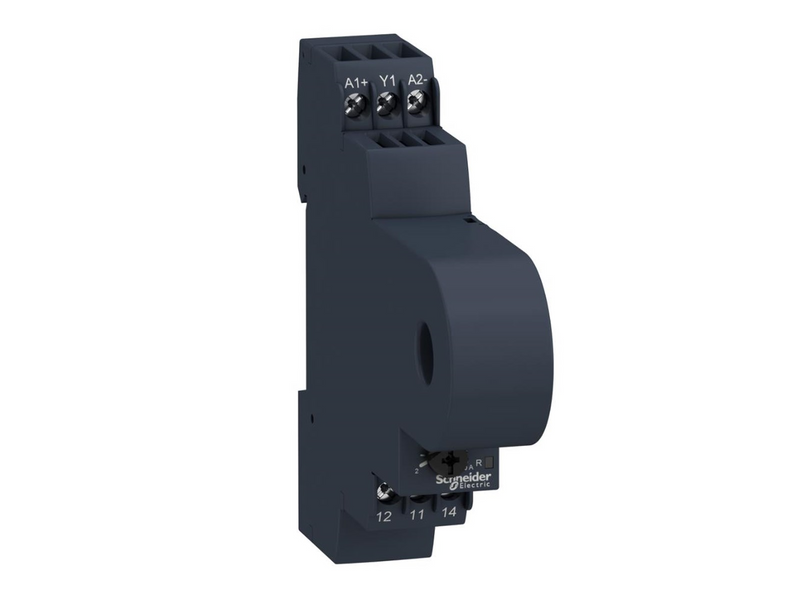

Schneider Electric Zelio control relay for overcurrent detection 2..20a with current trafo 1c/o 5a 24-240vac/dc

Zelio control relay for measuring overcurrent with current transformer 2..20A 1 C/O 5A 24-240 VAC/DC Product description: Zelio RM17 is a series of compact control relays that can easily be mounted on a DIN rail. The series is available for either single-phase or three-phase applications and can be used to measure voltage, current or phase break/phase sequence and asymmetry. With a width of only 17.5 mm, they take up very little space on the DIN rail, just like they fit under a cover on a group panel board. RM17JC00MW is a control relay for measuring overcurrent from 2..20A. The measurement takes place through a current transformer at the top of the relay. The relay is set to the desired set point by adjusting the potentiometer located just below the current transformer. The scale on the potentiometer ranges from 10..100% corresponding to 2..20A.The control relay has one C/O output that can be loaded up to 5A.The supply voltage to the relay is24..240 VAC/DCOnthe front of therelay there are two LEDs.The green LED indicates that thereis powerontherelayandtheyellowLEDindicatesthattherelayoutputisactivated.Technical specifications: Width (mm):17,5Height(mm):90Depth(mm):97Measurement range:2...20 A
