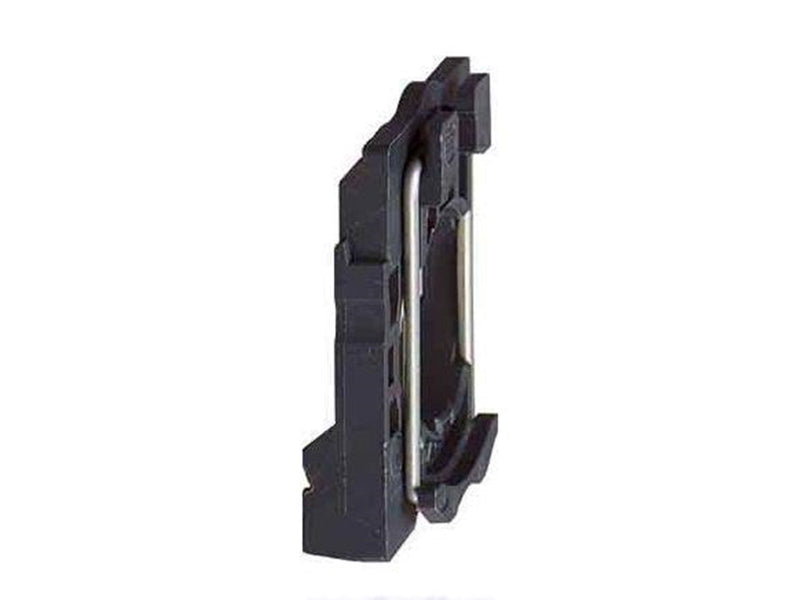

Schneider Electric Xb5a fixing base

Mounting bracket for XB5/ZB5 plastic headsProduct description: Pushbuttons, rotary and key-operated switches Harmony Style 5 (Series XB5) plastic Ø 22 mm - Complete units - Paddle pushbutton, black Ø40mm.The Harmony style 5 pushbutton program refers to the series of pushbuttons, signal lamps and lamp switches with a plastic front ring. The series model numbers start with XB5 and replace the Ø22 mm XA2-B series. However, the XA2-B series is still used with the XAC pendant switch program and is therefore included in this catalog. See section on pendant switches.Signal lamps and lamp switches now use Protected LED technology, which provides up to 100,000 hours of maintenance-free operation. The advantages of these new LEDs over traditional incandescent bulbs include less maintenance required; no need for bulb testing; all colors available (including blue and white); large voltage range with the same light intensity: 12V and 230V (see limits on page 311). Connection can be made either via screws with locking washers, plugs or pins for printed circuit boards.The program consists of:Complete units XB5-AComponents for assembly ZB5-ALoose parts and accessories ZB5-AThe complete units consist of:Flush-mounted pushbuttons, flush-mounted with silicone cap, raised buttons/pushbuttons/paddle buttons/double-push buttons/emergency stop (push-pull,push-turn,and emergency stop buttonwith key according to EN418), rotary knobs/key-operated knobs.Signal lamps (3 types):With built-in LED lights;for BA9s incandescent bulbswith direct power supplyand transformers.Lamp switches(5 types):Round oneswith built-in LED lights;for BA9s incandescent bulbswith direct power supplyand transformers.Double lamp switchwith built-in LED lightand rotary knob with built-in LED light.Signs (common to XB4 and XB5 series)The signs can be designed by the user using design software provided on a diskette.Ø 22 mm timers, sounders and fuse holdersOther products from the Harmony style 5 series include:Timers from 0 to 9999.9 hoursSounders,80DBFuse holders for 5x20mm fuses
