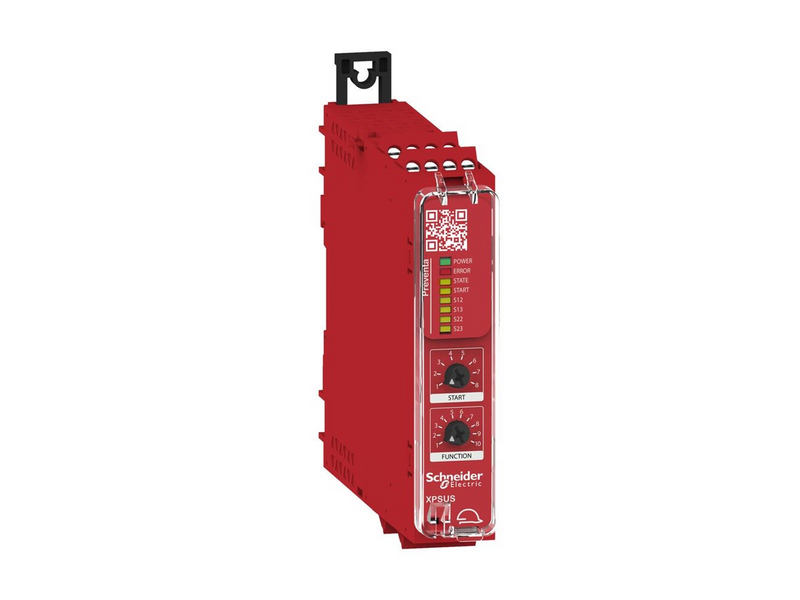

Schneider Electric Safety module us cat.4 24v screw

Preventa XPS Universal Safety Relay US Cat.4 24V Screw Product Description: The Preventa XPS Universal safety modules come with a range of technical features. XPSU has protection against unintended changes, the transparent cover on the front prevents changes to function settings. XPSU is easy to install, it has side connection for expansion module, which requires no extra wiring. Preventa XPS Universal comes with a wide time setting range, delay can be selected from 0.1 to 900 seconds for low and high inertia machines.XPSU is compact and flexible.Mounting: 22.5 and 45 mm width,DIN rail or direct wall mounting (IP40 housing, IP20 terminals).Only two supply variants for all references:24V AC/DC supply voltage or48...240V AC/DC.All models are available in two variants: either with removable screw terminals or with removable spring terminals.Preventa XPS Universal makes it easy to use hard-wired safety modules.Via a single wire,XPSU intelligent solid state output is connected to a digital input on the PLC,and in this wayPreventa XPS Universal safety module can send more than 40 different status messages to the PLC (depending on type)!XPSUS safety modules are designed to monitor two-hand stations IIIA or IIIC that must comply with international standard ISO13851.With automatic, manual and monitored start,XSPUS safety modules are used for monitoring:2 emergency stop circuits in accordance with standards ISO13850 and IEC60204-1Switches activated by protective devices in accordance with standard ISO14119:-2 mechanical protection switches-2 magnetic contacts with antivalent contacts-Contactless sensorwith antivalent contacts-2 independent PNP sensors-2 RFID security switchesType4 light gridin accordancewithIEC61496-1whichhas solid state safetyswitchoutputs withestfunctionWith automatic start,XPSUS safety modules are used for monitoring.
