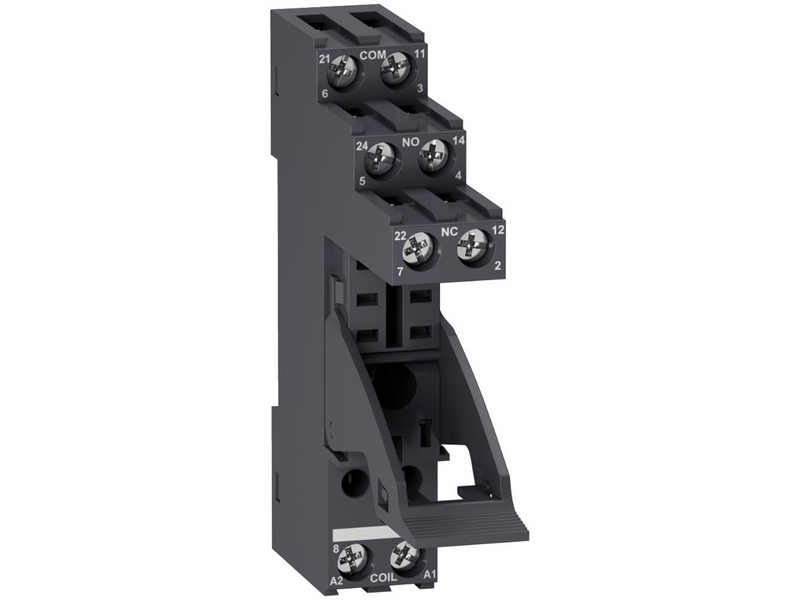

Schneider Electric 2co separate terminalsocket with clamp

Base for RXG relays with 2 C/O contacts and screw terminals. Product description: Zelio RXG is a series of socket relays that, with a width of 16 mm and strong pins, are compatible with other brands in the industry. The relays are available with either 1 C/O at 10A or 2 C/O contacts at 5A and can be chosen with or without a test button and built-in LED. There is the possibility of inserting a protection module (diode, varistor or RC-led) directly into the relay base if needed. The RGZE1S35M and RGZE1S48M bases have separate terminals for supply and contact sets that make it easy to troubleshoot the relays. RGZE1S48M is a base with separate terminals that fits RXG relays with 2 C/O contacts. The base has a width of 16 mm and protection modules can be inserted directly at the supply terminals.The integrated retaining clip ensures that the relay does not fall out once it is inserted.The RGZE1S48M base fits all RXG2xxx socket relays with two C/O contacts.Markings on the base can be made using RSZL300 marking plates which are easily pressed onto the actual base.Up to eight relays can be connected using loop bar RGZS08 which is available as an accessory for bases.The RXG series has UL and CSA approval for use in USA and Canada
