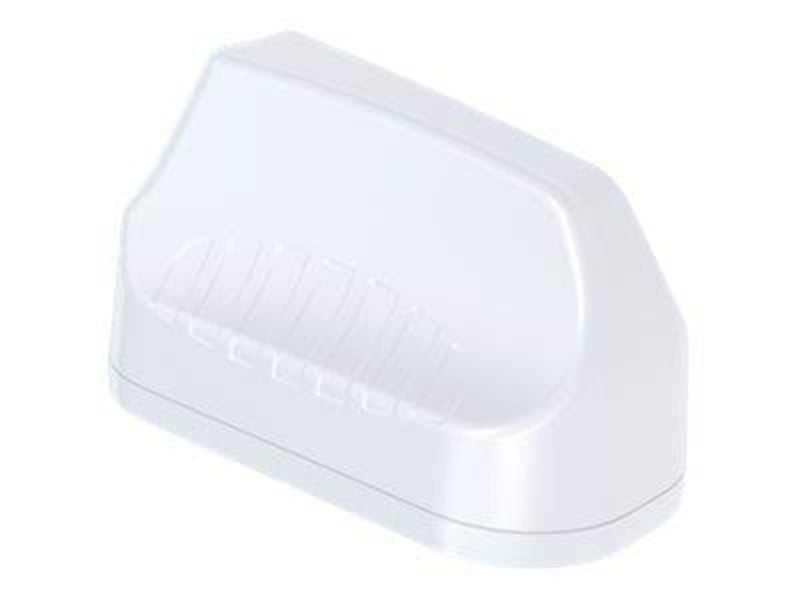

Poynting Antennas - aerial
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | Poynting |
| Waren-Nr.: | 3278788 |
| Modell: | A-MIMO-0003-V2-17 |
| EAN: | 6 |
| Zum Hersteller:: | poynting-europe.com/ |
| Produktbeschreibung: | Poynting Antennas - Antenne |
| Gerätetyp: | Antenne |
| Formfaktor: | Radom |
| Bestimmt für: | Navigation, Mobiltelefon, Wi-Fi |
| Platzierung / Montage der Antenne: | Innen / Außen, Klebemontage |
| Abmessungen (Breite x Tiefe x Höhe): | 25.3 cm x 12.8 cm x 14.4 cm |
| Gewicht: | 1.51 kg |
| Farbe: | Weiß |
| Kompatibilität: | GPS, LTE, GLONASS, 2G, 3G, 4G, Wi-Fi, 5G, CBRS |
| Frequenzbereich: | 2.4 - 2.5 GHz, 1710 - 2700 MHz, 410 - 470 MHz, 617 - 960 MHz, 3.4 - 3.8 GHz, 1427 - 1517 MHz, 5 - 7.2 GHz |
| Antennengewinn: | 3 dBi (für 2,4 - 2,5 GHz), 1.5 dBi (for 410 - 470 MHz), 2.2 dBi (for 617 - 960 MHz), 4.2 dBi ( for 1427 - 1517 MHz), 6.2 dBi (for 1710 - 2700 MHz), 4.8 dBi ( for 34MHz), 7 dBi (for 5 - 7.2 GHz) |
| Richtwirkung: | Ungerichtet |
| Funktionen: | Rechtsdrehende Polarisation (RHCP), vertikale Polarisierung, lineare Polarisation, MIMO-Technologie, flammhemmend, IP69K, IK10, wasserdicht |
| Entwickelt für: | Poynting Antennas MBK-1 |
| Allgemein | |
| Produkttyp: | Antenne |
| Formfaktor: | Radom |
| Bestimmt für: | Navigation, Mobiltelefon, Wi-Fi |
| Platzierung / Montage der Antenne: | Innen / Außen, Klebemontage |
| Breite: | 25.3 cm |
| Tiefe: | 12.8 cm |
| Höhe: | 14.4 cm |
| Gewicht: | 1.51 kg |
| Farbe: | Weiß |
| Produktmaterial: | ASA-Kunststoff |
| Antenne | |
| Kompatibilität: | GPS, LTE, GLONASS, 2G, 3G, 4G, Wi-Fi, 5G, CBRS |
| Frequenzbereich: | 2.4 - 2.5 GHz, 1710 - 2700 MHz, 410 - 470 MHz, 617 - 960 MHz, 3.4 - 3.8 GHz, 1427 - 1517 MHz, 5 - 7.2 GHz |
| Scheinwiderstand: | 50 Ohm |
| Antennengewinn: | 3 dBi (für 2,4 - 2,5 GHz), 1.5 dBi (for 410 - 470 MHz), 2.2 dBi (for 617 - 960 MHz), 4.2 dBi ( for 1427 - 1517 MHz), 6.2 dBi (for 1710 - 2700 MHz), 4.8 dBi ( for 34MHz), 7 dBi (for 5 - 7.2 GHz) |
| Max. Leistung: | 10 Watt |
| Max. Windgeschwindigkeit: | 220 km/h |
| Richtwirkung: | Ungerichtet |
| Funktionen: | Rechtsdrehende Polarisation (RHCP), vertikale Polarisierung, lineare Polarisation, MIMO-Technologie, flammhemmend, IP69K, IK10, wasserdicht |
| Geleisteter Anschluss | |
| Art: | Antenne - SMA (männlich) |
| Verschiedenes | |
| Enthaltene Kabel: | Antennenkabel - 2 m |
| Zubehör im Lieferumfang: | Antenna adapter (RP-SMA-male to SMA female) |
| Abmessungen & Gewicht (Transport) | |
| Transportbreite: | 26.5 cm |
| Transporttiefe: | 21.1 cm |
| Transporthöhe: | 20.4 cm |
| Transportgewicht: | 1.61 kg |
