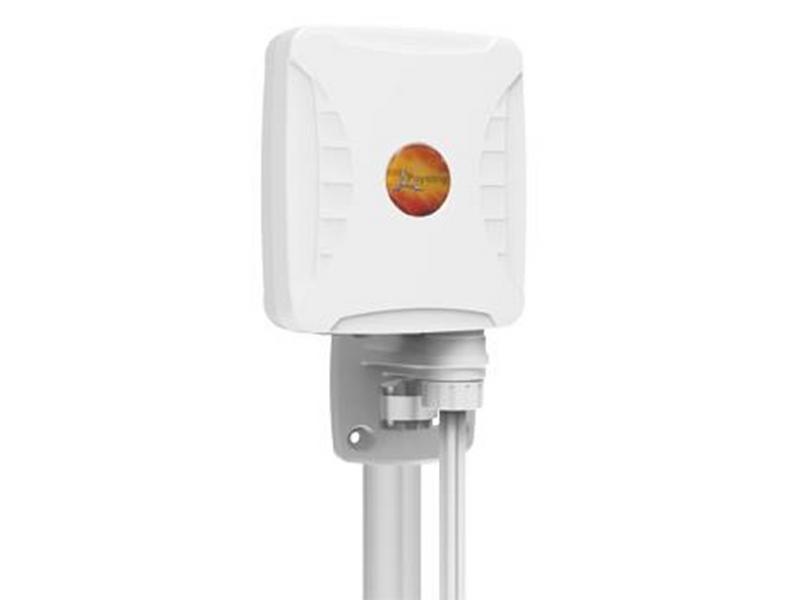

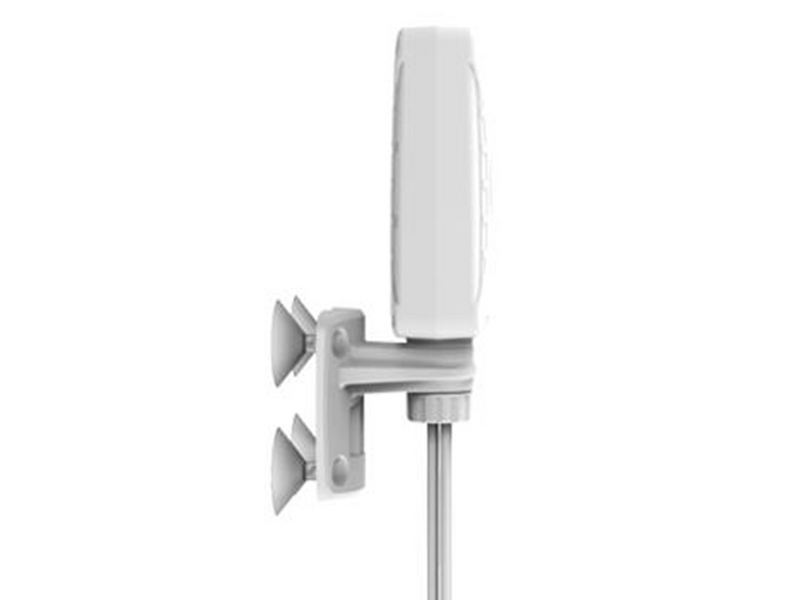

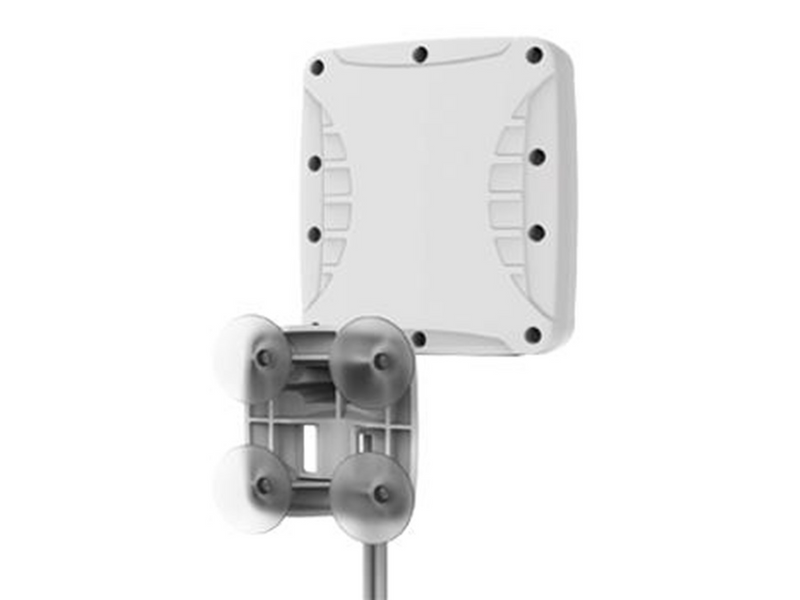

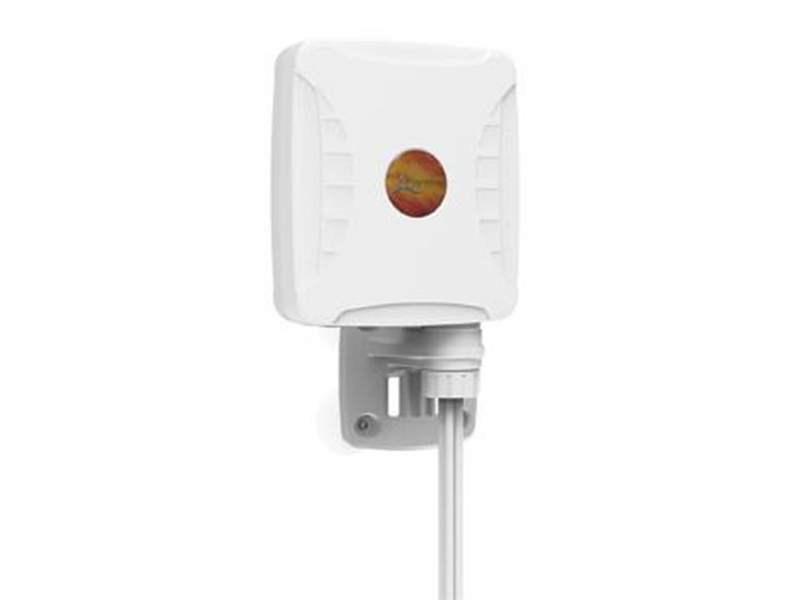

Poynting A-XPOL-0001-V2-21 X-Polarised Omni-Directional 2X2 LTE MIMO Antenna
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The radiation patterns of this antenna are omnidirectional and exceptionally well-controlled, further adding to the performance of the antenna. This makes the antenna perfect for more application areas, such as urban, rural, agricultural and commercial, to achieve better coverage over a large area. The robust mechanical enclosure design makes the antenna weather-, dust- and vandal-resistant and gives it an IP65 rating, suitable for harsh environments.
| Generell | |
| Hersteller: | Poynting |
| Waren-Nr.: | 3278783 |
| Modell: | A-XPOL-0001-V2-21 |
| EAN: | 6 |
| Zum Hersteller:: | poynting-europe.com/ |
| Produktbeschreibung: | Poynting Antennas XPOL-1-5G - Antenne |
| Produkttyp: | Antenne |
| Packungsinhalt: | Wand-/Stangenhalterungsset |
| Abmessungen (Breite x Tiefe x Höhe): | 15.7 cm x 8.8 cm x 24.7 cm |
| Gewicht: | 950 g |
| Farbe: | Glänzend Weiß, pantone P 179-1 C |
| Bestimmt für: | Mobiltelefon |
| Platzierung / Montage der Antenne: | Außen, Wandmontage möglich, Stangenbefestigung, innen, Fenster |
| Kompatibilität: | UMTS, HSPA, LTE, 3G, 4G, GSM1800, GSM900, W-CDMA, 5G, GSM1700, CDMA2000 |
| Frequenzbereich: | 698 - 960 MHz, 1710 - 2700 MHz, 34MHz |
| Antennengewinn: | 3 dBi |
| Richtwirkung: | Ungerichtet |
| Kennzeichnung: | IK10, IP65 |
| Allgemein | |
| Produkttyp: | Antenne |
| Packungsinhalt: | Wand-/Stangenhalterungsset |
| Breite: | 15.7 cm |
| Tiefe: | 8.8 cm |
| Höhe: | 24.7 cm |
| Gewicht: | 950 g |
| Kabellänge: | 5 m |
| Farbe: | Glänzend Weiß, pantone P 179-1 C |
| Antenne | |
| Bestimmt für: | Mobiltelefon |
| Platzierung / Montage der Antenne: | Außen, Wandmontage möglich, Stangenbefestigung, innen, Fenster |
| Kompatibilität: | UMTS, HSPA, LTE, 3G, 4G, GSM1800, GSM900, W-CDMA, 5G, GSM1700, CDMA2000 |
| Frequenzbereich: | 698 - 960 MHz, 1710 - 2700 MHz, 34MHz |
| Antennengewinn: | 3 dBi |
| Richtwirkung: | Ungerichtet |
| Stehwellenverhältnis: | 2.5:1 |
| Scheinwiderstand: | 50 Ohm |
| Verkabelung & Schaltung | |
| Geleisteter Anschluss: | 2 x SMA männlich |
| Verschiedenes | |
| Leistungsmerkmale: | Staubfest, robust, vandalismusresistent, wetterfest, 2x2 MiMo-Funktion, UL-Brandklassifikation |
| Kennzeichnung: | IK10, IP65 |
| Abmessungen & Gewicht (Transport) | |
| Transportbreite: | 19 cm |
| Transporttiefe: | 10 cm |
| Transporthöhe: | 27 cm |
| Transportgewicht: | 1.05 kg |
