Noctua NF-A9 5V PWM - Gehäuselüfter - 92mm - Braun - 23 dBA
Original price
€52,35
-
Original price
€52,35
Original price
€52,35
€52,35
-
€52,35
Current price
€52,35
Availability:
In stock
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

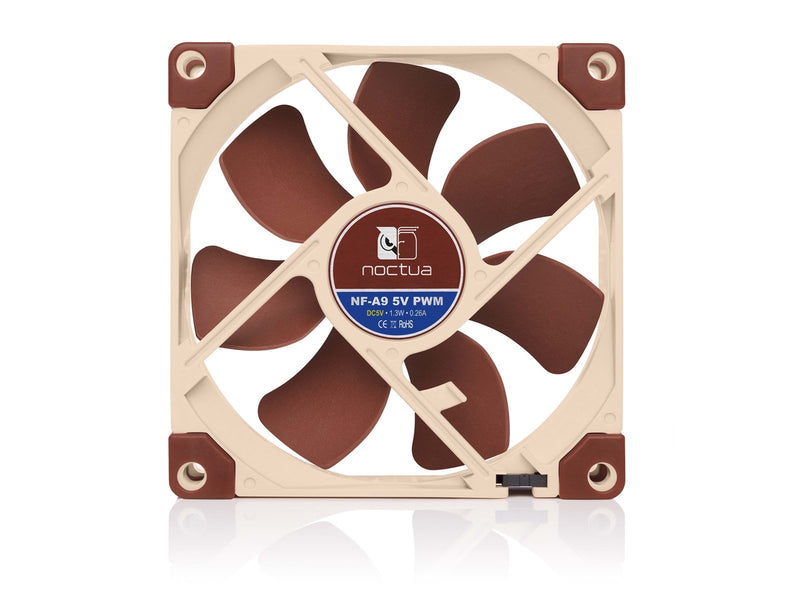

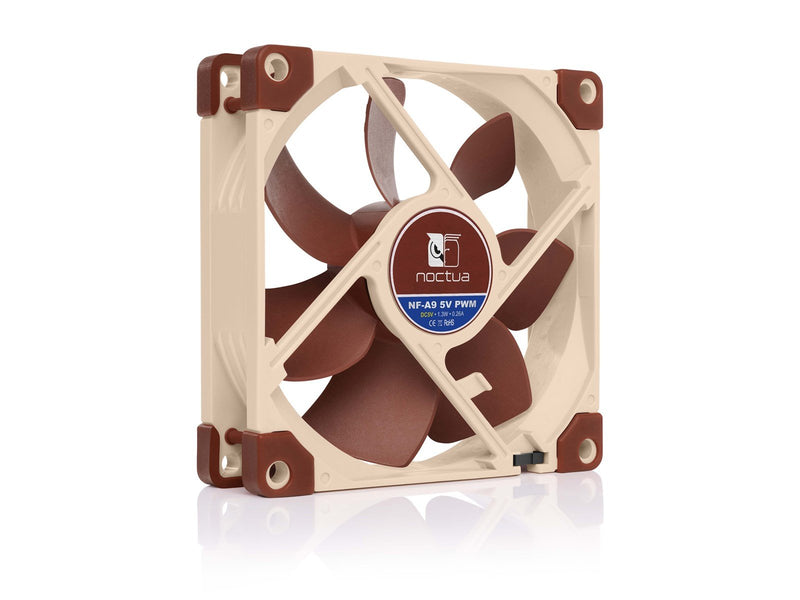

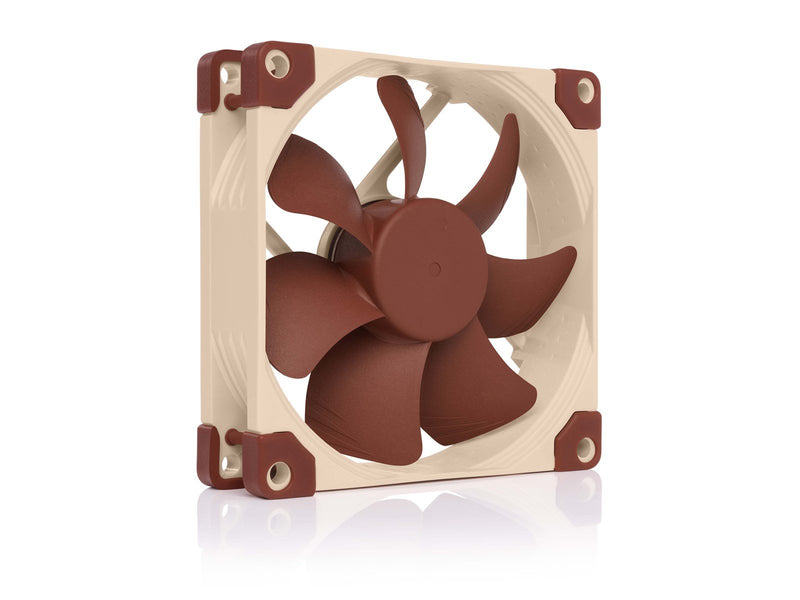

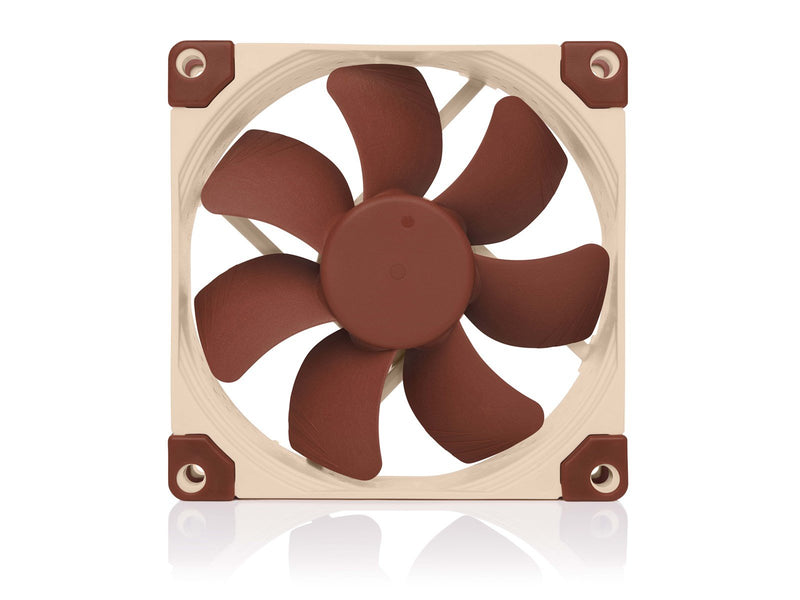

The NF-A9 5V PWM is a PWM-enabled 5V variant of Noctua’s award-winning, premium-quality NF-A9 92mm fan. Featuring an
AAO
(Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such asFlow Acceleration Channels
, the NF-A9 is renowned for its superior performance and outstanding quietness of operation.Smooth Commutation Drive
technology and Noctua’s reference classSSO2
bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable,OmniJoin™ adaptor set
and 6-year manufacturer’s warranty, the NF-A9 5V PWM is a premium choice for demanding 5V applications that require PWM control. 5V PWM version5V PWM fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin™ adaptor set, the NF-A9 5V PWM is a proven premium solution that gives you full flexibility both for replacing existing 5V PWM fans and for new, custom applications that require PWM speed control.
|
 Award-winning NF-A9 designHaving received dozens of recommendations from the international press, Noctua’s NF-A9 has become a proven premium choice for 92mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
|

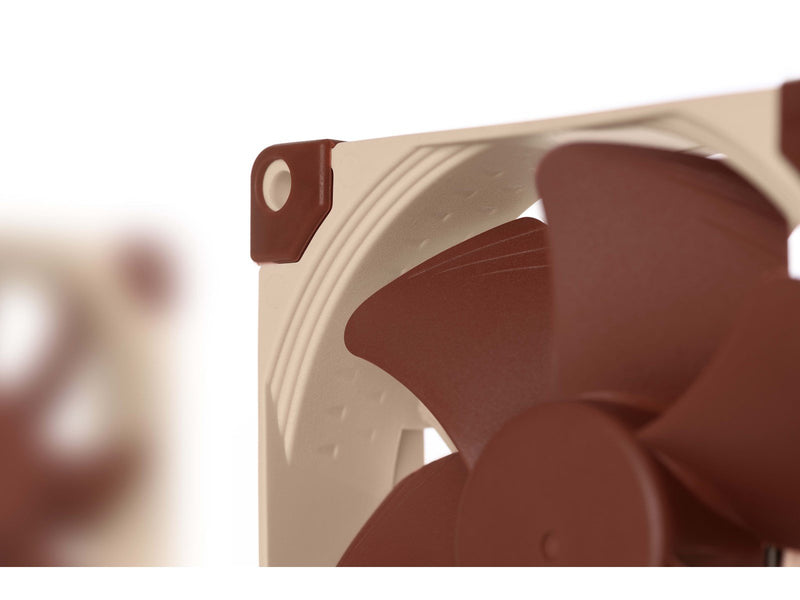

 AAO frameNoctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
|
 Stepped Inlet DesignNoctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
|
 Inner Surface MicrostructuresWith the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
|
 Integrated anti-vibration padsIntegrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
|
 Custom-designed PWM IC with SCDSupporting fully automatic PWM speed control, the NF-A9 5V PWM uses Noctua's novel, custom-designed NE-FD3 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
|
 Polarity protectionAs many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you're on the safe side if you accidentally connect it with reverse polarity.
|
 SSO2 BearingThe NF-A9 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
|
 OmniJoin™ Adaptor SetMany devices featuring 5V fans use proprietary fan headers, so the NF-A9 5V PWM comes with Noctua’s OmniJoin adaptor set. Just cut the original fan’s cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A9 5V PWM to proprietary fan headers!
|
 USB power adaptor cableThe fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!
|
 Extensive cabling optionsThe fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
|
 6-year manufacturer’s warrantyNoctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A9 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.
|
| Generell | |
| Hersteller: | Noctua |
| Waren-Nr.: | 2674902 |
| Modell: | NF-A9 5V PWM |
| EAN: | 901 |
| Zum Hersteller:: | noctua.at/en/products/fan/nf-a9-5v-pwm |
| Produktbeschreibung: | Noctua NF-A9 5V PWM - Gehäuselüfter |
| Produkttyp: | Gehäuselüfter |
| Packungsinhalt: | OmniJoin Adaptor Set, Verlängerungskabel (30 cm), USB-Stromadapterkabel |
| Lüfterdurchmesser: | 92 mm |
| Gebläsehöhe: | 25 mm |
| Lüfterlager: | SSO2-Lager |
| Drehgeschwindigkeit: | 4U/min |
| Luftstrom: | 78.9 m³/h (46,4 CFM) |
| Geräuschpegel: | 22.8 dBA |
| Netzanschluss: | Lüfteranschluss, 4-polig |
| Nennspannung: | 5 V |
| Merkmale: | PWM-Unterstützung (Pulse-Width Modulation), Advanced Acoustic Optimisation (AAO), Strömungsbeschleunigungs-Kanäle, SCD-Technologie (Smooth Commutation Drive), integrierte Antivibrations-Pads, Stepped Inlet Design, Inner Surface Microstructures |
| Abmessungen (Breite x Tiefe x Höhe): | 9.2 cm x 9.2 cm x 2.5 cm |
| Allgemein | |
| Produkttyp: | Gehäuselüfter |
| Packungsinhalt: | OmniJoin Adaptor Set, Verlängerungskabel (30 cm), USB-Stromadapterkabel |
| Breite: | 9.2 cm |
| Tiefe: | 9.2 cm |
| Höhe: | 2.5 cm |
| Transportabmessungen (B x T x H)/Gewicht: | 15 cm x 3.4 cm x 21 cm / 250 g |
| Kühlkörper und Lüfter | |
| Lüfterdurchmesser: | 92 mm |
| Gebläsehöhe: | 25 mm |
| Lüfterlager: | SSO2-Lager |
| Drehgeschwindigkeit: | 4U/min |
| Luftstrom: | 78.9 m³/h (46,4 CFM) |
| Luftdruck: | 2.28 mm |
| Geräuschpegel: | 22.8 dBA |
| Netzanschluss: | Lüfteranschluss, 4-polig |
| Nennspannung: | 5 V |
| Nennstrom: | 0.26 A |
| Energieverbrauch: | 1.3 W |
| Merkmale: | PWM-Unterstützung (Pulse-Width Modulation), Advanced Acoustic Optimisation (AAO), Strömungsbeschleunigungs-Kanäle, SCD-Technologie (Smooth Commutation Drive), integrierte Antivibrations-Pads, Stepped Inlet Design, Inner Surface Microstructures |
| Verschiedenes | |
| Montagekit: | Mitgeliefert |
| MTBF: | 150,000 Stunde(n) |
