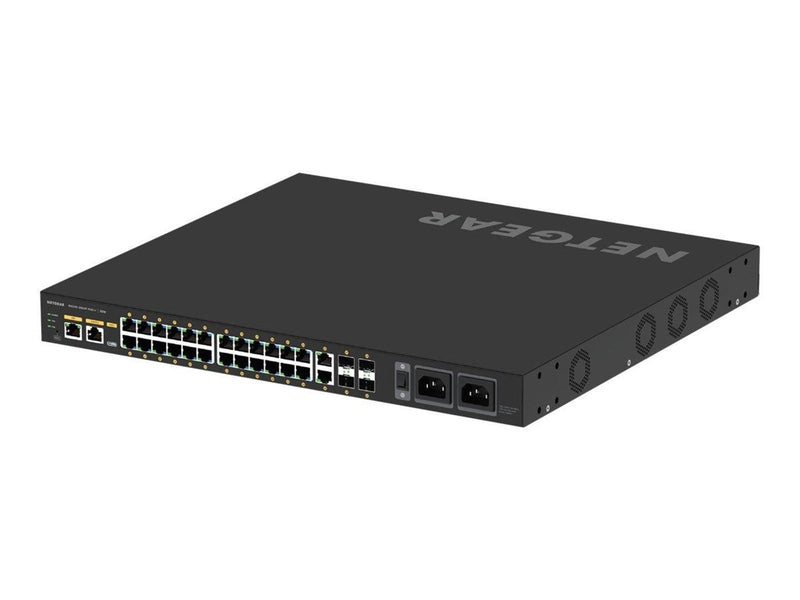

Netgear AV Line M4250-26G4F-PoE++ (GSM4230UP) 24x1G PoE++ 1.440W 2x1G and 4xSFP Managed Switch
Original price
€7.671,87
-
Original price
€7.671,87
Original price
€7.671,87
€7.671,87
-
€7.671,87
Current price
€7.671,87
Availability:
In stock
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The M4250 switches are designed for a clean integration with traditional rack-mounted AV equipment. A sleek display panel provides port and activity status in the front, with all power and network cabling neatly organized in the back.
As video transitions to running over an IP network versus direct cabling or even HDBaseT, there are many things to consider. The AV Line incorporates NETGEAR IGMP Plus for flawless video over IP (including audio and control).
If you are using Dante or AVB in your audio deployment, you can trust that NETGEAR's AV Line switches are designed to seamlessly integrate into your solution.
The M4250 AV interface presents the common AV controls right up front with user-selectable profiles for common AV platforms making it a snap to ensure the settings are correct for a specific audio or video application.
As video transitions to running over an IP network versus direct cabling or even HDBaseT, there are many things to consider. The AV Line incorporates NETGEAR IGMP Plus for flawless video over IP (including audio and control).
If you are using Dante or AVB in your audio deployment, you can trust that NETGEAR's AV Line switches are designed to seamlessly integrate into your solution.
The M4250 AV interface presents the common AV controls right up front with user-selectable profiles for common AV platforms making it a snap to ensure the settings are correct for a specific audio or video application.
| Generell | |
| Hersteller: | Netgear |
| Waren-Nr.: | 3005447 |
| Modell: | GSM4230UP-100EUS |
| EAN: | 0606449151701 |
| Zum Hersteller:: | |
| Produktbeschreibung: | NETGEAR AV Line M4250-26G4F-PoE++ - Switch - 24 Anschlüsse - managed - an Rack montierbar |
| Gerätetyp: | Switch - 24 Anschlüsse - L3 - managed |
| Gehäusetyp: | Seite-zu-Seite-Luftstrom an Rack montierbar 1U |
| Untertyp: | Gigabit Ethernet |
| Ports: | 24 x 10/100/1000 (PoE++) + 2 x 10/100/1000 + 4 x 1000Base-X SFP |
| Power Over Ethernet (PoE): | PoE++ |
| PoE-Budget: | 1440 W |
| Leistung: | Switching-Kapazität: 60 Gbps Firewall-Durchsatz (Paketgröße 64 Byte): 44.64 Mpps 1 Gbps Fiberlatenz (64-byte Pakete): 1.141 μs 1 Gbps Fiberlatenz (512-byte Pakete): 1.126 μs 1 Gbps Fiberlatenz (1024-byte Pakete): 1.119 μs 1 Gbps Fiberlatenz (1518-byte Pakete): 1.140 μs 1 Gbps Kupferlatenz (64-byte Pakete): 2.139 μs 1 Gbps Kupferlatenz (512-byte Pakete): 2.14 μs 1 Gbps Kupferlatenz (1024-byte Pakete): 2.133 μs 1 Gbps Kupferlatenz (1518-byte Pakete): 2.146 μs |
| Kapazität: | ARP-Einträge: 4000 NDP-Einträge: 4000 Gepackte Puffergröße: 32 MB VLAN-Unterstützung: 4093 IGMP Multicast-Gruppen: 4000 QoS-Hardwarewarteschlange: 8 IPv4-Routen (statisch): 64 IPv6-Routen (statisch): 64 RIP Application Route Scaling (IPv4): 32 IPv4-Gruppen (Multicast): 512 IPv6-Gruppen (Multicast): 128 |
| Größe der MAC-Adresstabelle: | 16.000 Einträge |
| Jumbo-Rahmenunterstützung: | 12KB |
| Routing Protocol: | IGMP, STP, MSTP, RSTP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-DMv6, PIM-SM, PIM-SMv6, statisches IPv4-Routing, statisches IPv6-Routing, Policy-Based Routing (PBR), RIP-1, RIP-2, PIM-SSM |
| Remoteverwaltungsprotokoll: | HTTP, Telnet, SSH, DHCP, CLI, RADIUS, ICMP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, TACACS+, SSH-2, TFTP, HTTPS, SCP, SFTP |
| Leistungsmerkmale: | LAG, PIM, DHCP-Server, PTP, AVB, IPTV-Support, sFlow, RSPAN, Abtastautomatik pro Gerät, LLDP-Support, duale Firmware-Images, Energy Efficient Ethernet, Store-and-Forward, Voice VLAN, 802.1x-Authentifizierung, TPID, GARP, GVRP, GMRP, MRP, MVRP, MVR, LACP-Support, Vollduplex-Modus, Flusskontrolle, UDLD, RPVST+, STP Loop-Schutz, STP Root Guard, STP BPDU Guard, STP BPDU Filtering, STP BPDU Flooding, IGMP Snooping, MLD-Snooping, MGMD Snooping, IGMP-Proxy, MLD-Proxy, ASM, SSM, NDP, BOOTP-Unterstützung, DHCP-Relais, DNS-Klient, ISDP, LLDP-MED, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DoS protection, MACAL, MAB, Port Security, IP-Quellwächter, DHCP-Snooping, DAI, RA-Schutz, MAC-Adressenfilter, DiffServ-Unterstützung, QoS, CoS, WRED, SP, DSCP-Unterstützung, SNTP-Unterstützung, Port-Spiegelung, Kabeltest |
| Produktzertifizierungen: | IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1x, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1v, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3bt |
| Abmessungen (Breite x Tiefe x Höhe): | 44 cm x 40 cm x 4.32 cm |
| Gewicht: | 6.746 kg |
| Lokalisierung: | Europa |
| Allgemein | |
| Gerätetyp: | Switch - 24 Anschlüsse - L3 - managed |
| Gehäusetyp: | Seite-zu-Seite-Luftstrom an Rack montierbar 1U |
| Untertyp: | Gigabit Ethernet |
| Ports: | 24 x 10/100/1000 (PoE++) + 2 x 10/100/1000 + 4 x 1000Base-X SFP |
| Power Over Ethernet (PoE): | PoE++ |
| PoE-Budget: | 1440 W |
| Leistung: | Switching-Kapazität: 60 Gbps Firewall-Durchsatz (Paketgröße 64 Byte): 44.64 Mpps 1 Gbps Fiberlatenz (64-byte Pakete): 1.141 μs 1 Gbps Fiberlatenz (512-byte Pakete): 1.126 μs 1 Gbps Fiberlatenz (1024-byte Pakete): 1.119 μs 1 Gbps Fiberlatenz (1518-byte Pakete): 1.140 μs 1 Gbps Kupferlatenz (64-byte Pakete): 2.139 μs 1 Gbps Kupferlatenz (512-byte Pakete): 2.14 μs 1 Gbps Kupferlatenz (1024-byte Pakete): 2.133 μs 1 Gbps Kupferlatenz (1518-byte Pakete): 2.146 μs |
| Kapazität: | ARP-Einträge: 4000 NDP-Einträge: 4000 Gepackte Puffergröße: 32 MB VLAN-Unterstützung: 4093 IGMP Multicast-Gruppen: 4000 QoS-Hardwarewarteschlange: 8 IPv4-Routen (statisch): 64 IPv6-Routen (statisch): 64 RIP Application Route Scaling (IPv4): 32 IPv4-Gruppen (Multicast): 512 IPv6-Gruppen (Multicast): 128 |
| Größe der MAC-Adresstabelle: | 16.000 Einträge |
| Jumbo-Rahmenunterstützung: | 12KB |
| Routing Protocol: | IGMP, STP, MSTP, RSTP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-DMv6, PIM-SM, PIM-SMv6, statisches IPv4-Routing, statisches IPv6-Routing, Policy-Based Routing (PBR), RIP-1, RIP-2, PIM-SSM |
| Remoteverwaltungsprotokoll: | HTTP, Telnet, SSH, DHCP, CLI, RADIUS, ICMP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, TACACS+, SSH-2, TFTP, HTTPS, SCP, SFTP |
| Verschlüsselungsalgorithmus: | SSL 3.0, TLS 1.0, TLS 1.2, AES |
| Authentifizierungsmethode: | Secure Shell (SSH), RADIUS, TACACS+ |
| Leistungsmerkmale: | LAG, PIM, DHCP-Server, PTP, AVB, IPTV-Support, sFlow, RSPAN, Abtastautomatik pro Gerät, LLDP-Support, duale Firmware-Images, Energy Efficient Ethernet, Store-and-Forward, Voice VLAN, 802.1x-Authentifizierung, TPID, GARP, GVRP, GMRP, MRP, MVRP, MVR, LACP-Support, Vollduplex-Modus, Flusskontrolle, UDLD, RPVST+, STP Loop-Schutz, STP Root Guard, STP BPDU Guard, STP BPDU Filtering, STP BPDU Flooding, IGMP Snooping, MLD-Snooping, MGMD Snooping, IGMP-Proxy, MLD-Proxy, ASM, SSM, NDP, BOOTP-Unterstützung, DHCP-Relais, DNS-Klient, ISDP, LLDP-MED, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DoS protection, MACAL, MAB, Port Security, IP-Quellwächter, DHCP-Snooping, DAI, RA-Schutz, MAC-Adressenfilter, DiffServ-Unterstützung, QoS, CoS, WRED, SP, DSCP-Unterstützung, SNTP-Unterstützung, Port-Spiegelung, Kabeltest |
| Produktzertifizierungen: | IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1x, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1v, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3bt |
| Prozessor: | X ARM: 1.8 GHz |
| RAM: | 2 GB |
| Flash-Speicher: | 256 MB |
| Statusanzeiger: | Stromversorgung, PoE max, Lüfter, Port Status |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 24 x 10/100/1000 Base-T RJ-45 PoE+W 2 x 10/100/1000 Base-T RJ-45 4 x 1000Base-X SFP 1 x Verwaltung (Gigabit-LAN) RJ-45 1 x Verwaltung (RS-232) RJ-45 1 x USB-C 1 x USB Type A |
| Stromversorgung | |
| Stromversorgungsgerät: | Internes Netzteil |
| Installierte Anzahl: | 2 |
| Leistungsaufnahme im Betrieb: | 1734 Watt |
| Stromverbrauch im Standby-Modus: | 36.9 Watt |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Gummikappen, Gummifüße |
| Enthaltene Kabel: | 1 x Konsolenkabel 1 x USB-C auf USB-A Kabel |
| Rackmontagesatz: | Mitgeliefert |
| MTBF: | 491,282 Stunden |
| Produktzertifizierungen: | EN 55032:2012+AC:2013 Class A, CISPR 32:2012, EN 61000-3-2:2014, EN 60950-1, EN 62368-1, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016 Class A, RCM, AS/NZS CISPR32:2013 Class A, GB 4943, FCC CFR47 Part 15 A, ANSI C63.4:2014, ICES-003:2016 issue 6 Class A, CNS 13438 Class A, CB, IEC 62368-1, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, UL 1950, cUL, IEC 950, EN 60950, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011+A2:2013, AS/NZS 60950-1:2015, CCC, CNS 14336-1 |
| Lokalisierung: | Europa |
| Maße und Gewicht | |
| Breite: | 44 cm |
| Tiefe: | 40 cm |
| Höhe: | 4.32 cm |
| Gewicht: | 6.746 kg |
