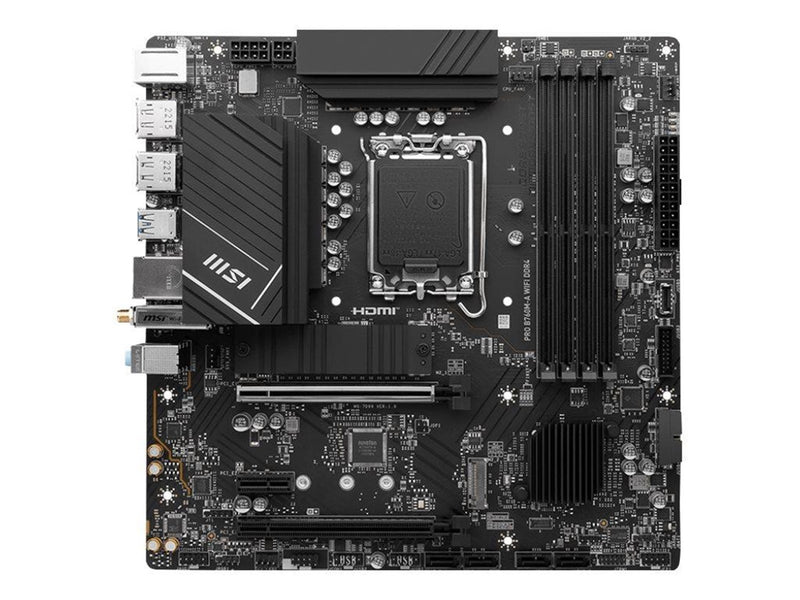

MSI PRO B760M-A WIFI DDR4 Mainboard - Intel B760 - Intel LGA1700 socket - DDR4 RAM - Micro-ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | MSI |
| Waren-Nr.: | 3173131 |
| Modell: | PRO B760M-A WIFI DDR4 |
| EAN: | 4711377026383 |
| Zum Hersteller:: | ... |
| Produktbeschreibung: | MSI PRO B760M-A WIFI DDR4 - Motherboard - micro ATX - LGA1700-Sockel - B760 |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | Intel B760 / Nuvoton NCT6687D |
| Prozessorsockel: | 1 x LGA1700-Sockel |
| Kompatible Prozessoren: | (unterstützt 12. und 13. Generation Intel Core / Pentium / Celeron, unterstützt CPUs mit bis zu 16 Kernen, Maximum TDP 125 Watt) |
| Max. RAM-Größe: | 128 GB |
| Unterstütztes RAM: | 4 DIMM-Steckplätze - DDR4, non-ECC, ungepuffert |
| Massenspeicher-Schnittstellen: | 4 x SATA-600 (RAID), 2 x M.2 |
| USB-/FireWire-Anschlüsse: | 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste) |
| Audio: | HD Audio (8-Kanal) |
| LAN: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Allgemein | |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | Intel B760 / Nuvoton NCT6687D |
| Prozessorsockel: | LGA1700-Sockel |
| Max. Anz. Prozessoren: | 1 |
| Kompatible Prozessoren: | (unterstützt 12. und 13. Generation Intel Core / Pentium / Celeron, unterstützt CPUs mit bis zu 16 Kernen, Maximum TDP 125 Watt) |
| Unterstützter RAM | |
| Max. Größe: | 128 GB |
| Technologie: | DDR4 |
| Bustakt: | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4200 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5066 MHz (O.C.), 5200 MHz (O.C.), 5333 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung: | Non-ECC |
| Registriert oder gepuffert: | Ungepuffert |
| Besonderheiten: | Zwei-Kanal-Speicherarchitektur, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Typ: | HD Audio (8-Kanal) |
| Audio Codec: | Realtek ALC897 |
| Kompatibilität: | High-Definition-Audio |
| LAN | |
| Netzwerkcontroller: | Realtek RTL8125BG |
| Netzwerkschnittstellen: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze: | 1 x CPU 4 x DIMM 288-polig 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x PCIe 4.0 x16 (x4-Modus) 2 x M.2 socket (2242/2260/2280 M.2 Key B Steckplatz) |
| Speicherschnittstellen: | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -anschlussstellen: 2 x M.2 |
| Schnittstellen: | 2 x USB 3.2 Gen 1 2 x USB 2.0 2 x USB 3.2 Gen 2 1 x LAN (2.5Gigabit Ethernet) 2 x Antenne 1 x PS/2-Tastatur/-maus 1 x Audio Line-Out - Mini-Klinkenstecker 1 x Kopfhörerausgang - Mini-Klinkenstecker 1 x Mikrofon - Mini-Klinkenstecker 2 x HDMI 2 x DisplayPort |
| Interne Schnittstellen: | 4 x USB 2.0 - Stiftleiste 4 x USB 3.2 Gen 1 - Stiftleiste 1 x USB-C 3.2 Gen 1 - Stiftleiste 1 x Audio - Stiftleiste 1 x Seriell - Stiftleiste |
| Stromanschlüsse: | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig, ATX12V-Stecker, 4-polig |
| Besonderheiten | |
| BIOS-Typ: | AMI |
| BIOS-Funktionen: | ACPI 6,4 Unterstützung, Unterstützung von SMBIOS 3,5, Mehrsprachiges BIOS, MSI ClickBIOS 5 |
| Hardwarefeatures: | Water Pump Header, Debug LED, kompatibel mit Windows 11, M.2 Shield FROZR, MSI Memory Boost, Extended Heatsink Design, 12+1+1 Phase Power Design, 2oz Copper PCB, DIY Friendly Design, MSI Core Boost, MSI Audio Boost, verstärkte PCIe-Slots, MSI Mystic Light, 6 Layer PCB |
