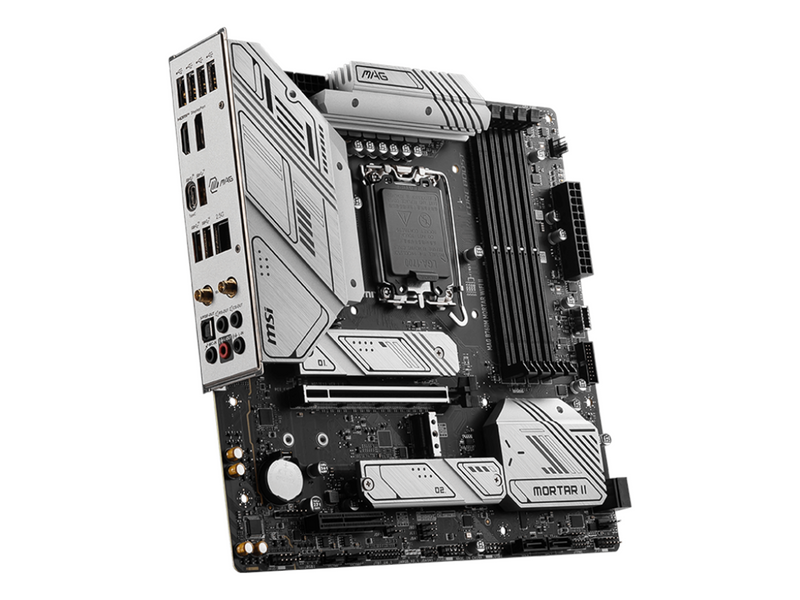

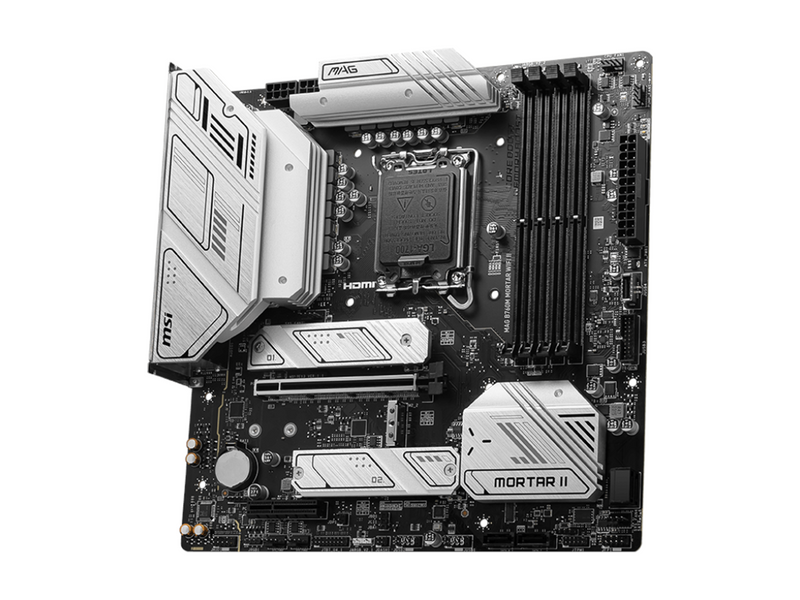

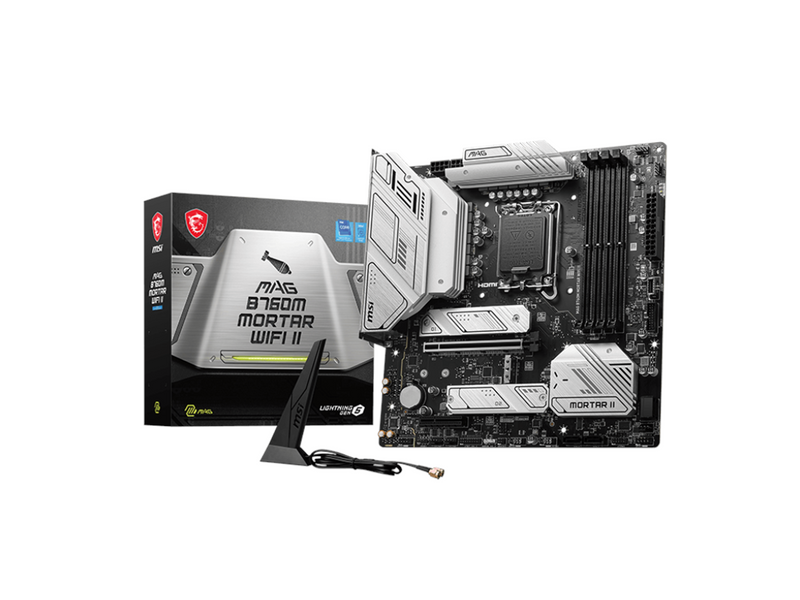

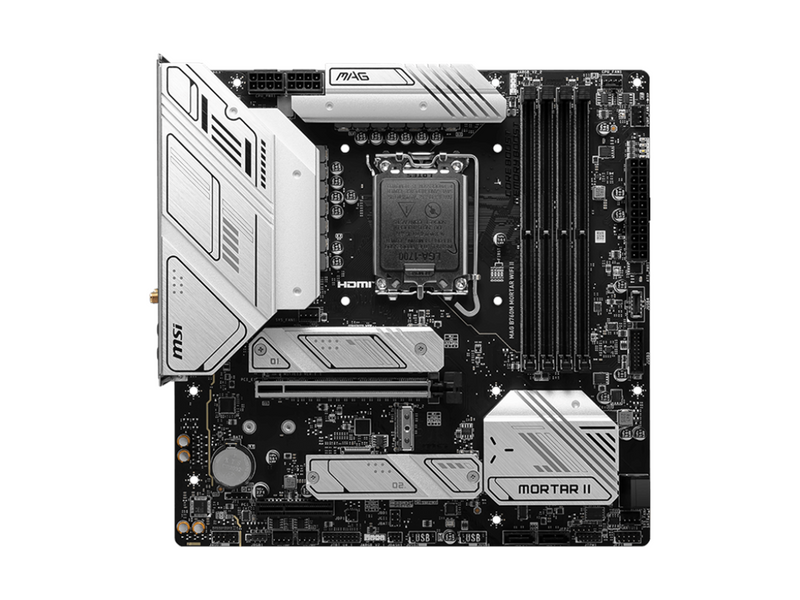

MSI MAG B760M MORTAR WIFI II Mainboard - Intel B760 - Intel LGA1700 socket - DDR5 RAM - Micro-ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | MSI |
| Waren-Nr.: | 3238723 |
| Modell: | MAG B760M MORTAR WIFI II |
| EAN: | 4711377140119 |
| Zum Hersteller:: | ... |
| Produktbeschreibung: | MSI MAG B760M MORTAR WIFI II - Motherboard - micro ATX - LGA1700-Sockel - B760 |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | Intel B760 |
| Prozessorsockel: | 1 x LGA1700-Sockel |
| Kompatible Prozessoren: | (unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation) |
| Max. RAM-Größe: | 192 GB |
| Unterstütztes RAM: | 4 DIMM-Steckplätze - DDR5, non-ECC, ungepuffert |
| Massenspeicher-Schnittstellen: | 4 x SATA-600 (RAID), 3 x M.2 |
| USB-/FireWire-Anschlüsse: | 1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste) |
| Audio: | HD Audio (8-Kanal) |
| LAN: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Allgemein | |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | Intel B760 |
| Prozessorsockel: | LGA1700-Sockel |
| Max. Anz. Prozessoren: | 1 |
| Kompatible Prozessoren: | (unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation) |
| Unterstützter RAM | |
| Max. Größe: | 192 GB |
| Technologie: | DDR5 |
| Bustakt: | 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz, 7000 MHz (O.C.), 6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung: | Non-ECC |
| Registriert oder gepuffert: | Ungepuffert |
| Besonderheiten: | Zwei-Kanal-Speicherarchitektur, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Typ: | HD Audio (8-Kanal) |
| Audio Codec: | Realtek ALC897 |
| Kompatibilität: | High-Definition-Audio |
| LAN | |
| Netzwerkcontroller: | Realtek RTL8125BG |
| Netzwerkschnittstellen: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze: | 1 x CPU 4 x DIMM 288-polig 1 x PCIe 5.0 x16 1 x PCIe 3.0 x4 1 x M.2 socket (2242/2260/2280 M.2 Slot mit Key M) 1 x M.2 socket (2260/2280 M.2 Key M Slot) 1 x M.2 socket (2280 M.2 Key B Slot) |
| Speicherschnittstellen: | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -anschlussstellen: 2 x M.2 SATA-600 / PCIe 4.0 -anschlussstellen: 1 x M.2 |

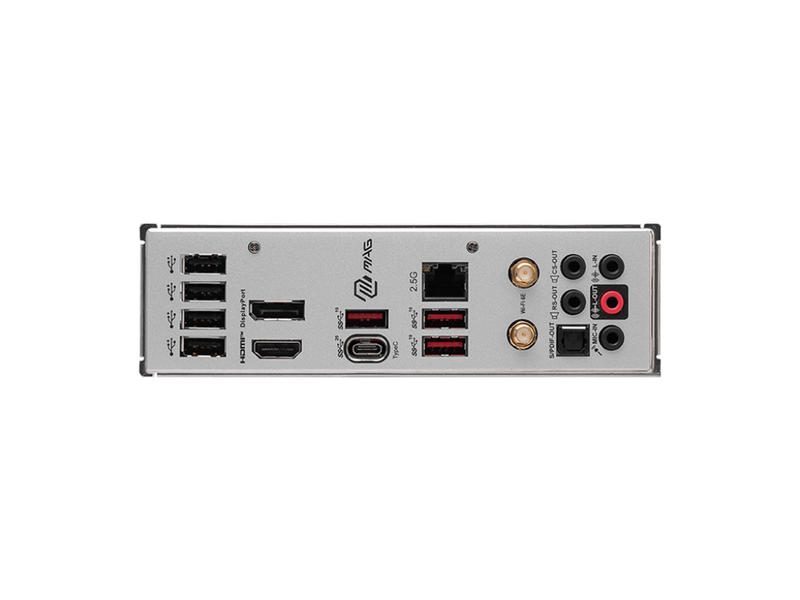

| Schnittstellen: | 1 x HDMI 1 x DisplayPort 4 x USB 2.0 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 2 1 x LAN (2.5Gigabit Ethernet) 2 x Antenne 1 x Audio Line-Out - Mini-Klinkenstecker 1 x Mikrofon - Mini-Klinkenstecker 1 x Audio Line-Out (Mitte/Subwoofer) - Mini-Klinkenstecker 1 x Audio Line-Out (hinten) - Mini-Klinkenstecker 1 x Audio Line-In - Mini-Klinkenstecker 1 x SPDIF-Ausgang |
| Interne Schnittstellen: | 4 x USB 2.0 - Stiftleiste 2 x USB 3.2 Gen 1 - Stiftleiste 1 x USB-C 3.2 Gen 2 - Stiftleiste 1 x Audio - Stiftleiste 1 x SPI - Stiftleiste |
| Stromanschlüsse: | Hauptstromanschluss, 24-polig, 2 8-polige ATX12V-Anschlüsse |
| Besonderheiten | |
| BIOS-Funktionen: | MSI ClickBIOS 5, M-Flash |
| Hardwarefeatures: | 12+1+1 Phase Power Design, Debug LED, MSI Memory Boost, MSI Audio Boost, MSI Core Boost, M.2 Shield FROZR, 2oz Copper PCB, 6 Layer PCB, Digital PWM, Extended Heatsink Design, MSI Steel Armor, Water Pump Header, Load-Line Calibration (LLC), VRM Kühlkörperdesign, Überspannungsschutz, DIY Friendly Design, Surface Mount Technology (SMT), MSI Mystic Light |
