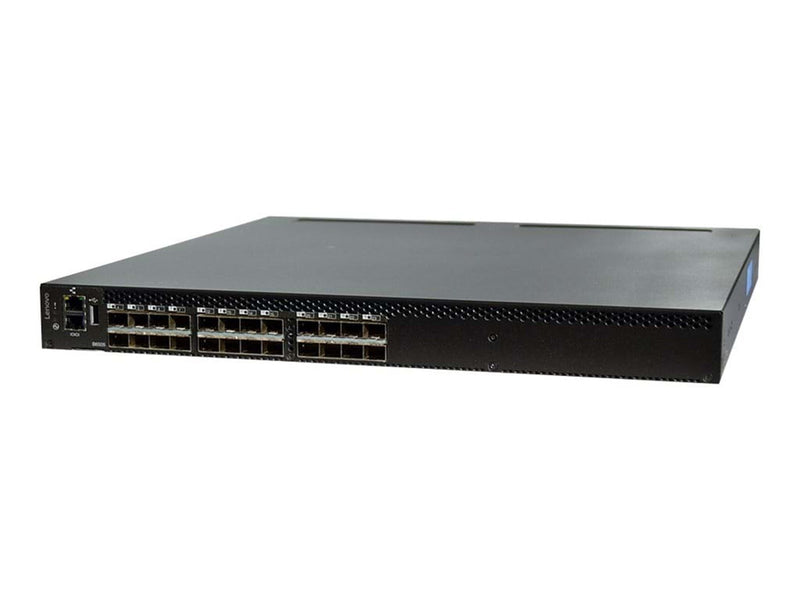

Lenovo B6505
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | Lenovo |
| Waren-Nr.: | 2563167 |
| Modell: | 3873AR5 |
| EAN: | 0889488088393 |
| Zum Hersteller:: | lenovo.com |
| Kontaktieren Sie den Hersteller: | ... |
| Produktbeschreibung: | Lenovo B6505 - Switch - 24 Anschlüsse - managed - an Rack montierbar |
| Gerätetyp: | Switch - 24 Anschlüsse - managed |
| Gehäusetyp: | An Rack montierbar 1U |
| Untertyp: | Fibre Channel |
| Ports: | 12 x 16Gb Fibre Channel SFP+ |
| Leistung: | Durchsatz: 384 Gbit/s Vermittlungs-Latenzzeit: 0.7 ms |
| Remoteverwaltungsprotokoll: | SNMP 1, SNMP, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SCP |
| Leistungsmerkmale: | Syslog-Unterstützung, Port-Spiegelung, IPv6-Unterstützung, IP-Adressenfilterung, Firmware aktualisierbar, Ports on Demand, Ereignisprotokoll, Unterstützung für Access Control List (ACL), Quality of Service (QoS), Management Information Base (MIB), NTP-Zeitsynchronisation, Umgebungsüberwachung, Transparente NPIV-Modusunterstützung (N_Port ID Virtualization), RSCN-Unterstützung (Registered State Change Notification), dynamische Bereitstellung, redundante Lüfter, Fabric Shortest Path First (FSPF), Fabric-Device Management Interface (FDMI), Role-Based Access Control (RBAC), Dynamic path selection (DPS), Dynamic load sharing (DLS), Reliable Commit Service (RCS), Simple Name Server (SNS), Fibre Channel Authentication Protocol (FCAP), Power-on self-test (POST) |
| Stromversorgung: | Wechselstrom 120/230 V |
| Redundante Stromversorgung: | Optional |
| Abmessungen (Breite x Tiefe x Höhe): | 43.8 cm x 44.3 cm x 4.3 cm |
| Gewicht: | 7.8 kg |
| Allgemein | |
| Gerätetyp: | Switch - 24 Anschlüsse - managed |
| Gehäusetyp: | An Rack montierbar 1U |
| Untertyp: | Fibre Channel |
| Ports: | 12 x 16Gb Fibre Channel SFP+ |
| Leistung: | Durchsatz: 384 Gbit/s Vermittlungs-Latenzzeit: 0.7 ms |
| Fibre Channel: | FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-GS-4, FC-PI, FC-PLDA, FC-SB, FC-SB-2, FC-SB-3, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-BB-6, FC-SB-5 |
| Remoteverwaltungsprotokoll: | SNMP 1, SNMP, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SCP |
| Verschlüsselungsalgorithmus: | SSL |
| Authentifizierungsmethode: | RADIUS, TACACS+, LDAP |
| Leistungsmerkmale: | Syslog-Unterstützung, Port-Spiegelung, IPv6-Unterstützung, IP-Adressenfilterung, Firmware aktualisierbar, Ports on Demand, Ereignisprotokoll, Unterstützung für Access Control List (ACL), Quality of Service (QoS), Management Information Base (MIB), NTP-Zeitsynchronisation, Umgebungsüberwachung, Transparente NPIV-Modusunterstützung (N_Port ID Virtualization), RSCN-Unterstützung (Registered State Change Notification), dynamische Bereitstellung, redundante Lüfter, Fabric Shortest Path First (FSPF), Fabric-Device Management Interface (FDMI), Role-Based Access Control (RBAC), Dynamic path selection (DPS), Dynamic load sharing (DLS), Reliable Commit Service (RCS), Simple Name Server (SNS), Fibre Channel Authentication Protocol (FCAP), Power-on self-test (POST) |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 12 x 16Gb Fibre Channel SFP+ 12 x 16Gb Fibre Channel SFP+ Ports on Demand 1 x 100Base-TX RJ-45 Management 1 x seriell RJ-45 Management 1 x USB Type A |
| Stromversorgung | |
| Stromversorgungsgerät: | Internes Netzteil - Hot-Plug |
| Installierte Anzahl: | 1 |
| Max. unterstützte Anzahl: | 2 |
| Redundante Stromversorgung: | Optional |
| Plan für redundante Stromversorgung: | 1+1 (mit optionaler Stromversorgung) |
| Gestellte Leistung: | 150 Watt |
| Erforderliche Netzspannung: | Wechselstrom 120/230 V |
| Verschiedenes | |
| Zubehör im Lieferumfang: | 12 x 16Gb Fibre Channel SFP+ Short Wave Transceiver |
| Rackmontagesatz: | Mitgeliefert |
| Produktzertifizierungen: | EN55024, CISPR 22, FIPS 140-2 Level 2, ICES-003 Klasse A, RoHS, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, GB 9254-2008, VCCI Class A, KN22, KN24, CNS 13438, IEC/UL/CSA/EN 60950-1, EN 55022 Class A, GB 4943.1-2011, CNS 14336-1:99 |
| Software / Systemanforderungen | |
| Software inbegriffen: | Brocade Advanced Zoning, Brocade Adaptive Networking, Brocade EZ Switch, Brocade Full Fabric |
| Maße und Gewicht | |
| Breite: | 43.8 cm |
| Tiefe: | 44.3 cm |
| Höhe: | 4.3 cm |
| Gewicht: | 7.8 kg |
