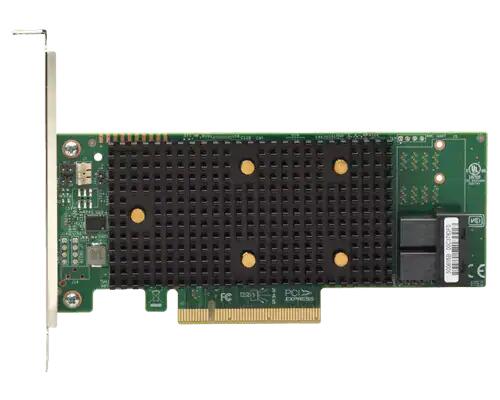

Lenovo ThinkSystem 430-8i SAS/SATA 12Gb HBA (7Y37A01088)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- Speicher-Controller - Plug-in-Karte - Low-Profile
- Bustyp: PCIe 3.0 x8
- Schnittstelle: SATA / SAS 12Gb/s
- Anzahl Kanäle: 8
Die Lenovo ThinkSystem 430-8i und 430-16i SAS/SATA 12Gb HBA sind hochleistungsfähige Host-Bus Adapter für die interne Speicherkonnektivität in ThinkSystem Servern. Sie integrieren die neuesten Erweiterungen der SAS-Technologie und bieten acht oder 16 Lanes mit 12 Gbit/s SAS. Mit einem flachen Formfaktor-Design bieten diese Adapter zwei oder vier x4 interne Mini-SAS-HD-Anschlüsse
| Allgemein | |
|---|---|
| Hersteller | Lenovo |
| Herst. Art. Nr. | 7Y37A01088 |
| EAN | 0889488433490 |
| Hauptmerkmale | |
|---|---|
| Produktbeschreibung | Lenovo ThinkSystem 430-8i - Speicher-Controller - SATA / SAS 12Gb/s - PCIe 3. 0 x8 |
| Gerätetyp | Speicher-Controller - Plug-in-Karte - Low-Profile |
| Bustyp | PCIe 3. 0 x8 |
| Schnittstelle | SATA / SAS 12Gb/s |
| Datenübertragungsrate | 12 Gbit/s |
| Unterstützte Geräte | Festplatte, Solid State-Laufwerk |
| Anzahl Kanäle | 8 |
| Max. Anzahl Speicherperipheriegeräte | 8 |
| Systemanforderungen | SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 mit Xen für AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6. 0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6. 5 (ESXi) |
| Entwickelt für | ThinkAgile HX1330 Appliance; HX1331 Certified Node; HX2330 Appliance; HX2331 Certified Node; HX7530 Appliance; HX7531 Certified Node; MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node; MX3331-H Certified Node; MX3530-H Hybrid Appliance; MX3531-H Hybrid Certified Node |
| Allgemein | |
|---|---|
| Gerätetyp | Speicher-Controller - Plug-in-Karte - Low-Profile |
| Host-Bus | PCIe 3. 0 x8 |
| Massenspeicher-Controller | |
|---|---|
| Schnittstelle | SATA / SAS 12Gb/s |
| Datenübertragungsrate | 12 Gbit/s |
| Unterstützte Geräte | Festplatte, Solid State-Laufwerk |
| Anzahl Kanäle | 8 |
| Max. Anzahl Speicherperipheriegeräte | 8 |
| Prozessor | LSI LSISAS3408 |
| Erweiterung/Konnektivität | |
|---|---|
| Schnittstellen | 2 x SAS 12Gb/s - 4x Mini SAS HD (SFF-8643) (innerhalb) |
| Verschiedenes | |
|---|---|
| Leistungsmerkmale | DDF compliant Configuration on Disk (COD), Cyclical Redundancy Check (CRC), S. M. A. R. T. Unterstützung |
| Kennzeichnung | EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
| Software / Systemanforderungen | |
|---|---|
| Erforderliches Betriebssystem | SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 mit Xen für AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6. 0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6. 5 (ESXi) |
| Umgebungsbedingungen | |
|---|---|
| Min Betriebstemperatur | 0 °C |
| Max. Betriebstemperatur | 55 °C |
| Zulässige Luftfeuchtigkeit im Betrieb | 20 - 90% (nicht kondensierend) |
| Informationen zur Kompatibilität | |
|---|---|
| Entwickelt für | Lenovo ThinkAgile HX1330 Appliance 7Z85 ¦ Lenovo ThinkAgile HX1331 Certified Node 7D52 ¦ Lenovo ThinkAgile HX2330 Appliance 7Z85 ¦ Lenovo ThinkAgile HX2331 Certified Node 7D52 ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 ¦ Lenovo ThinkAgile MX3330-F Appliance 7D19 ¦ Lenovo ThinkAgile MX3330-H Appliance 7D19 ¦ Lenovo ThinkAgile MX3331-F Certified Node 7D67 ¦ Lenovo ThinkAgile MX3331-H Certified Node 7D67 ¦ Lenovo ThinkAgile MX3530-H Hybrid Appliance 7D6B ¦ Lenovo ThinkAgile MX3531-H Hybrid Certified Node 7D66 ¦ Lenovo ThinkAgile VX 1U Certified Node 7Y93 ¦ Lenovo ThinkAgile VX 2U Certified Node 7Y94 ¦ Lenovo ThinkAgile VX Certified Node 7Y94 ¦ Lenovo ThinkAgile VX2320 Appliance 7Y93 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR530 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR860 V2 7Z60 ¦ Lenovo ThinkSystem SR950 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST50 ¦ Lenovo ThinkSystem ST550 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
