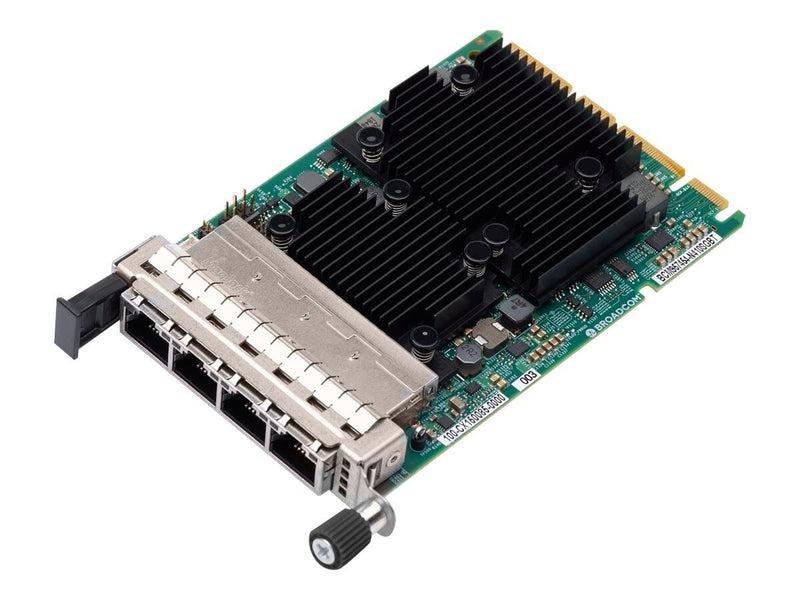

Lenovo ThinkSystem Ethernet Netzwerkadapter 4-Port, 10Gbit/s, RJ-45, Broadcom 57454, OCP
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- Netzwerkadapter, Plug-in-Karte
- OCP 3.0
- Schnittstellen: 4x 10GBase-T - RJ-45
- Datenübertragungsrate: 10 Gbps
Die ThinkSystem Broadcom 57454 10GBASE-T Ethernet-Adapter sind hochleistungsfähige 10 Gb Ethernet Adapter entweder im Standard-PCIe-Formfaktor oder im Open Compute Project (OCP) 3.0 SFF-Formfaktor. Sie bieten TruFlow™ intelligente Flussverarbeitung und unterstützen fortschrittliche Netzwerktechnologien wie RoCE v2, SDN, NFV und Virtualisierung.
| Allgemein | |
|---|---|
| Hersteller | Lenovo |
| Herst. Art. Nr. | 4XC7A08240 |
| EAN | 0889488497324 |
| Hauptmerkmale | |
|---|---|
| Produktbeschreibung | Lenovo ThinkSystem Broadcom 57454 - Netzwerkadapter - OCP 3. 0 - 10Gb Ethernet x 4 |
| Gerätetyp | Netzwerkadapter |
| Schnittstellentyp (Bustyp) | Open Compute Project mezzanine (OCP) 3. 0 |
| Ports | 10Gb Ethernet x 4 |
| Abmessungen (Breite x Tiefe x Höhe) | 11. 5 cm x 7. 6 cm |
| Verdrahtungstyp | Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol | GigE, 10 GigE |
| Datenübertragungsrate | 10 Gbps |
| Kapazität | Jumbo-Frame-Größe: 9600 |
| Netzwerk/Transportprotokoll | TCP/IP |
| Prozessor | 1 x Broadcom BCM57454 |
| Produktzertifizierungen | IEEE 802. 1Q, IEEE 802. 3ad (LACP), IEEE 802. 1Qbb, IEEE 802. 1Qaz, IEEE 802. 1Qau, IEEE 802. 1Qbg, IEEE 1588-2008 |
| Entwickelt für | ThinkAgile HX5530 Appliance; HX5531 Certified Node; HX7530 Appliance; HX7531 Certified Node; VX2330 Appliance; VX3330 Appliance; VX3331; VX3530-G Appliance; VX3575-G Integrated System; VX5530 Appliance; VX5575 Integrated System; VX7330-N Appliance; VX7530 Appliance; VX75XX Certified Node |
| Allgemein | |
|---|---|
| Gerätetyp | Netzwerkadapter |
| Schnittstellentyp (Bustyp) | Open Compute Project mezzanine (OCP) 3. 0 |
| Netzwerk | |
|---|---|
| Ports | 10Gb Ethernet x 4 |
| Anschlusstechnik | Kabelgebunden |
| Verdrahtungstyp | Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Datenübertragungsrate | 10 Gbps |
| Kapazität | Jumbo-Frame-Größe: 9600 |
| Netzwerk/Transportprotokoll | TCP/IP |
| Leistungsmerkmale | Wake on LAN (WOL), PXE-Unterstützung, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Edge Virtual Bridging (EVB), Accelerated Receive Flow Steering (RFS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Network Controller Sideband Interface (NC-SI), Link Aggregation, RDMA over Converged Ethernet (RoCE) v2, Function Level Reset (FLR), Software Defined Networking (SDN), VLAN Tagging, Network Function Virtualization (NFV), TruFlow, Enhanced Transmission Selection (ETS), SMBus 2. 0, Flussbeschleunigung |
| Produktzertifizierungen | IEEE 802. 1Q, IEEE 802. 3ad (LACP), IEEE 802. 1Qbb, IEEE 802. 1Qaz, IEEE 802. 1Qau, IEEE 802. 1Qbg, IEEE 1588-2008 |
| Prozessor / Arbeitsspeicher | |
|---|---|
| Prozessor | 1 x Broadcom BCM57454 |
| Erweiterung/Konnektivität | |
|---|---|
| Schnittstellen | 4 x 10GBase-T - RJ-45 |
| Verschiedenes | |
|---|---|
| Zubehör im Lieferumfang | Low profile Slotblech |
| Kennzeichnung | BSMI CNS 13438 Class B, ICES-003, RRL, CSA 22. 2 No. 950, ICES-003 Class B, EN55024 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, cTUVus, UL 94, KN22, KN24, EN 55022:2010+AC:2011 Class B, UL 1977, UL 796, CNS 14336 Class B |
| Maße und Gewicht | |
|---|---|
| Tiefe | 11. 5 cm |
| Höhe | 7. 6 cm |
| Umgebungsbedingungen | |
|---|---|
| Min Betriebstemperatur | 0 °C |
| Max. Betriebstemperatur | 55 °C |
| Zulässige Luftfeuchtigkeit im Betrieb | 5 - 95 % (nicht kondensierend) |
| Informationen zur Kompatibilität | |
|---|---|
| Entwickelt für | Lenovo ThinkAgile HX5530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX5531 Certified Node 7Z84 ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D32 |
