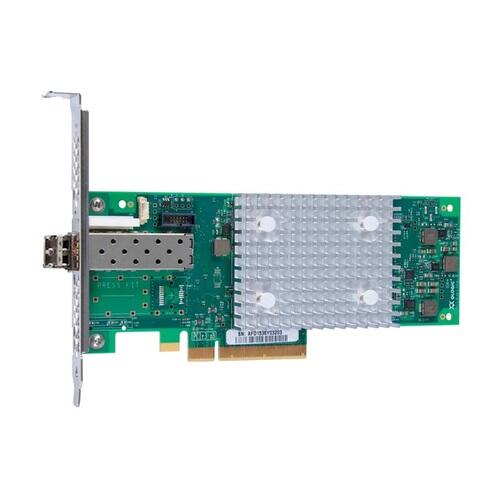

Lenovo Fibre Channel Host Bus Adapter 1-Port, 16Gbit/s, QLogic Enhanced Gen5
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- Hostbus-Adapter, Plug-in-Karte
- PCI Express 3.0 x8
- Schnittstellen: 1x 16Gb Fibre Channel - SFP+
- Data Link Protocol: 4GB FC, 8GB FC, 16Gb FC
- FC SW SFP+ Transceiver installiert
Die QLogic Enhanced Generation 5 (Gen 5) 16 Gb Fibre Channel (FC) Single- und Dual-Port Host Bus Adapter (HBAs) für Lenovo ThinkSystem und System x Server bieten branchenführende native FC Leistung bei extrem niedriger CPU-Auslastung und voller Hardware-Offloads.
Die erweiterte Gen 5 FC-Technologie bietet fortschrittliche Speichernetzwerkfunktionen, die auch die anspruchsvollsten Virtualisierungs- und Private-Cloud-Umgebungen unterstützen und dabei die Möglichkeiten von 16-Gbit-FC (16GFC) und All-Flash-Arrays (AFAs) voll auszuschöpfen. Leistungsstarke Management-Tools automatisieren und vereinfachen die SAN-Bereitstellung und tragen so zur Reduzierung von Kosten und Komplexität bei, während die unübertroffene 16-Gbit/s-Leistung potenzielle E/A-Engpässe in den leistungsstarken Multiprozessor- und Multicore-Servern von heute eliminiert.
| Allgemein | |
|---|---|
| Hersteller | Lenovo |
| Herst. Art. Nr. | 01CV750 |
| EAN | 0889488417315 |
| Hauptmerkmale | |
|---|---|
| Produktbeschreibung | QLogic 16Gb FC Single-Port HBA (Enhanced Gen 5) - Hostbus-Adapter - PCIe 3. 0 x8 - 16Gb Fibre Channel |
| Gerätetyp | Hostbus-Adapter |
| Formfaktor | Plug-in-Karte - Low-Profile |
| Schnittstellentyp (Bustyp) | PCI Express 3. 0 x8 |
| Ports | 16Gb Fibre Channel |
| Abmessungen (Breite x Tiefe x Höhe) | 16. 8 cm x 6. 9 cm |
| Data Link Protocol | 4Gb Fibre Channel, 8 GB Fibre Channel, 16Gb Fibre Channel |
| Datenübertragungsrate | 14. 025 Gbps |
| Leistung | Maximaler IOPS: 1300000 |
| Systemanforderungen | Microsoft Windows Server 2012, Red Hat Enterprise Linux 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware vSphere 5. 5 Update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5. 5 update 3, VMware vSphere 6. 0, VMware vSphere 6. 0 update 1, VMware vSphere 6. 0 update 2 |
| Entwickelt für | NeXtScale nx360 M5; System x3500 M5; x3550 M5; x3650 M5; x3750 M4; x3850 X6; x3950 X6; ThinkSystem SR250 7Y51; SR530 7X08; SR590; SR630 7X02; SR630 V2 7Z71; SR645 7D2X; SR650 7X06; SR650 V2 7D15, 7Z73; SR665 7D2V, 7D2W; SR850 V2 7D32; ST550 7X10; ST650 V2 7Z74, 7Z75 |
| Allgemein | |
|---|---|
| Gerätetyp | Hostbus-Adapter |
| Formfaktor | Plug-in-Karte - Low-Profile |
| Schnittstellentyp (Bustyp) | PCI Express 3. 0 x8 |
| Netzwerk | |
|---|---|
| Ports | 16Gb Fibre Channel |
| Anschlusstechnik | Kabelgebunden |
| Data Link Protocol | 4Gb Fibre Channel, 8 GB Fibre Channel, 16Gb Fibre Channel |
| Fibre Channel | FC-GS-2, FC-GS-3, FC-Tape, FCP-2, FC-PI-5, SCSI-FCP |
| Datenübertragungsrate | 14. 025 Gbps |
| Leistung | Maximaler IOPS: 1300000 |
| Leistungsmerkmale | Quality of Service (QoS), Forward Error Correction (FEC), Extended Message-Signaled Interrupts (MSI-X), Fabric-Assigned port WorldWide Name (FA-WWN), Fabric-ased Boot LUN Discovery (F-BLD), Link-Kabel Lichtsignal |
| Erweiterung/Konnektivität | |
|---|---|
| Schnittstellen | 1 x 16Gb Fibre Channel |
| Verschiedenes | |
|---|---|
| Zubehör im Lieferumfang | Low profile Slotblech, Halterung, volle Höhe, 16 Gb Kurzwellen-Fibre-Channel SFP+ LC Empfänger |
| Kennzeichnung | ICES-003 Klasse A, UL 60950-1 Second Edition, FCC Part 15 A, BSMI Class A, KCC Class A, VCCI Class A, EN55022:2010 Class A, AS/NZS CISPR22:2009+A1 Class A, EN 55024:2010, CAN/CSA C22. 2 No. 60950-1-07 Second Edition 2011-12, EN60950-1:2006 +A11+A1+A12 (2nd Edition) |
| Software / Systemanforderungen | |
|---|---|
| Erforderliches Betriebssystem | Microsoft Windows Server 2012, Red Hat Enterprise Linux 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware vSphere 5. 5 Update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5. 5 update 3, VMware vSphere 6. 0, VMware vSphere 6. 0 update 1, VMware vSphere 6. 0 update 2 |
| Maße und Gewicht | |
|---|---|
| Tiefe | 16. 8 cm |
| Höhe | 6. 9 cm |
| Umgebungsbedingungen | |
|---|---|
| Min Betriebstemperatur | 0 °C |
| Max. Betriebstemperatur | 55 °C |
| Zulässige Luftfeuchtigkeit im Betrieb | 10 - 90 % (nicht-kondensierend) |
| Informationen zur Kompatibilität | |
|---|---|
| Entwickelt für | Lenovo NeXtScale nx360 M5 ¦ Lenovo System x3500 M5 ¦ Lenovo System x3550 M5 ¦ Lenovo System x3650 M5 ¦ Lenovo System x3750 M4 ¦ Lenovo System x3850 X6 ¦ Lenovo System x3950 X6 ¦ Lenovo ThinkSystem SR250 7Y51 ¦ Lenovo ThinkSystem SR530 7X08 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 7X02 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 7X06 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem ST550 7X10 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
