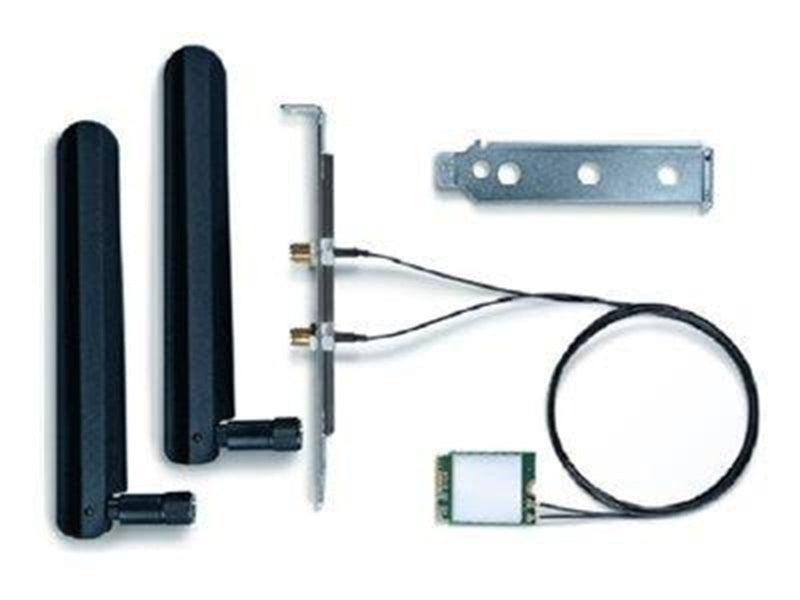

Intel Wi-Fi 6E AX210 (Gig+) Extended Temperature IoT Industrial Kit

Original price €230,01 - Original price €230,01
Original price
€230,01
€230,01 - €230,01
Current price €230,01
Availability:
In stock

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

Der Intel Wi-Fi 6E AX210 Industrial Netzwerkadapter wurde entwickelt, um den Anforderungen industrieller Umgebungen gerecht zu werden, und bietet zuverlässige drahtlose Konnektivität und Leistung. Durch die Unterstützung der Wi-Fi 6E-Technologie bietet er eine umfassende Abdeckung der 2,4-GHz-, 5-GHz- und 6-GHz-Bänder und sorgt so für schnelle und zuverlässige Verbindungen. Der Adapter verfügt über eine hohe Datenübertragungsrate von bis zu 2,4 Gbit/s und eignet sich damit für bandbreitenintensive Anwendungen.Sicherheit wird beim AX210 Industrial groß geschrieben, denn er verfügt über fortschrittliche Verschlüsselungsalgorithmen wie WPA3 zum Schutz vor unbefugtem Zugriff und Datenmissbrauch. Darüber hinaus erfüllt er mehrere Industriestandards, darunter FIPS 140-2 und FISMA, um sicherzustellen, dass er hohen Sicherheitsanforderungen gerecht wird. Darüber hinaus ist der Adapter für den Einsatz unter extremen Bedingungen ausgelegt und kann bei Temperaturen von -40 °C bis 85 °C betrieben werden, was ihn zu einer zuverlässigen Wahl für jede industrielle Umgebung macht.Mit Funktionen wie 2x2 MU-MIMO-Technologie, OFDMA und Unterstützung für eine Kanalbandbreite von 160 MHz ist der Intel Wi-Fi 6E AX210 Industrial Network Adapter eine ideale Lösung für Unternehmen, die ihre Netzwerkinfrastruktur mit einer Technologie aufrüsten möchten, die sowohl Geschwindigkeit als auch Sicherheit bietet.

Generell
Hersteller: Intel
Waren-Nr.: 3263524
Modell: AX210.NGWGI.NVK
EAN: 5032037235884
Zum Hersteller::
Kontaktieren Sie den Hersteller: /...
Produktbeschreibung: Intel Wi-Fi 6E AX210 Industrial - 2. Generation - IoT Industrial Kit - Netzwerkadapter - M.2 2230 (A-E Key)
Gerätetyp: Netzwerkadapter
Formfaktor: Plug-in-Karte
Schnittstellentyp (Bustyp): M.2 2230 (A-E Key)
Abmessungen (Breite x Tiefe x Höhe): 2.2 cm x 3 cm x 0.24 cm
Gewicht: 3.2 g
Data Link Protocol: Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3
Datenübertragungsrate: 2.4 Gbps
Leistung: Channel-Bandbreite: 160 MHz
Kapazität: Streams: 8
Netzwerk/Transportprotokoll: TCP
Frequenzband: 2.4 GHz, 5 GHz, 6 GHz
Produktzertifizierungen: Wi-Fi CERTIFIED 6, W-Lan ZERTIFIZIERT, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, IEEE 802.11-2016, Bluetooth 5.3
Systemanforderungen: Windows 10 Enterprise LTSC, Linux

Allgemein
Gerätetyp: Netzwerkadapter
Formfaktor: Plug-in-Karte
Schnittstellentyp (Bustyp): M.2 2230 (A-E Key)
Netzwerk
Anschlusstechnik: Kabellos
Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Spread-Spectrum-Methode: OFDMA
Datenübertragungsrate: 2.4 Gbps
Leistung: Channel-Bandbreite: 160 MHz
Kapazität: Streams: 8
Netzwerk/Transportprotokoll: TCP
Leitungskodierformat: 1024 QAM, OFDMA
Frequenzband: 2.4 GHz, 5 GHz, 6 GHz
Leistungsmerkmale: 2x2 Mu-Mimo-Technologie, UEFI-Support, TWT, WMM-Unterstützung, WMM Energiesparmodus, Wi-Fi Direct, Wi-Fi Agile Multiband, Wi-Fi Timesync, 802.1x-Authentifizierung
Produktzertifizierungen: Wi-Fi CERTIFIED 6, W-Lan ZERTIFIZIERT, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, IEEE 802.11-2016, Bluetooth 5.3
Antenne
Antenne: Extern abnehmbar
Antennenzahl: 2
Erweiterung/Konnektivität
Schnittstellen: 2 x Antenne - SMA - männlich
Verschiedenes
Enthaltene Kabel: 1 x HF-Koaxialkabel (extern) - 60.9 cm
Verschlüsselungsalgorithmus: WPA3, WPA2, WPS, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-SIM, EAP-AKA, 128-bit AES-CCMP, 256-bit AES-GCMP
Kennzeichnung: UL, cUL, CB, FIPS, IEC 60950-1, FIPS 140-2, FISMA
Software / Systemanforderungen
Erforderliches Betriebssystem: Windows 10 Enterprise LTSC, Linux
Maße und Gewicht
Breite: 2.2 cm
Tiefe: 3 cm
Höhe: 0.24 cm
Gewicht: 3.2 g
Abmessungen & Gewicht (Transport)
Transportbreite: 20.5 cm
Transporttiefe: 2.6 cm
Transporthöhe: 14.5 cm
Transportgewicht: 143.5 g
