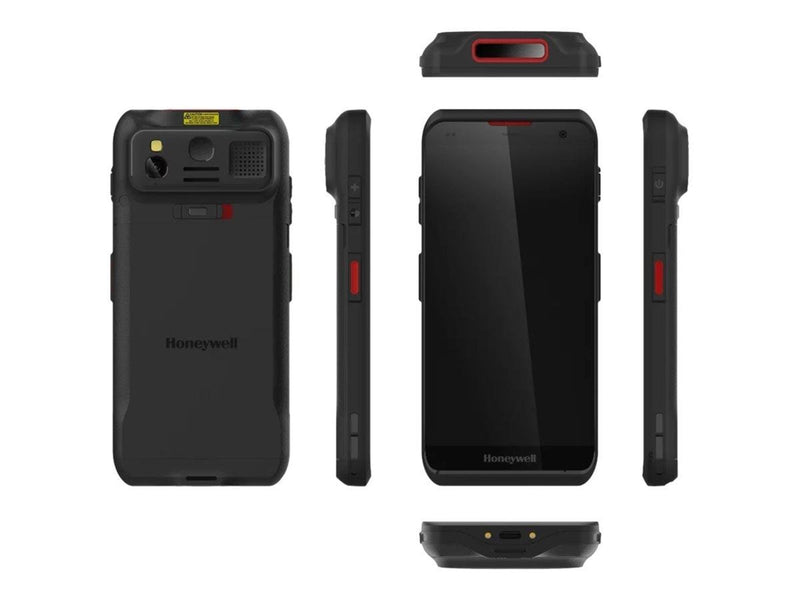

Honeywell ScanPal EDA52 - data collection terminal - Android 11 - 64 GB - 5.5"
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Datenerfassungsterminal, robust, Android 11, 64 GB, 14 cm (5.5") (1440 x 720), Kamera auf RĂĽck- und Vorderseite, Barcodeleser, (2D-Imager), microSD-Steckplatz, Wi-Fi 5, NFC, Bluetooth
A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day.
The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication.
The EDA52 incorporates the all-new and powerful Honeywell S0703 scan engine which enables fast reading even of damaged or incomplete barcodes.
Outfitted with a rugged housing and IP67 rated sealing, the EDA52 can operate under rough usage and demanding environmental conditions. A 4500mAh battery allows for prolonged and uninterrupted use between each charge. The battery is also easily removable and supports quick charge 3.0.
The EDA52 (WWAN version) supports one nano SIM and one e-Sim simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards.
The EDA52 is built on Android 11 and can be upgraded to Android 13 minimizing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs.
Generell
| Hersteller | Honeywell |
| Waren-Nr. | 3306075 |
| Modell | EDA52-00AE61N21RK |
| EAN | 5704174790884 |
| Zum Hersteller | honeywell.com |
| Produktbeschreibung | Honeywell ScanPal EDA52 - Datenerfassungsterminal - Android 11 - 64 GB - 14 cm (5.5") |
| Produkttyp | Datenerfassungsterminal - robust |
| Betriebssystem | Android 11 |
| Bildschirm | 14 cm (5.5") LED-Hintergrundbeleuchtung - 1440 x 720 - Multi-Touch |
| Prozessor | Qualcomm Snapdragon SM6115 (8 Kerne) |
| Prozessor-Taktfrequenz | 2 GHz |
| Speicherkapazität | 64 GB |
| RAM | 4 GB |
| UnterstĂĽtzte Flash-Speicherkarten | microSD, microSDHC, microSDXC |
| Wireless Connectivity | 802.11a/b/g/n/ac, NFC, Bluetooth 5.1 |
| Hintere Kamera | 13 Megapixel Fokus: automatisch |
| Vordere Kamera | 5 Megapixel |
| Barcodelesegerät | Ja (2D-Imager) |
| Akkubetriebszeit | Bis zu 12 Stunden |
| Abmessungen (Breite x Tiefe x Höhe) | 7.5 cm x 1.44 cm x 15.9 cm |
| Gewicht | 258 g |
Technische Daten
| Allgemein | |
| Produkttyp | Datenerfassungsterminal - robust |
| Betriebssystem | Android 11 |
| Bildschirm | |
| Typ | 14 cm (5.5") - LED-Hintergrundbeleuchtung |
| Auflösung | 1440 x 720 |
| Touchscreen | Multi-Touch |
| Merkmale | Glass Film Film (GFF), Corning Gorilla Glass 5, kapazitiver Touchscreen |
| Prozessor | |
| Prozessor | Qualcomm Snapdragon SM6115 |
| Prozessor-Taktfrequenz | 2 GHz |
| Anz. der Kerne | 8 Kerne |
| Arbeitsspeicher | |
| Speicherkapazität | 64 GB |
| RAM | 4 GB |
| UnterstĂĽtzte Flash-Speicherkarten | microSD, microSDHC, microSDXC |
| Max. unterstützte Kapazität | 128 GB |
| Kommunikationsformen | |
| Wireless Connectivity | 802.11a/b/g/n/ac, NFC, Bluetooth 5.1 |
| Sicherheitsprotokolle & Merkmale | LEAP, WEP, TLS, WPA, WPA2, WPA2-PSK, TTLS, PEAP, WPA2-Enterprise, OPEN, PWD, WPA3, WPA3-Enterprise, WPA3-SAE, WPA3-OWE |
| Hintere Kamera | |
| Sensorauflösung | 13 Megapixel |
| Fokuseinstellung | Automatisch |
| Vordere Kamera | |
| Sensorauflösung | 5 Megapixel |
| Eingabegerät | |
| Typ | Touchscreen |
| Tastenanzahl | 5 |
| Barcodes | |
| Barcodelesegerät | Ja |
| Scanelementtyp | 2D-Imager |
| Software | |
| Vorinstallierte Software | Google Mobile Services |
| Erweiterung und Konnektivität | |
| Erweiterung Steckplatz | 1 x microSD |
| Schnittstellen | USB-C 2-Pin-Anschluss |
| Batterie | |
| Technologie | Lithium-Ionen |
| Kapazität | 4500 mAh |
| Betriebszeit | Bis zu 12 Stunden |
| Ladezeit | 3.5 Stunde(n) |
| Verschiedenes | |
| Sensoren | Beschleunigungssensor, Näherungssensor, Lichtsensor |
| Leistungsmerkmale | Lautstärkeregler, Firmware upgrade-fähig, Scantaste, MU-MIMO-Technologie, QC3.0 Quick Charge, ESD-Schutz bis zu 8 kV (direkt), ESD-Schutz bis zu 15 kV (Luft), entfernbare Batterie, Honeywell S0703 Imager, 1,3 m Fallhöhe auf Beton resistent, Echtzeituhr (RTC) mit 10 Minuten Backup (Superkondensator) |
| Kennzeichnung | MIL-STD 810G, IP67, IEEE 802.11ac, SAE, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11r, WPA2-PSK, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11u, IEEE 802.11w, IEEE 802.11v, WEP, WPA, WPA2, WPA3 |
| Abmessungen und Gewicht | |
| Breite | 7.5 cm |
| Tiefe | 1.44 cm |
| Höhe | 15.9 cm |
| Gewicht | 258 g |
| Umgebungsbedingungen | |
| Min Betriebstemperatur | 20 °C |
| Max. Betriebstemperatur | 50 °C |
| Zulässige Luftfeuchtigkeit im Betrieb | 5 - 90% (nicht kondensierend) |
| Min. Lagertemperatur | 30 °C |
| Max. Lagertemperatur | 70 °C |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
