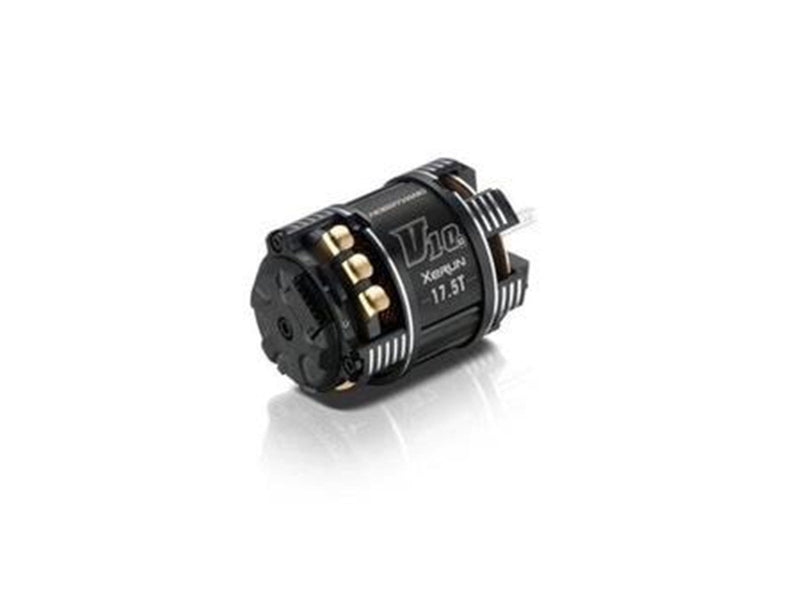

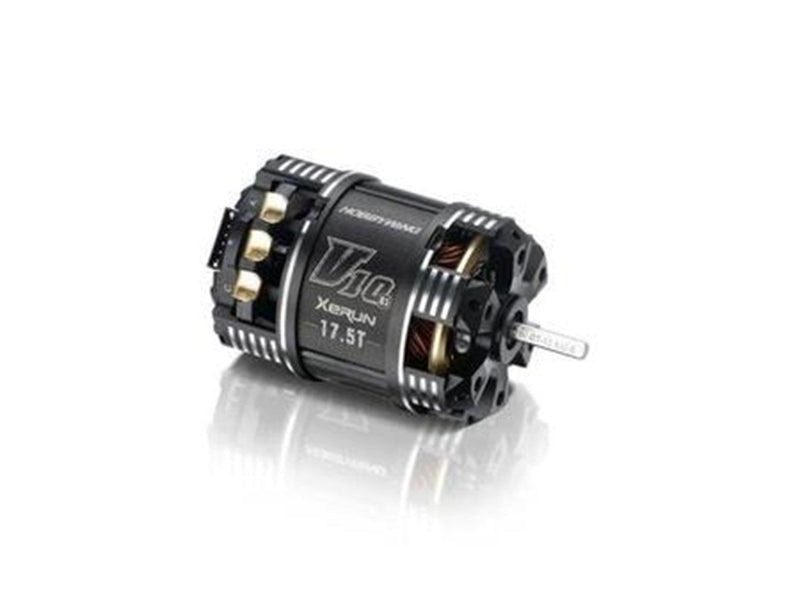

Hobbywing Xerun V10 G3 5.5T 5900KV Brushless Motor

The Hobbywing G3 brushless motors represent the next evolution in RC racing technology, built to provide exceptional performance and durability for Modified and Stock class vehicles. As the successor to the V10 G2, the G3 motors are designed with a completely new, lightweight structure, improving both speed and efficiency. The Stock Spec versions offer 4% higher torque and 16% higher KV values compared to their V10 G2 counterparts, making them a formidable choice for Stock class racing.

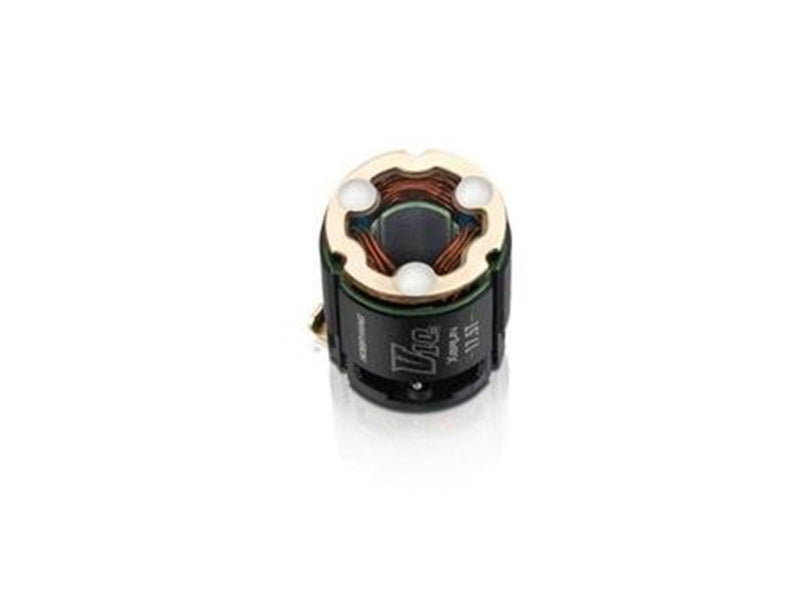

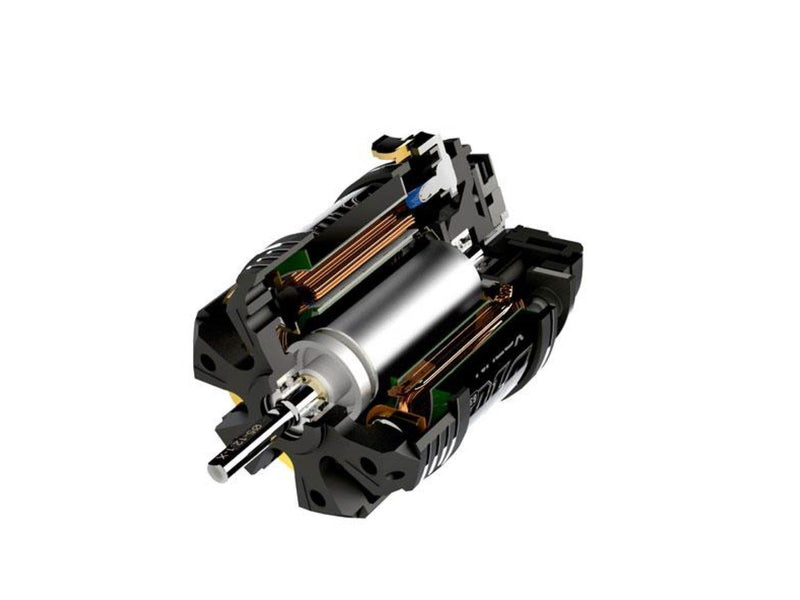

A high-precision built-in hall sensor, coupled with a precisely balanced rotor, ensures remarkable linearity during operation, allowing for smooth and responsive throttle control. The G3 motors are incredibly lightweight, with the Modified version weighing just 161 g and the Stock version 132 g—an 11% and 21% weight reduction, respectively, compared to the V10 G2. This weight reduction allows for easier vehicle balance adjustments, providing drivers with better control and handling.

The G3 motors feature asymmetrical bearings for enhanced load-carrying capacity and reduced drag. The front bearing is 26% larger than in the G2 version, while the rear bearing is 6% smaller, ensuring smoother and more stable operation. These design improvements contribute to the overall smoother performance of the motor.

Heat dissipation is optimized through a special housing design that exposes the stator core to air, ensuring maximum cooling. Large openings on the front and rear end plates provide excellent airflow, while smaller openings on motors from 5.5T to 8.5T prevent dirt and debris from entering, which is ideal for off-road applications. Users can purchase additional end plates and customize them based on their needs.

The modular design of the G3 motor allows for easy disassembly, enabling regular cleaning and maintenance to extend its lifespan and maintain peak performance. Additionally, the mechanical timing system allows for precise and smooth adjustments, ensuring that racers can fine-tune the motor to their specific needs. Anti-slip lines on the back of the motor keep timing settings stable and consistent.

The use of high-quality materials—such as a heat-resistant stator core, pure copper windings, durable bearings, and precision soldering fields—guarantees the G3 motor’s outstanding durability and performance under the most demanding conditions.

**Specifications:**
- Model: 30401106
- KV: 9450
- LiPo Power: 1S
- Winding: 3.5T
- Weight: 163 g
- Diameter: 35.9 mm
- Length: 51.2 mm
- Shaft Length: 13.3 mm
- Shaft Diameter: 3.17 mm
- Maximum Power: 462 W
- Peak Current: 126 A
- Timing: 20-50
- Rotor: Φ5-12.1
- Application: 1:10 Modified Class, 1:12 On-Road Racing
