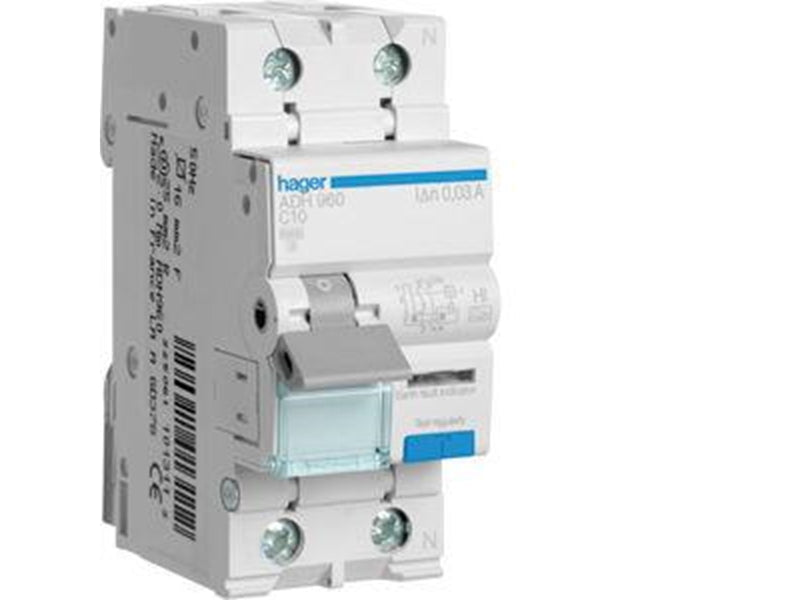

Hager Rcbo electronic rcd 1p+n 13a/c hi

Name: Hager Rcbo electronic rcd 1p+n 13a/c hi
Brand: Hager
SKU: 2748823
Price: 590.41 EUR
Availability: InStock

€590,41 - €590,41

€590,41

€590,41 - €590,41

€590,41

Availability:

12 in stock, ready to be shipped

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

RCBO 1-polig + Neutralleiter 6kA C-13A 30mA HI Fehlerstromschutzschalter Typ HI mit Überstromschutz13ADoppelpolig (1P + N) Breite von 2 ModulenEmpfindlichkeit - 30mABemessungsspannung: 230V / 50HzSchaltvermögen - 6kAErfüllt IEC61009Auslösekurve - CKurzschlussauslösungsklasse - Klasse HiBietet Schutz bei Überlast, Kurzschluss und ErdschlussfehlernGeeignet für elektrisch gestörte Netze mit gepulsten DC-Transienten und Harmonischen

Günstigste Versandoption 4,99 €

Verfügbar - 3-5 Werktage Lieferzeit

HPFI / Combination circuit breaker 1P+N 13A/C Hi Product description: The combination circuit breaker is a compact unit that ensures protection against overload, short-circuit, and ground fault. It protects people and animals from electric shock in residential and commercial buildings. It also protects property from fire in case of insulation faults. Additionally, the Hi version protects against unwanted operational disturbances from pulsating and transient leakage currents from capacitive loads - lightning transients ol Technical data: Trip curve: C Poles: 2 poles The neutral is located on the right side Rated current (In): 13 A Rated voltage (Un): 230V +10%/-15% Nominal tripping current (Idn): 30mA Sensitivity Class A Frequency: 50Hz Nominal breaking capacity: 6kA according to EN61009-1 IP protection rating: IP2x mounted in enclosure Temperature: 30°C according to EN61009-1 Pollution degree :2 according to EN61009-1 The combination circuit breakers are all with one pole and neutral - in a two-module width (36mm) Technical specifications:Rated current (A):13Trip curve:CNumber of poles :1P+NFault tripping current(mA) :30

Generell

Hersteller	Hager
Waren-Nr.	2748823
Modell	ADH963
EAN	3250611013129
AC Eingangsspannung	240 V
Konformitätsbescheinigungen	RoHS
Anzahl	1

Technische Daten

Energie
AC Eingangsspannung	240 V
Technische Details
Konformitätsbescheinigungen	RoHS
Lieferumfang
Anzahl	1

Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
