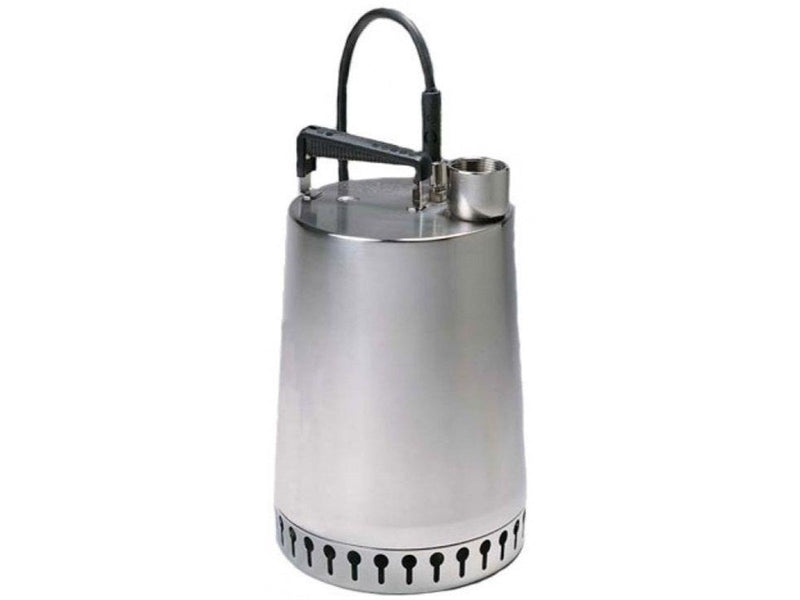

Grundfos unilift ap 12.40.06.1 1x230v 10m sch

Grundfos UNILIFT drainage pump AP 12.40.06.1 10m SCH Product description: Unilift AP12.40.06.1 Submersible drainage pump Vertical single-stage submersible pump in stainless steel with vertical outlet and integrated 1-phase fully enclosed submersible motor in insulation class F with thermal overload protection. The pump is equipped with an inlet sieve.The impeller is a SEMI-OPEN impeller for 12 mm-free passage suitable for pumping groundwater, surface water, rainwater and similar liquids.The pump has a double shaft seal and an internally oil-filled chamber filled with non-toxic special oil.The pump has a riser pipe, cooling jacket for continuous cooling of the motor using the pumped liquid and maintenance-free, lifetime-lubricated track ball bearings.The pump is ready to use as it is supplied with carrying handle and 10 m supply cable which comes fitted with plug socket, sealed glass material in the base to prevent moisture from entering into stator windings.Liquid:Liquid temperature range:0 .. 55 °CTechnical:Impeller type:SEMI-OPENMax particle size:12 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr .4301Impeller:AISI304Installation:Pump outlet :Rp11/2Max installation depth :10 mElectrical data :Motor type:PSCPower consumption - P1 :0 .9 kWNominal voltage :230 VNominal current :4 .4 ACos phi - power factor :0 .99Rated speed :2785 rpmCapacitor size - during operation16 F /400 V Enclosure class (IEC34-5):68Insulation class (IEC85):FCable length :10 mType of cable plug: SchukoOthers:Net weight :12 kgGross weight :12.5 kg
