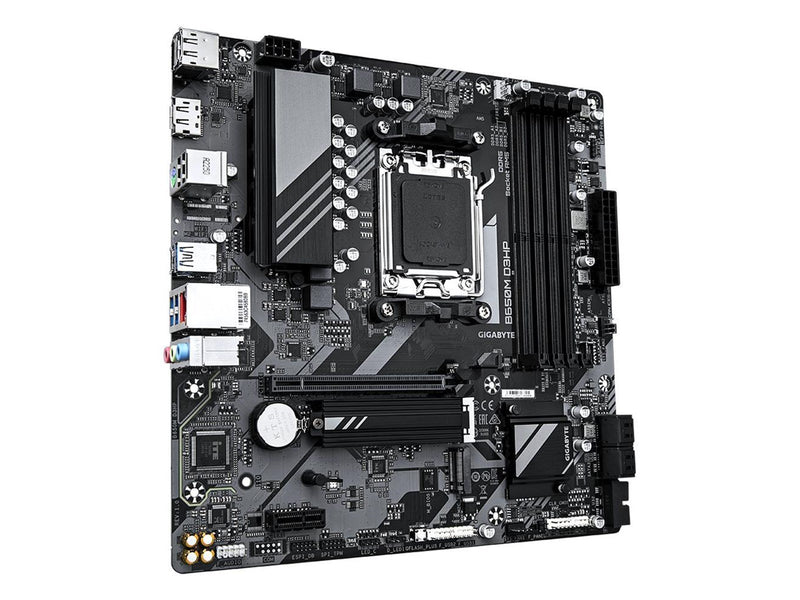

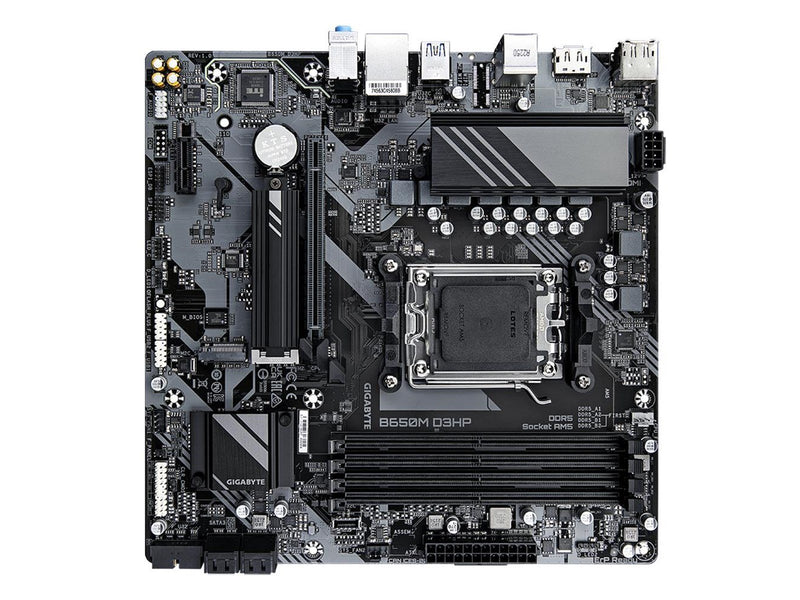

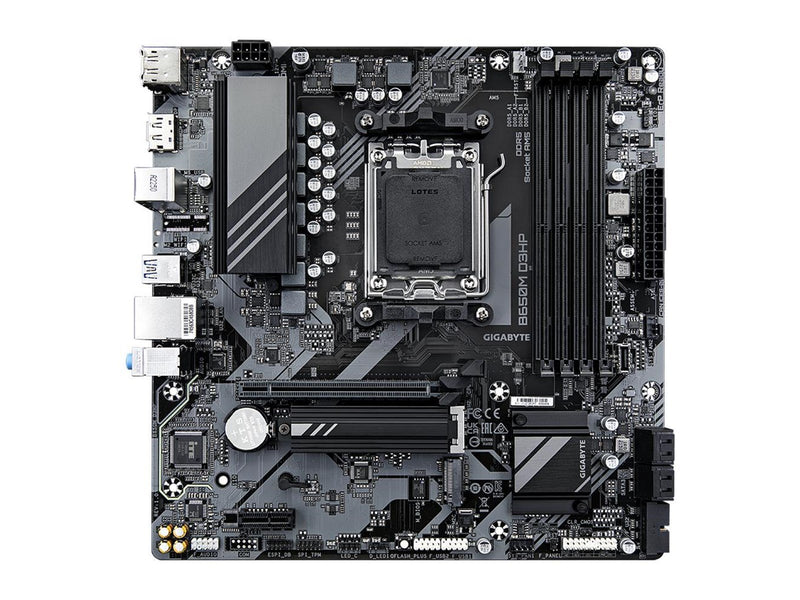

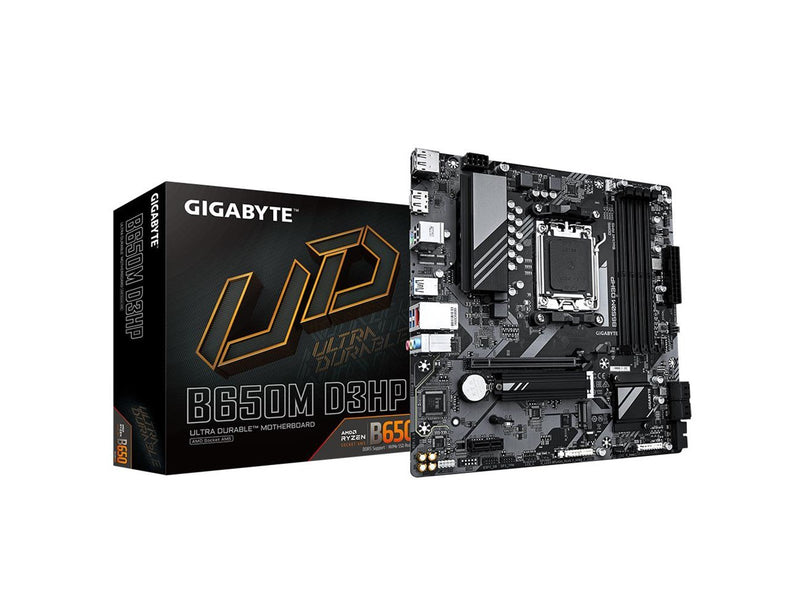

GIGABYTE B650M D3HP Mainboard - AMD B650 - AMD AM5 socket - DDR5 RAM - Micro-ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | GIGABYTE |
| Waren-Nr.: | 3229092 |
| Modell: | B650M D3HP |
| EAN: | 4719331857851 |
| Zum Hersteller:: | -... |
| Produktbeschreibung: | Gigabyte B650M D3HP - 1.0 - Motherboard - micro ATX - Socket AM5 - AMD B650 |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | AMD B650 |
| Prozessorsockel: | 1 x Socket AM5 |
| Kompatible Prozessoren: | Ryzen (unterstützt Ryzen 7000 Series) |
| Max. RAM-Größe: | 128 GB |
| Unterstütztes RAM: | 4 DIMM-Steckplätze - DDR5, non-ECC, ungepuffert |
| Massenspeicher-Schnittstellen: | 4 x SATA-600 (RAID), 2 x M.2 |
| USB-/FireWire-Anschlüsse: | 1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste) |
| Audio: | HD Audio (8-Kanal) |
| LAN: | 2.5 Gigabit Ethernet |
| Allgemein | |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | AMD B650 |
| Prozessorsockel: | Socket AM5 |
| Max. Anz. Prozessoren: | 1 |
| Kompatible Prozessoren: | Ryzen (unterstützt Ryzen 7000 Series) |
| Unterstützter RAM | |
| Max. Größe: | 128 GB |
| Technologie: | DDR5 |
| Bustakt: | 4800 MHz, 5200 MHz, 5600 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7600 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung: | Non-ECC |
| Registriert oder gepuffert: | Ungepuffert |
| Besonderheiten: | Zwei-Kanal-Speicherarchitektur, AMD EXPO Technology, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Typ: | HD Audio (8-Kanal) |
| Kompatibilität: | High-Definition-Audio |
| LAN | |
| Netzwerkschnittstellen: | 2.5 Gigabit Ethernet |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze: | 1 x CPU 4 x DIMM 288-polig 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 M.2 socket (2580 M.2 Key M Steckplatz) M.2 socket (2280/25.110 M.2 Key M Slot) |
| Speicherschnittstellen: | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -anschlussstellen: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |

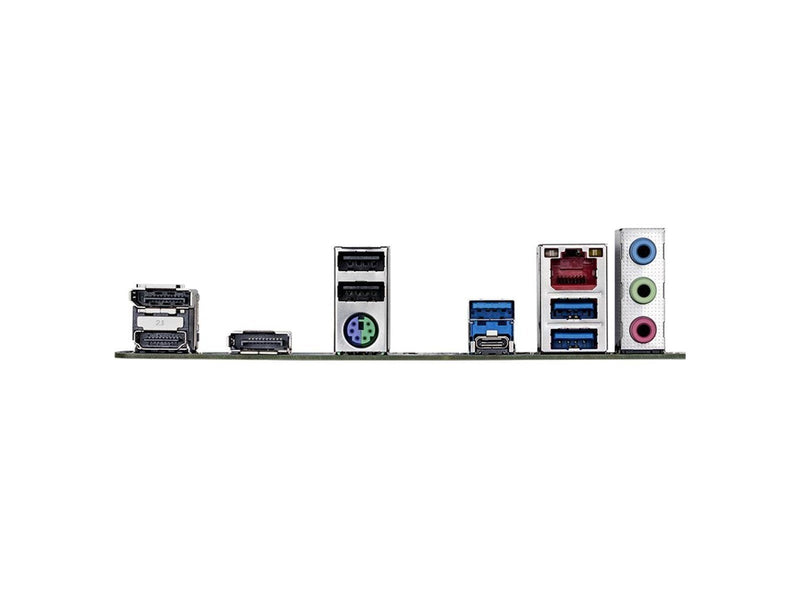

| Schnittstellen: | 1 x HDMI 2 x DisplayPort 1 x Audio-Ausgang/Eingang - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker 1 x Mikrofon - Mini-Klinkenstecker 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x PS/2-Tastatur/-maus 1 x LAN (2.5Gigabit Ethernet) |
| Interne Schnittstellen: | 4 x USB 2.0 - Stiftleiste 2 x USB 3.2 Gen 1 - Stiftleiste 1 x USB-C 3.2 Gen 1 - Stiftleiste 1 x Audio - Stiftleiste 1 x SPI - Stiftleiste |
| Stromanschlüsse: | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ: | AMI |
| BIOS-Funktionen: | UEFI BIOS, PnP 1.0a Support, DMI 2.7-Unterstützung, WfM 2.0-Unterstützung, Unterstützung von SMBIOS 2.7, ACPI 5.0-Unterstützung |
| Hardwareüberwachung: | Warnung bei Lüfterausfall, Erkennung der Lüfterdrehzahl, Temperaturerkennung, Systemspannung |
| Hardwarefeatures: | Q-Flash Plus, Q-Flash, 5+2+2 Phase Power Design, GIGABYTE Smart Fan 6, PCIe EZ-Verriegelung, RGB FUSION, High-End-Audiokondensatoren, Audio Noise Guard, Ultra Durable |
