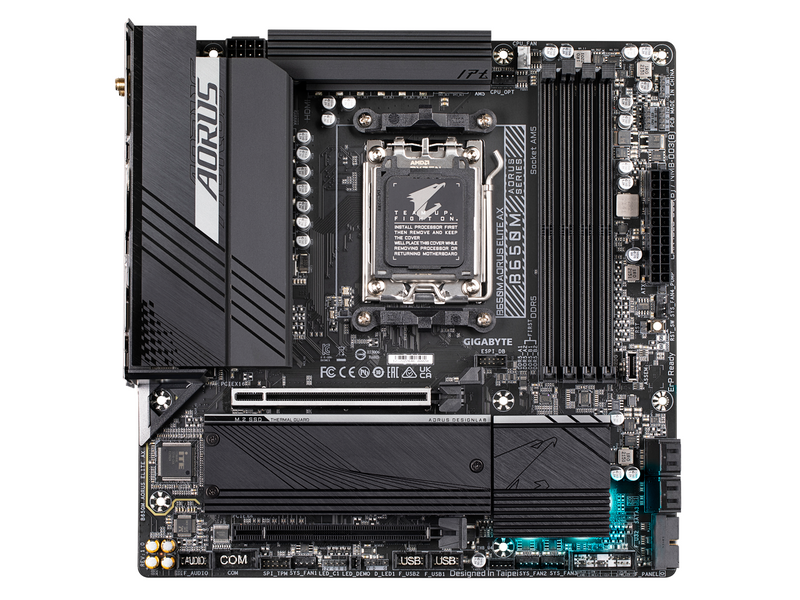

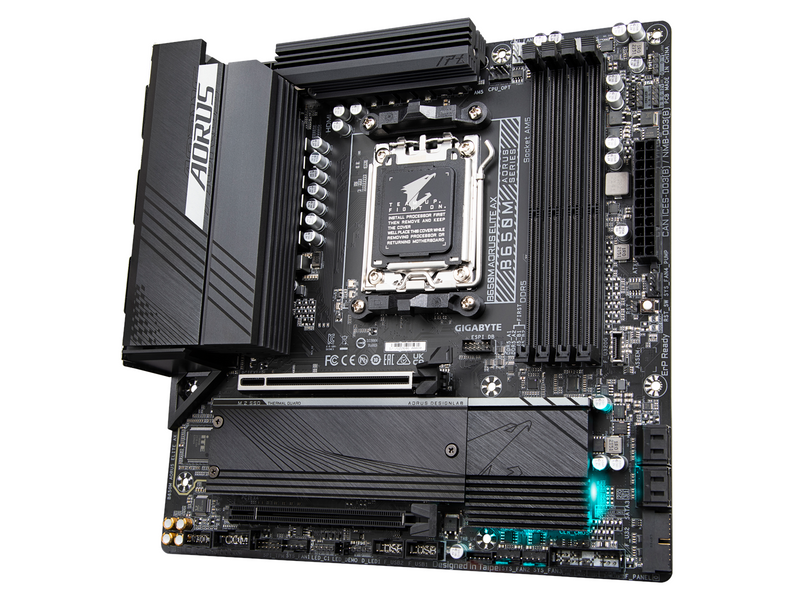

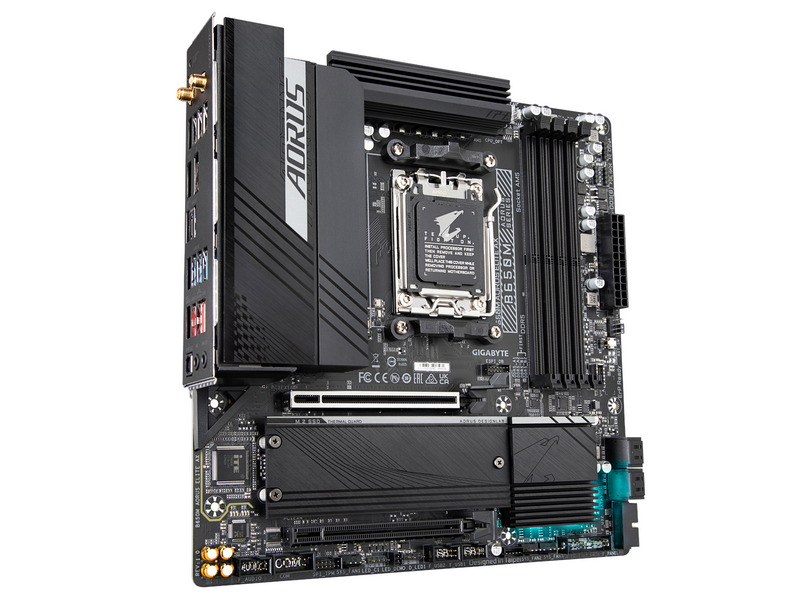

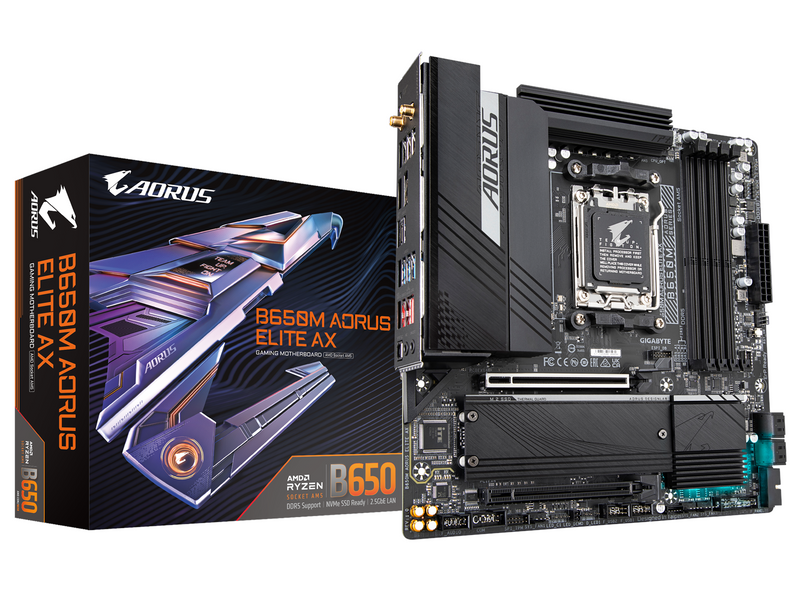

GIGABYTE B650M AORUS ELITE AX Mainboard - AMD B650 - AMD AM5 socket - DDR5 RAM - Micro-ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | GIGABYTE |
| Waren-Nr.: | 3112579 |
| Modell: | B650M AORUS ELITE AX |
| EAN: | 4719331849399 |
| Zum Hersteller:: | ... |
| Produktbeschreibung: | Gigabyte B650M AORUS ELITE AX - Motherboard - micro ATX - Socket AM5 - AMD B650 |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | AMD B650 |
| Prozessorsockel: | 1 x Socket AM5 |
| Kompatible Prozessoren: | Ryzen (unterstützt Ryzen 7000 Series) |
| Max. RAM-Größe: | 128 GB |
| Unterstütztes RAM: | 4 DIMM-Steckplätze - DDR5, non-ECC, ungepuffert |
| Massenspeicher-Schnittstellen: | 4 x SATA-600 (RAID), 2 x M.2 |
| USB-/FireWire-Anschlüsse: | 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 5 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste) |
| Audio: | High Definition Audio (7.1-Channel) |
| LAN: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 |
| Allgemein | |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | AMD B650 |
| Prozessorsockel: | Socket AM5 |
| Max. Anz. Prozessoren: | 1 |
| Kompatible Prozessoren: | Ryzen (unterstützt Ryzen 7000 Series) |
| Unterstützter RAM | |
| Max. Größe: | 128 GB |
| Technologie: | DDR5 |
| Bustakt: | 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5600 MHz (O.C.), 5200 MHz, 4800 MHz, 4400 MHz, 6600 MHz (O.C.), 6666 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung: | Non-ECC |
| Registriert oder gepuffert: | Ungepuffert |
| Besonderheiten: | Zwei-Kanal-Speicherarchitektur, AMD EXPO Technology, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Typ: | High Definition Audio (7.1-Channel) |
| Kompatibilität: | High-Definition-Audio |
| LAN | |
| Netzwerkcontroller: | AMD RZ616 (MT7922A22M) |
| Netzwerkschnittstellen: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze: | 1 x CPU 4 x DIMM 288-polig 1 x PCIe 4.0 x16 2 x M.2 socket (2280/25.110 M.2 Key M Slot) |
| Speicherschnittstellen: | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -anschlussstellen: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |

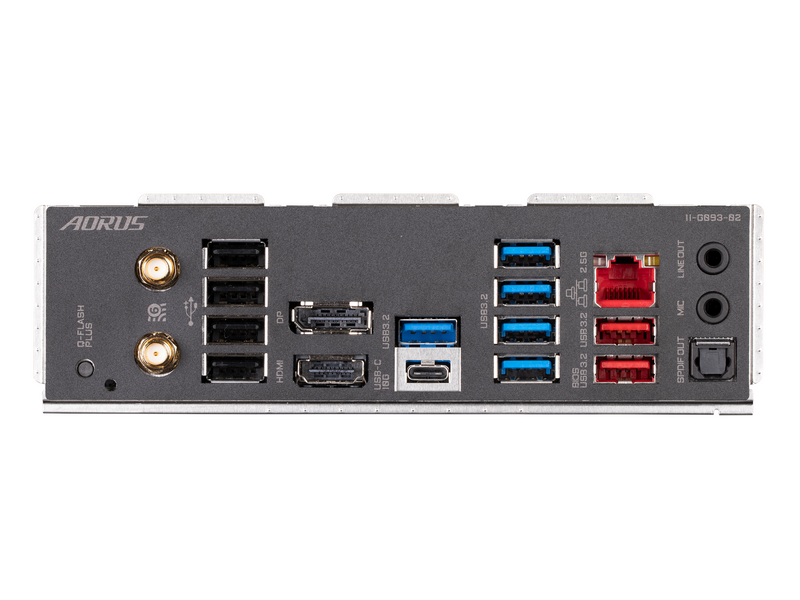

| Schnittstellen: | 1 x HDMI 1 x DisplayPort 1 x Audio Line-In - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker 1 x Mikrofon - Mini-Klinkenstecker 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 4 x USB 2.0 1 x PS/2-Tastatur/-maus 1 x LAN (2.5Gigabit Ethernet) 4 x USB 3.2 Gen 1 |
| Interne Schnittstellen: | 4 x USB 2.0 - Stiftleiste 2 x USB 3.2 Gen 1 - Stiftleiste 1 x USB-C Gen 2x2 - Stiftleiste 1 x Audio - Stiftleiste 1 x SPI - Stiftleiste 1 x Seriell - Stiftleiste |
| Stromanschlüsse: | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ: | AMI |
| BIOS-Funktionen: | UEFI BIOS, PnP 1.0a Support, DMI 2.7-Unterstützung, WfM 2.0-Unterstützung, Unterstützung von SMBIOS 2.7, ACPI 5.0-Unterstützung |
| Hardwareüberwachung: | Warnung bei Lüfterausfall, Lüftersteuerung |
| Hardwarefeatures: | Q-Flash Plus, Q-Flash, M.2 Thermal Guard, Solid Pin Power Connectors, 60A Smart Power Stage, 2x Copper PCB, 8 Layer PCB, RGB FUSION 2.0, Ultra Durable, DIY Friendly Design, GIGABYTE Smart Fan 6 |
