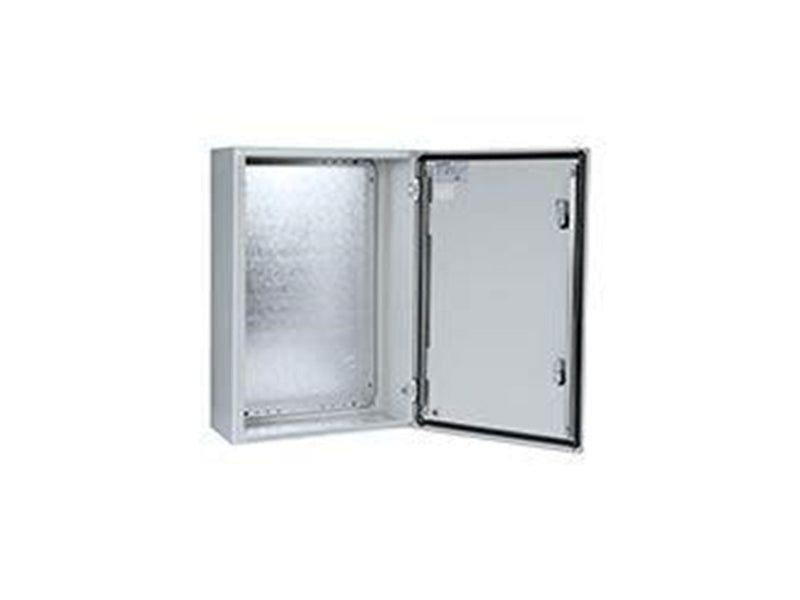

ELDON Wall mounted 500x300x210

Wall cabinet 500x300x210 Product description: Material: Cabinet: 1.2 mm painted steel for cabinets with a depth of 155 mm / 1.4 mm for cabinets with a depth of 210 or 260 mm / 1.5 mm for cabinets with a depth of 300 or 400 mm, or if the height or width is greater than1000mm. Flange:1.4mm painted steel.Door:1.2mm painted steel/1.5mm for cabinets with a height or width of500mmor more/2m mfor cabinetswithaheightorwidthof800mmandabove.Mounting plate:2m mgalvanizedsteel.Cabinet:Folded and fully welded.Four holes8 .5mmdiameterforwallmounting,pressedinto20 .4mmdiameter x2mmmachinedrecessesforaircirculationbehindthebackofthecabinet.Door :130°opening.Hiddenremovablehingeswithsecuredhinge pin.Hinges can be mounted for left- or right-hand opening.From size MAS0604015 and above, there are two removable mounting profiles in the door.Secure seal with one-piece foamed polyurethane gasket.Externally mountedwith130°opening.Hiddenremovable hingeswith secured pin.Hinges can be mounted for left- or right-hand opening.From height300mma nd above, stubs are provided to mount MMDP door profiles,and from height600and above,internaldoorprofilesare included as standard.One-piece polyurethane packing.Lock:Cust omized lockswithDINlockforeasydooropening.DIN3mmcylinderand90°movement.Cabinets1000mmmhighandabovehaveespagnolette three-point locking.Other inserts are supplied as accessories.Mounting plate:The mounting plate is marked vertically at10 mmin tervalsforsimplehorizontalplacementofequipment.There are holes in the top and bottom for cable attachment. Attached to M8 screws spot welded on the back of the cabinet.All sides from 800 mm and above are reinforced with folded edges.When using AMG accessories, the position of the mounting plate can be adjusted to any depth.Flange opening:Located atthe very backofthecabinettofacilitatecablingonthe mounting plate.Degree of protection:In accordance with IP66|TYPE4,12.
