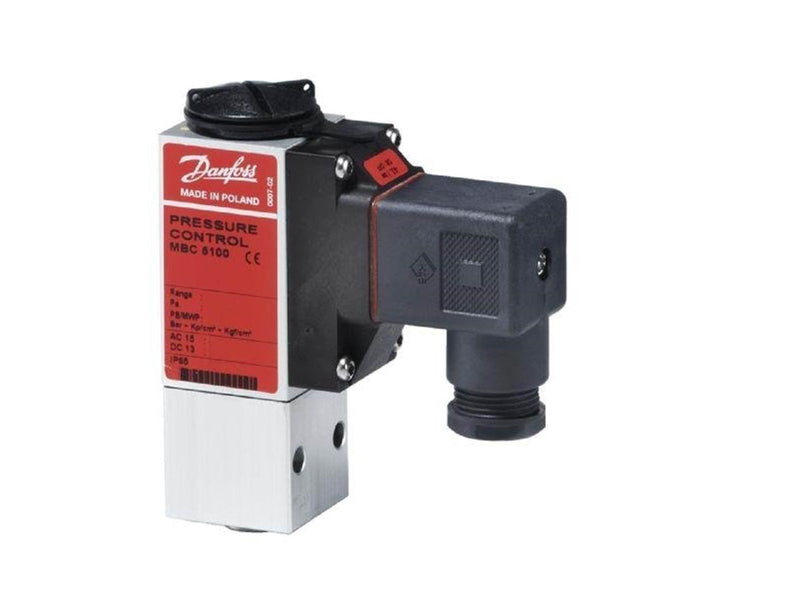

Danfoss Mbc 5100 block-type compact pressure switches

MBC 5100 Pressure Switch 5-40 bar Product Description: MBC 5100, Compact block pressure switches with marine approvals. MBC pressure switches are designed for demanding applications in the marine and general industry. MBC is a compact series developed for high pressures and pulsating media in tough environments such as maritime and engine installations. MBC has high vibration stability and all important marine approvals. Low differential and high repeatability accuracy. A series of test valves are available for the compact series of pressure switches.• Available with marine approvals• Pressure range: -0.2 to 100 bar• Low differential (fixed) micro switch• Resistant to shock and vibrations• Enclosure IP65• Diaphragm version for applications with pulsations/pressure surges • Compact design • Low installation costs • Quick and easy to operate • Easy to mount directly on test valve • Available as differential pressure switch Technical Specifications: Approvals: ABS, BV, CCC, CCS, CE, DNV, EAC,GL,KRS,Lloyd's Register,NKK,RINA,RMRS Ambient temperature (°C): -10 -85 °C Regulating range (bar) Pe: 5.00-40 .00 bar Weight (kg): 0 .308
