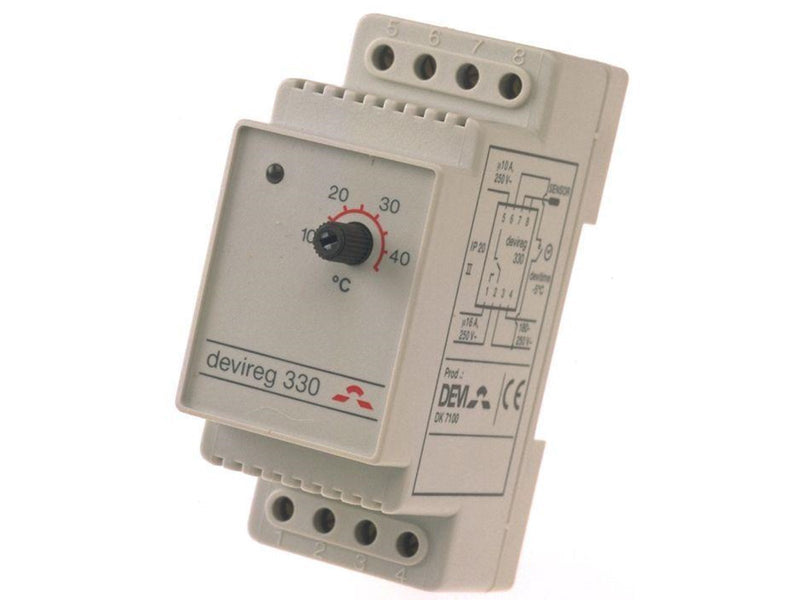

Danfoss Devireg 330 -10 / +10 c din rail thermostat

Thermostat DEVIreg 330 -10°C/+10°C - 1C Product description: DEVIregTM 330 is a series of simple, electronic thermostats for installation in electrical cabinets with DIN rail mounting. To measure and control the desired temperature, either a single wire sensor (included in the set) or an external outdoor sensor or room sensor must be used. The thermostat must be installed after a multipole switch. It has an LED indicator that shows standby periods (green light) and heating periods (red light). DEVIregTM 330 has a relay with two contact pairs – NO (normally open) and NC (normally closed) and is designed to be used for heating and cooling systems. In addition, the NO- and NC-contact pairs are not voltage supplied via a voltage coil inside the thermostats and can be used for control systems with any voltage up to 250 V.The series is designed with thermostats in three temperature ranges.DEVIregTM 330 (-10 - +10 °C) is primarily used to control lower temperature ranges such as frost protection. This thermostat has a button for adjusting the temperature setting with a scale from -10 to +10 °C. A special outdoor sensor with white wire, 2.5m long, is included in the set.Technical specifications: Width (mm): 92Height (mm): 92Sensor type: NTCMax operating temperature(°C):50
