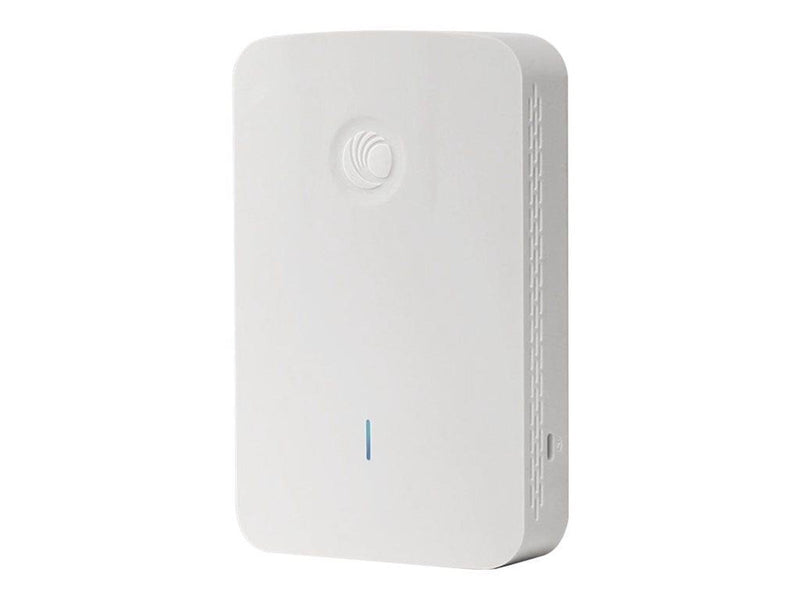

Cambium Networks cnPilot E430H
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | Cambium Networks |
| Waren-Nr.: | 3357632 |
| Modell: | PL-E430H00A-EU |
| Zum Hersteller:: | / |
| Produktbeschreibung: | Cambium Networks cnPilot E430H - Accesspoint - Bluetooth, Wi-Fi 5 - Cloud-verwaltet |
| Gerätetyp: | Accesspoint |
| Formfaktor: | Extern - innen |
| Lokalisierung: | Europa |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Frequenzband: | 2.4 GHz, 5 GHz |
| Leistung: | Maximale Datenrate (2,4 GHz): 400 Mbit/s Maximale Datenrate (5 GHz): 867 Mbit/s |
| Kapazität: | SSIDs gesamt: 16 Maximale Anzahl von Clients: 256 |
| Zubehör im Lieferumfang: | Montagehalterung |
| Power Over Ethernet (PoE)-Unterstützung: | PoE+ |
| Abmessungen (Breite x Tiefe x Höhe): | 9.4 cm x 3.4 cm x 14.7 cm |
| Gewicht: | 390 g |
| Allgemein | |
| Gerätetyp: | Accesspoint |
| Robustes Design: | Innen |
| Breite: | 9.4 cm |
| Tiefe: | 3.4 cm |
| Höhe: | 14.7 cm |
| Gewicht: | 390 g |
| Lokalisierung: | Europa |
| Netzwerk | |
| Formfaktor: | Extern |
| Anschlusstechnik: | Kabellos |
| Leitungskodierformat: | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac Wave 2 |
| Spread-Spectrum-Methode: | OFDM, DSSS |
| Netzwerk/Transportprotokoll: | L2TP, PPPoE, DHCP, DNS |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3 |
| Remoteverwaltungsprotokoll: | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
| Cloud-verwaltet: | Ja |
| Frequenzband: | 2.4 GHz, 5 GHz |
| Leistung: | Maximale Datenrate (2,4 GHz): 400 Mbit/s Maximale Datenrate (5 GHz): 867 Mbit/s |
| Kapazität: | SSIDs gesamt: 16 Maximale Anzahl von Clients: 256 |
| Leistungsmerkmale: | NAT Support, Lastenausgleich, VLAN-Unterstützung, Auto-Uplink (Auto MDI/MDI-X), IGMP Snooping, Syslog-Unterstützung, MAC-Adressenfilter, unterstützt Wireless Distribution System (WDS), geeignet für Wandmontage, unterstützt Wi-Fi Multimedia (WMM), Access Control List (ACL) Support, Quality of Service (QoS), DHCP-Server, Reset-Taste, LLDP-Support, DHCP-Relais, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), 802.1x-Authentifizierung, Type of Service (ToS), unterstützt DiffServ Code Point (DSCP), Cyclic Shift Diversity (CSD), Beamforming-Technologie, Paketaggregation A-MPDU, Paketaggregation A-MSDU, Bandsteuerung, Gästezugang, nahtloses Roaming, Airtime Fairness, Spektrumanalysator, 2x2:2 MU-MIMO-Technologie, Wireless Mesh-Support, Sicherheitsslot (kompatibel mit Kensington Slot) |
| Verschlüsselungsalgorithmus: | AES, PEAP, TKIP, WPA, WPA-PSK, WPA2-PSK, WPA2-Enterprise, EAP-SIM, EAP-AKA, EAP-FAST |
| Authentifizierungsmethode: | RADIUS, LDAP, MS-CHAP v.2 |
| Produktzertifizierungen: | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, Bluetooth 4.0, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11ac Wave 2 |
| Antenne | |
| Antenne: | Intern |
| Richtwirkung: | Ungerichtet |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 3 x 1000Base-T - RJ-45 1 x 1000Base-T (PoE-Output) - RJ-45 2 x Durchlauf - RJ-45 |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Montagehalterung |
| MTBF: | 2,828,686 Stunden |
| Kennzeichnung: | UL, IC, FCC, RoHS, WEEE |
| Stromversorgung | |
| Power Over Ethernet (PoE)-Unterstützung: | PoE+ |
| Leistungsaufnahme im Betrieb: | 25 Watt |
