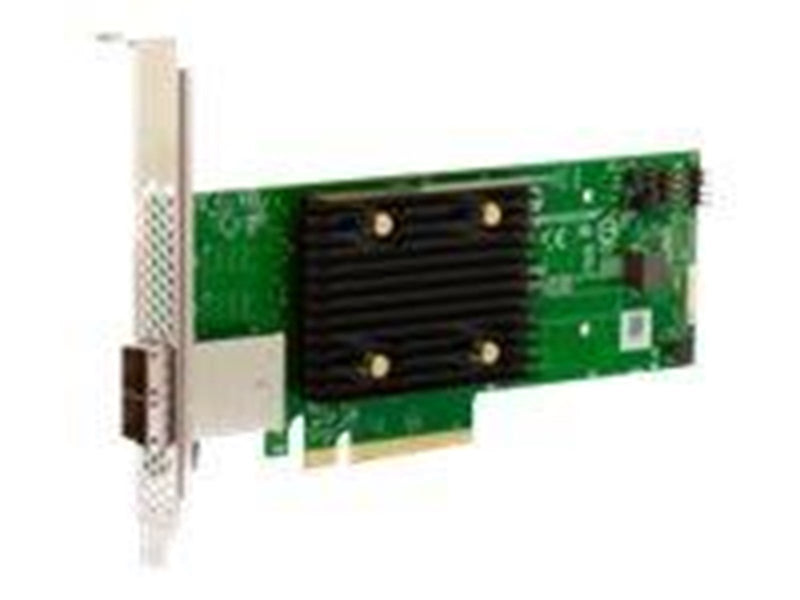

Broadcom HBA 9500-8e Tri-Mode
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | Broadcom |
| Waren-Nr.: | 3172588 |
| Modell: | 05-50075-01 |
| EAN: | 0830343007523 |
| Zum Hersteller:: | |
| Produktbeschreibung: | Broadcom HBA 9500-8e Tri-Mode - Speicher-Controller - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8 |
| Gerätetyp: | Speicher-Controller - Plug-in-Karte |
| Bustyp: | PCIe 4.0 x8 |
| Schnittstelle: | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatte, Solid State-Laufwerk |
| Anzahl Kanäle: | 8 |
| Max. Anzahl Speicherperipheriegeräte: | 1024 |
| Systemanforderungen: | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, CentOS, Ubuntu, VMware ESXi, Oracle Enterprise Linux, Linux Fedora, VMware vSphere (ESXi), Citrix XenServer |
| Abmessungen (Breite x Tiefe x Höhe): | 16.765 cm x 6.89 cm |
| Allgemein | |
| Gerätetyp: | Speicher-Controller - Plug-in-Karte |
| Host-Bus: | PCIe 4.0 x8 |
| Massenspeicher-Controller | |
| Schnittstelle: | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Unterstützte Geräte: | Festplatte, Solid State-Laufwerk |
| Anzahl Kanäle: | 8 |
| Max. Anzahl Speicherperipheriegeräte: | 1024 |
| Erweiterung/Konnektivität | |
| Schnittstellen: | 2 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - 36 pin 4x Mini SAS HD (SFF-8644) (auĂźerhalb) |
| Verschiedenes | |
| Zubehör im Lieferumfang: | Low profile Slotblech |
| Leistungsmerkmale: | Tri-Mode SerDes-Technologie |
| MTBF: | 5,000,000 Stunden |
| Kennzeichnung: | FCC CFR47 Part 15 B, FCC Klasse B bescheinigt, CNS 13438, ICES-003 Class B, VCCI V-3, AS/NZS CISPR 22, EN55022, EN55024, EN 60950, IEC 60950, UL 60950, WEEE, RoHS |
| Stromversorgung | |
| Leistungsaufnahme im Betrieb: | 6.12 Watt |
| Software / Systemanforderungen | |
| Erforderliches Betriebssystem: | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, CentOS, Ubuntu, VMware ESXi, Oracle Enterprise Linux, Linux Fedora, VMware vSphere (ESXi), Citrix XenServer |
| Abmessungen und Gewicht | |
| Tiefe: | 16.765 cm |
| Höhe: | 6.89 cm |
