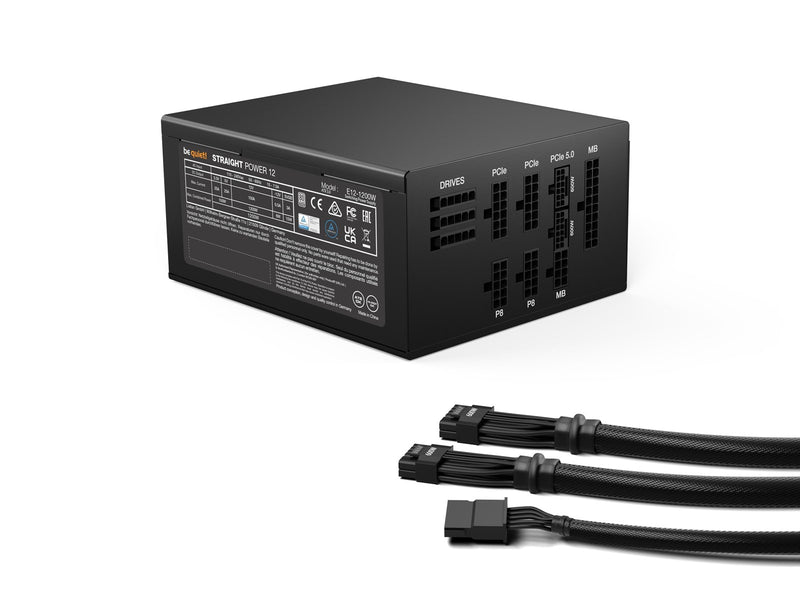

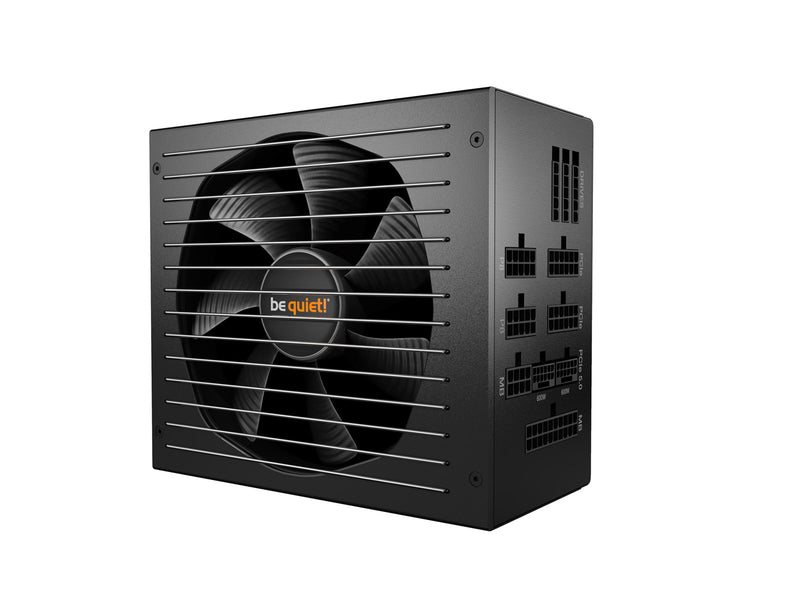

be quiet! Straight Power 12 Platinum 1200W Netzteile - 1200 Watt - 135 mm - ATX 3.1 - 80 Plus Platinium
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Netzteile ( intern ), ATX standard: ATX12V 3.0, 80 plus Platinum, 135mm kühler , aktive PFC, Kabel: 4 x 8 (6+2) pins zu Grafikkarte / 2 x 12VHPWR pins zu Grafikkarte (PCI Express 5.0 ready) / 6 x 5 pins SATA / 1 x 24 (20+4) pins ATX, voll modular und gesleevt Kabel, Kabel, farbe: schwarz, 1200 watt
80 PLUS® PLATINUM CERTIFIED
Highly efficient operation
Straight Power 12 1200W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.7%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Straight Power 12 1200W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1200W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1200W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
SILENT WINGS FAN
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.
FLAWLESS COOLING CONCEPT
For a longer lifespan
The funnel-shaped fan inlet of the Straight Power 12 1200W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.
STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1200W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105°C CAPACITORS
A testament to high quality
Only premium components are used in Straight Power 12 1200W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.
CONVENIENCE AND CONNECTIVITY
Maximum utility
Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
Generell
| Hersteller | be quiet! |
| Waren-Nr. | 3176268 |
| Modell | BN339 |
| EAN | 4260052189443 |
| Zum Hersteller | www.bequiet.com/en |
| Produktbeschreibung | be quiet! Straight Power 12 - Netzteil - 1200 watt |
| Gerätetyp | Netzteil - aktive Power Factor Correction (PFC) - intern |
| Spezifikationseinhaltung | ATX12V 3.0/ EPS12V 2.92 |
| 80-PLUS-Zertifizierung | 80 PLUS Platinum |
| Gewicht | 2.04 kg |
| Lokalisierung | Europa |
| Eingangsspannung | Wechselstrom 110-240 V |
| Ausgangsspannung | +3.3, +5, ±12 V |
| Leistungskapazität | 1200 watt |
| Ausgangsstrom | +3.3V - 25 A +5V - 25 A +12V - 100 A -12V - 0.5 A +5VSB - 3 A |
| Ausgabeanschlussstellen | 1 x Strom 24-poliges ATX mit abnehmbarer 4-poliger Sektion 1 x Strom 8-polig + 12V mit abnehmbarer 4-poliger Sektion 1 x Strom 8-poliges EPS12V 2 x 12VHPWR 4 x 8-poliger PCI Express Power mit abnehmbarer 2-poliger Sektion 9 x 15-Pin-SATA-Stromstecker 2 x Parallel ATA |
| Modulare Kabelverwaltung | Ja |
| Kühlsystem | 135-mm-Lüfter |
| Zubehör im Lieferumfang | Kabelbinder, Schrauben |
| Farbe | Schwarz |
| Abmessungen (Breite x Tiefe x Höhe) | 15 cm x 18 cm x 8.6 cm |
| Umweltschutzstandards | ENERGY STAR |
Technische Daten
| Allgemein | |
| Gerätetyp | Netzteil - aktive Power Factor Correction (PFC) - intern |
| Spezifikationseinhaltung | ATX12V 3.0/ EPS12V 2.92 |
| Netzteil-Formfaktor | ATX |
| Farbe | Schwarz |
| Lokalisierung | Europa |
| Stromversorgungsgerät | |
| Eingangsspannung | Wechselstrom 110-240 V |
| Nötige Frequenz | 50 - 60 Hz |
| Angaben zu Ausgangsleistungsanschlüssen | 1 x Strom 24-poliges ATX mit abnehmbarer 4-poliger Sektion 1 x Strom 8-polig + 12V mit abnehmbarer 4-poliger Sektion 1 x Strom 8-poliges EPS12V 2 x 12VHPWR 4 x 8-poliger PCI Express Power mit abnehmbarer 2-poliger Sektion 9 x 15-Pin-SATA-Stromstecker 2 x Parallel ATA |
| Ausgangsspannung | +3.3, +5, ±12 V |
| Leistungskapazität | 1200 watt |
| Ausgangsstrom | +3.3V - 25 A +5V - 25 A +12V - 100 A -12V - 0.5 A +5VSB - 3 A |
| Effizienz | 65% at 2% Load (230 VAC), 89% at 10% Load (230 VAC), 93.1% at 20% Load (230 VAC), 93.7% at 50% Load (230 VAC), 92.4% at 100% Load (230 VAC) |
| Leistungsfaktor (LF) | 0.99 |
| Modulare Kabelverwaltung | Ja |
| 80-PLUS-Zertifizierung | 80 PLUS Platinum |
| Verschiedenes | |
| Zubehör im Lieferumfang | Kabelbinder, Schrauben |
| MTBF | 100,000 Stunden |
| Kühlsystem | 135-mm-Lüfter |
| Besonderheiten | Lüfter mit dynamischem Fluid-Lager, High Quality Capacitor |
| Kennzeichnung | Triman, RoHS, WEEE, BSMI, CB, cTUVus, FCC, RCM, TUV, UKCA |
| Informationen zur Nachhaltigkeit | |
| ENERGY STAR | Ja |
| Umgebungsbedingungen | |
| Max. Betriebstemperatur | 40 °C |
| Abmessungen und Gewicht | |
| Breite | 15 cm |
| Tiefe | 18 cm |
| Höhe | 8.6 cm |
| Gewicht | 2.04 kg |
| Abmessungen & Gewicht (Transport) | |
| Transportbreite | 24.8 cm |
| Transporttiefe | 32.8 cm |
| Transporthöhe | 10.2 cm |
| Transportgewicht | 3.89 kg |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
