Atomos Neon 24

Exceptional HDR Performance

NEON 24 features:

4K DCI resolution (4096 × 2160)

True 10-bit panel

Full array local dimming backlight

0-nit blacks

1000 nits full-screen brightness

Accurate DCI-P3 coverage with wide gamma

It achieves a dynamic contrast ratio of 1,000,000:1, revealing detail in both shadows and highlights so your production truly stands out.

Advanced Color Management Pipeline

The AtomHDR engine ensures precise handling of input signals and display gamma/gamut.

Selectable display modes allow operation in SDR or HDR to match camera capture settings or delivery standards, including:

Rec.709

Rec.2100 HLG

ST.2084 PQ

NEON 24 delivers native accurate color with DCI-P3 coverage. Wider gamuts such as BT.2020 are accurately processed by the AtomHDR engine for consistent representation.

Built-in transformations allow:

LOG to HDR conversion

3D LUT application for SDR workflows

Monitoring with creative looks or exposure compensation

Downstream output conversion enables standard conversion for SDR, LUT, or HDR delivery as needed.

Flexible & Upgradeable I/O

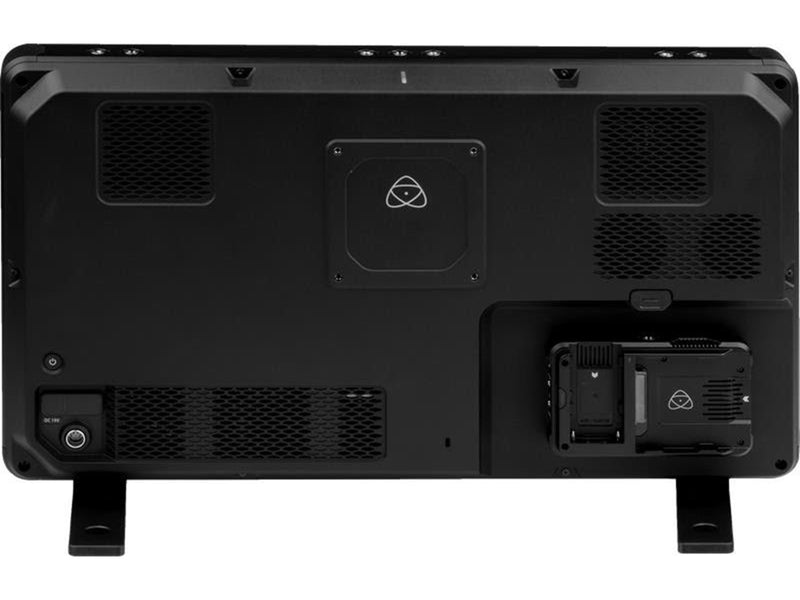

The NEON platform is modular, allowing I/O to be serviced, replaced, or upgraded without removing the panel from operation.

Master Control Unit (MCU)

The MCU is the brain of NEON and includes:

HDMI 2.0 input and output

Support for 4096 × 2160 DCI up to 60p

Firmware upgrade capability

Storage for up to 8 × 3D LUTs internally

Support for unlimited LUT storage via 2.5" HDD/SSD

LUT management via AtomOS app on iOS

The MCU also includes an Xpansion port. NEON ships with the AtomX SDI module, providing:

2 × 12G-SDI

Support for single and dual link 1.5G / 3G / 6G

A/B input switching

Up to 4K60p input

As standards evolve, both the MCU and Xpansion modules can be upgraded without replacing the entire monitor.

Analysis & Assist Tools

NEON’s professional toolset enables analysis during monitoring, recording, or playback:

Waveform monitors (Luma Parade, RGB Parade)

Vectorscope with zoom

Pixel zoom with pan and scan

Focus peaking (color, mono, edges only)

Adjustable zebra and false color

Audio PPM meters for all embedded channels

Headphone monitoring of selected stereo pair

Additional 3.5mm audio input on MCU

Control & Remote Operation

Built-in Timecode Systems SYNC technology enables Bluetooth control via Atom Remote OS from iOS devices.
An iOS device is required to operate NEON remotely.

Recording & Playback Modes

Connect cameras or video sources via:

12G-SDI (up to 4K DCI 60p)

Dual 6G

1.5G / 3G SDI

HDMI up to 4K60p (non-HDCP)

HD up to 120fps

Supports up to 12 channels of embedded audio (SDI) and 8 channels via HDMI.

10-bit 4:2:2 recording in:

Apple ProRes

Avid DNx

Files use Scene/Shot/Take naming with rich metadata for NLE or MAM workflows.

Playback is available directly from SSD via the MCU drive slot. Clips from other Atomos devices or exported/transcoded ProRes/DNx files can also be played back.

Frame Guides & Anamorphic De-Squeeze

Includes:

Broadcast frame guides

EBU R5 graphic and action safe areas

Cinematic guides

Anamorphic de-squeeze modes (2x, 1.5x, 1.33x)

Compatible with a wide range of anamorphic lenses.

Key Specifications

24" 17:9 4K DCI display

100% DCI-P3 coverage

1,000,000:1 dynamic contrast ratio

1000 nits HDR with Dynamic Full Array Local Dimming

AtomHDR pipeline (LOG to PQ/HLG with 3D LUT for SDR workflows)

Up to 4K60p via HDMI 2.0 or 12G-SDI with 10-bit loop-outs

Anti-glare coating and ultra-wide viewing angle

HD and 4K processing (HD upscaling to 4K DCI crop or downconversion to HD)

AtomRemote OS Bluetooth control via iOS (iOS device required)

Factory calibrated; compatible with Atomos Calibrator supporting X-Rite i1Display Pro Plus

In the Box

Master Control Unit

Master Caddy II

12V 3A AC power supply

AtomX SDI Expansion Module

NEON 24″ panel

Feet

Quick start guide

Button Bar Remote Control Unit
