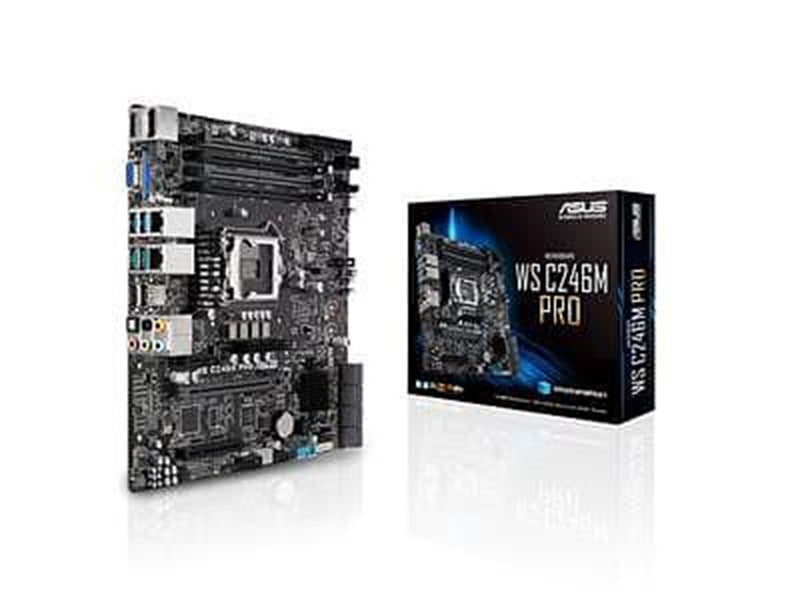

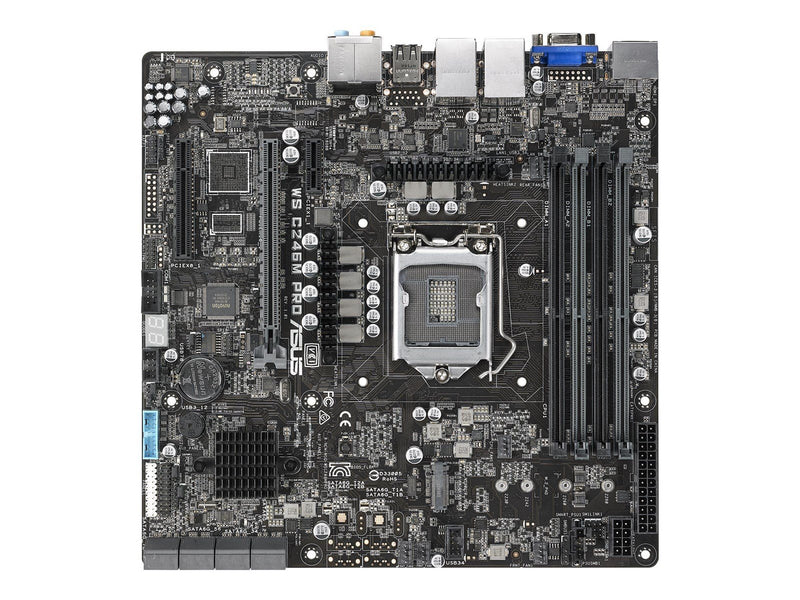

ASUS WS C246M PRO Mainboard - Intel C246 - Intel LGA1151 socket - DDR4 RAM - Micro-ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | ASUS |
| Waren-Nr.: | 2679827 |
| Modell: | 90SW00E0-M0EAY0 |
| EAN: | 47129 |
| Zum Hersteller:: | / |
| Kontaktieren Sie den Hersteller: | qr.asus.com/ProductSafety |
| Produktbeschreibung: | ASUS WS C246M PRO - Motherboard - micro ATX - LGA1151 Socket - C246 |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | Intel C246 |
| Prozessorsockel: | 1 x LGA1151 Socket |
| Kompatible Prozessoren: | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-2100 series |
| Max. RAM-Größe: | 64 GB |
| Unterstütztes RAM: | 4 DIMM-Steckplätze - DDR4, non-ECC, ECC, ungepuffert |
| Massenspeicher-Schnittstellen: | 8 x SATA-600 (RAID), 1 x M.2 |
| USB-/FireWire-Anschlüsse: | 2 x USB 3.1 Gen 2 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste) |
| Audio: | HD Audio (8-Kanal) |
| LAN: | 2 x Gigabit Ethernet |
| Allgemein | |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | Intel C246 |
| Prozessorsockel: | LGA1151 Socket |
| Max. Anz. Prozessoren: | 1 |
| Kompatible Prozessoren: | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-2100 series |
| Unterstützter RAM | |
| Max. Größe: | 64 GB |
| Technologie: | DDR4 |
| Bustakt: | 2400 MHz, 2133 MHz, 2666 MHz |
| Unterstützte RAM-Integritätsprüfung: | Non-ECC, ECC |
| Registriert oder gepuffert: | Ungepuffert |
| Besonderheiten: | Zwei-Kanal-Speicherarchitektur |
| Audio | |
| Typ: | HD Audio (8-Kanal) |
| Audio Codec: | Realtek ALC887 |
| Kompatibilität: | High-Definition-Audio |
| LAN | |
| Netzwerkcontroller: | Intel I210-AT / I219LM |
| Netzwerkschnittstellen: | 2 x Gigabit Ethernet |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze: | 1 x CPU 4 x DIMM 288-polig 1 x PCIe 3.0 x16 1 x PCIe 3.0 x8 (x4-Modus) 1 x PCIe 3.0 x1 |
| Speicherschnittstellen: | SATA-600 -anschlussstellen: 8 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -anschlussstellen: 1 x M.2 |
| Schnittstellen: | 2 x LAN (Gigabit Ethernet) 2 x USB 3.1 Gen 2 2 x USB 2.0 2 x USB 3.1 Gen 1 1 x HDMI 1 x DisplayPort 1 x VGA 1 x Audio Line-Out (Mitte/Subwoofer) - Mini-Klinkenstecker 1 x Audio Line-Out (hinten) - Mini-Klinkenstecker 1 x Audio Line-In - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker 1 x Mikrofon - Mini-Klinkenstecker 1 x TOSLINK |
| Interne Schnittstellen: | 4 x USB 2.0 - Stiftleiste 2 x USB 3.1 Gen 1 - Stiftleiste 1 x Seriell - Stiftleiste 1 x SPDIF-Ausgang - Stiftleiste 1 x Audio - Stiftleiste |
| Stromanschlüsse: | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ: | AMI |
| BIOS-Funktionen: | WfM 2.0-Unterstützung, ASUS EZ Flash, USB BIOS Flashback, ACPI 5.0a-Unterstützung, DMI 3,0-Unterstützung, Unterstützung von SMBIOS 3,0 |
| Hardwareüberwachung: | CPU-Kerntemperatur, Drehzahlmesser für CPU-Lüfter, Drehzahlmesser Gehäuselüfter |
| Sleep / Wake up: | Wake-On-LAN (WOL), Wake on Ring (WOR), Wake On PME |
| Hardwarefeatures: | CrashFree BIOS 3, Intel Turbo Boost Technology, Dual LAN Teaming, Preboot eXecution Environment (PXE), ASUS SafeSlot |
