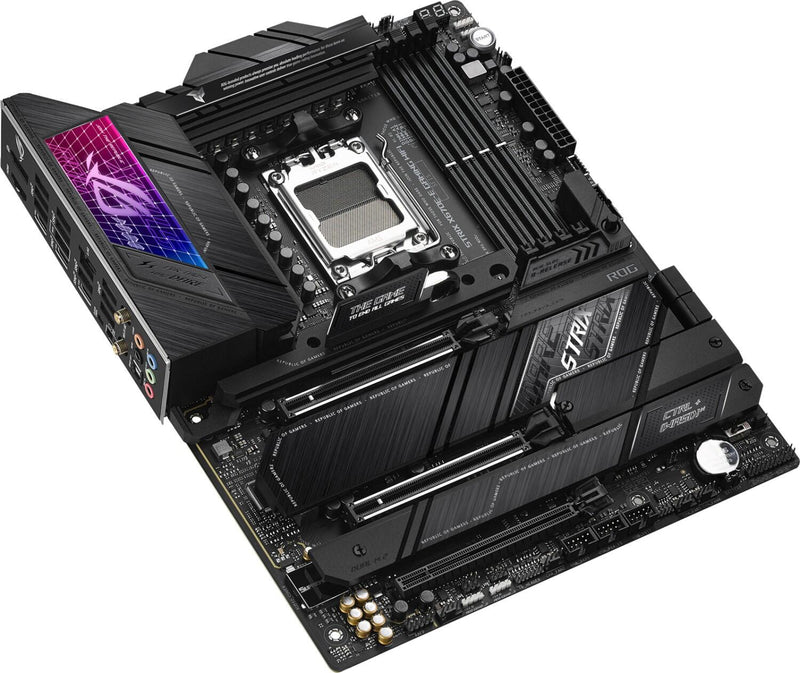

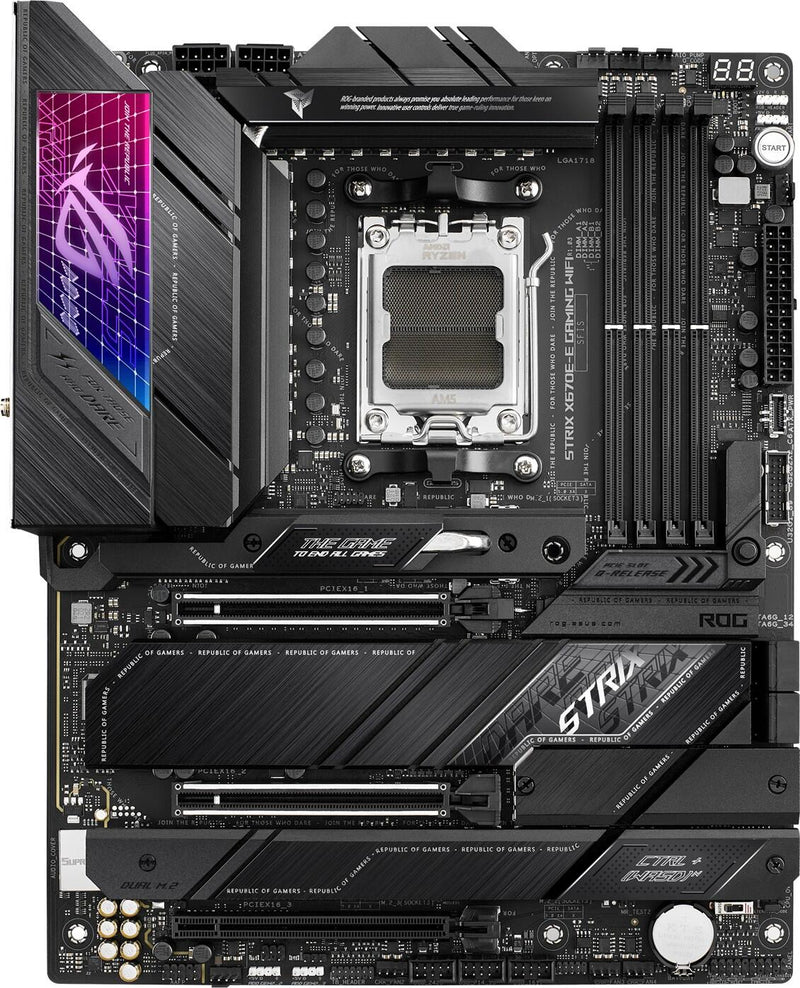

ASUS ROG Strix X670E-E Gaming WiFi
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- AMD Sockel AM5 für Desktop-Prozessoren der AMD Ryzen™ 7000-Serie
- 4 x DIMM, max. 128 GB, DDR5 6400+(OC), ungepufferter Speicher
- Unterstützt AMD EXTended Profiles for Overclocking (EXPO™)
- Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
- Drei Jahre Herstellergarantie
| Allgemein | |
|---|---|
| Hersteller | ASUS |
| Herst.Art.Nr. | 90MB1BR0-M0EAY0 |
| EAN | 4711081891703 |
| Hauptmerkmale | |
|---|---|
| Produktbeschreibung | ASUS ROG Strix X670E-E Gaming WiFi - Motherboard - ATX - Socket AM5 - AMD X670E |
| Produkttyp | Motherboard - ATX |
| Chipsatz | AMD X670E |
| Prozessorsockel | 1 x Socket AM5 |
| Kompatible Prozessoren | Ryzen (unterstützt Ryzen 7000 Series) |
| Max. RAM-Größe | 192 GB |
| Unterstütztes RAM | 4 DIMM-Steckplätze - DDR5, non-ECC, on-die ECC, ungepuffert |
| Massenspeicher-Schnittstellen | 4 x SATA-600 (RAID), 4 x M.2 |
| USB-/FireWire-Anschlüsse | 1 x USB-C 3.2 Gen 2x2 + 2 x USB-C 3.2 Gen 2 + 10 x USB 3.2 Gen 2 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 über eine interne Stiftleiste) |
| Audio | HD Audio (8-Kanal) |
| LAN | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Allgemein | |
|---|---|
| Produkttyp | Motherboard - ATX |
| Chipsatz | AMD X670E |
| Prozessorsockel | Socket AM5 |
| Max. Anz. Prozessoren | 1 |
| Kompatible Prozessoren | Ryzen (unterstützt Ryzen 7000 Series) |
| Unterstützter RAM | |
|---|---|
| Max. Größe | 192 GB |
| Technologie | DDR5 |
| Bustakt | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung | Non-ECC, on-die ECC |
| Registriert oder gepuffert | Ungepuffert |
| Besonderheiten | Zwei-Kanal-Speicherarchitektur, AMD EXPO Technology |
| Audio | |
|---|---|
| Typ | HD Audio (8-Kanal) |
| Audio Codec | Realtek ALC4080 |
| Kompatibilität | High-Definition-Audio |
| LAN | |
|---|---|
| Netzwerkschnittstellen | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Erweiterung/Konnektivität | |
|---|---|
| Erweiterungssteckplätze | 1 x CPU 4 x DIMM 288-polig 2 x PCIe 5.0 x16 (x16/x0, x8/x4 Modi) 1 x PCIe 4.0 x16 (x4-Modus) 3 x M.2 socket (2242/2260/2280 M.2 Slot mit Key M) 1 x M.2 socket (2242/2260/2280/22110 M.2 Slot mit Key M) |
| Speicherschnittstellen | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -anschlussstellen: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 |

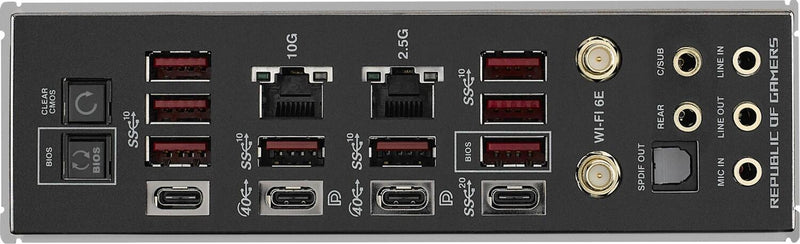

| Schnittstellen | 2 x Antenne 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 10 x USB 3.2 Gen 2 2 x USB-C 3.2 Gen 2 1 x Audio Line-Out (hinten) - Mini-Klinkenstecker 1 x Mikrofon - Mini-Klinkenstecker 1 x Audio Line-In - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker 1 x Audio Line-Out (Mitte/Subwoofer) - Mini-Klinkenstecker 1 x SPDIF-Ausgang 1 x LAN (2.5Gigabit Ethernet) |
| Interne Schnittstellen | 1 x USB-C 3.2 Gen 2x2 - Stiftleiste 2 x USB 3.2 Gen 1 - Stiftleiste 6 x USB 2.0 - Stiftleiste 1 x Audio - Stiftleiste 1 x Thunderbolt - Stiftleiste |
| Stromanschlüsse | Hauptstromanschluss, 24-polig, 2 8-polige ATX12V-Anschlüsse |
| Besonderheiten | |
|---|---|
| BIOS-Typ | AMI |
| BIOS-Funktionen | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake up | Wake-On-LAN (WOL), Wake On PME |
| Hardwarefeatures | ASUS OptiMem II, LANGuard, Jack Retasking, Audio Jack-Erkennungstechnologie, Savitech SV3H712 Vestärker, Transparente CMOS-Taste, BIOS FlashBack-Taste, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-Code, Q-DIMM, Q-LED, Q-Slot, M.2 Kühlkörper, VRM Kühlkörperdesign, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool II, vormontiertes E/A-Schild, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, 18+2 Phase Power Design, 110A Power Stage, DIY Friendly Design, Start-Taste, Water Pump Header, 8 Layer PCB, ASUS Enhanced Memory Profile (AEMP) |
| Verschiedenes | |
|---|---|
| Zubehör im Lieferumfang | Thermal-Pad für M.2 SSD, ASUS Wi-Fi bewegliche Antenne, Kabelbinder, M.2 Kühlkörper, M.2 Q-Latch, M.2 Backplate Q-Latch, Grafikkartenhalter, 2 x M.2 Gummi-Abstandshalter, M.2 Backplate Gummipaket, ROG Schlüsselanhänger, STRIX-Sticker, ROG-Danksagungskarte |
| Enthaltene Kabel | 2 x Serial ATA-Kabel |
| Software inbegriffen | AIDA64 Extreme (60-Tage-Testversion), Armoury Crate, ASUS AI Suite III, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS Turbo App, PC Cleaner, ROG CPU-Z, ROG GameFirst VI, Sonic Radar III, Sonic Studio III, WinRAR |
| Kennzeichnung | DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, UKCA, EU RoHS, WEEE |
| Breite | 30.5 cm |
| Tiefe | 24.4 cm |
