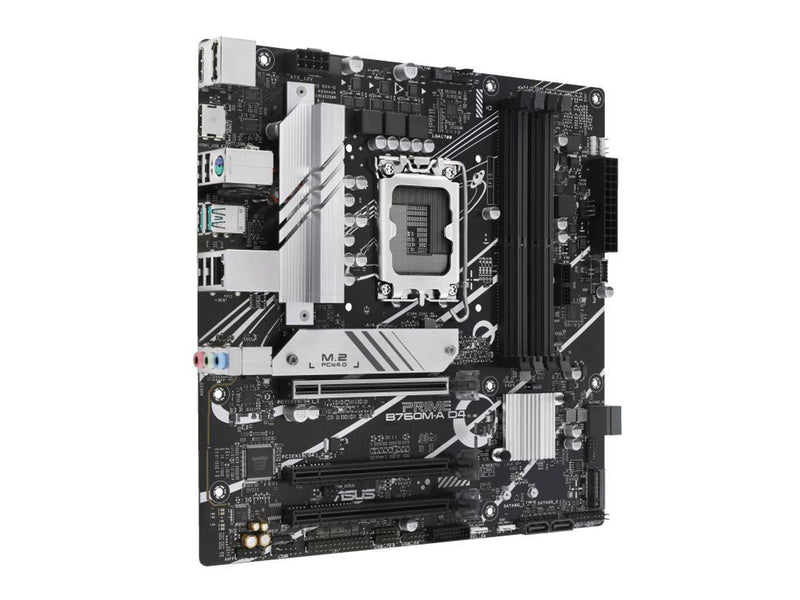

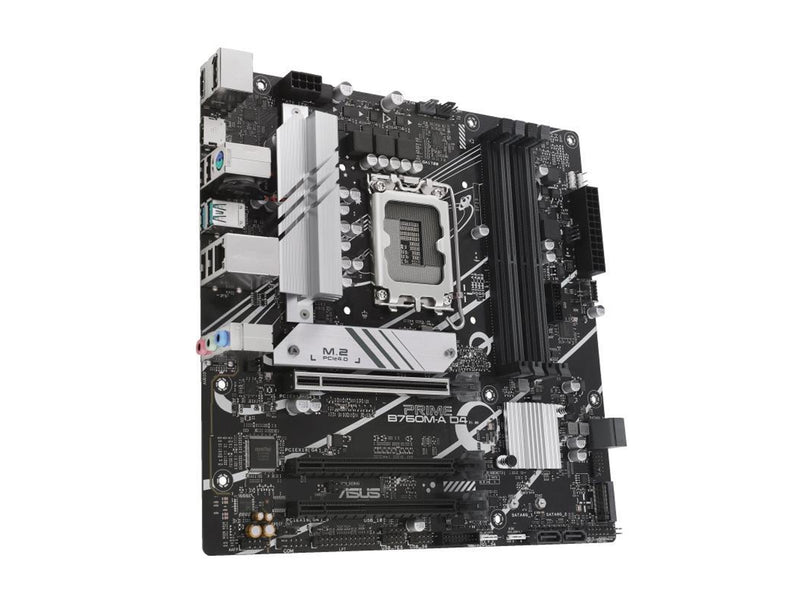

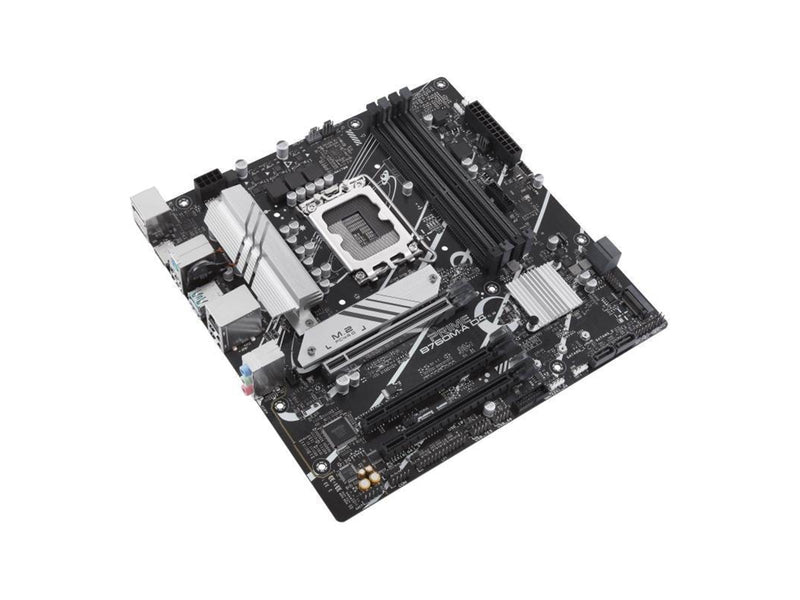

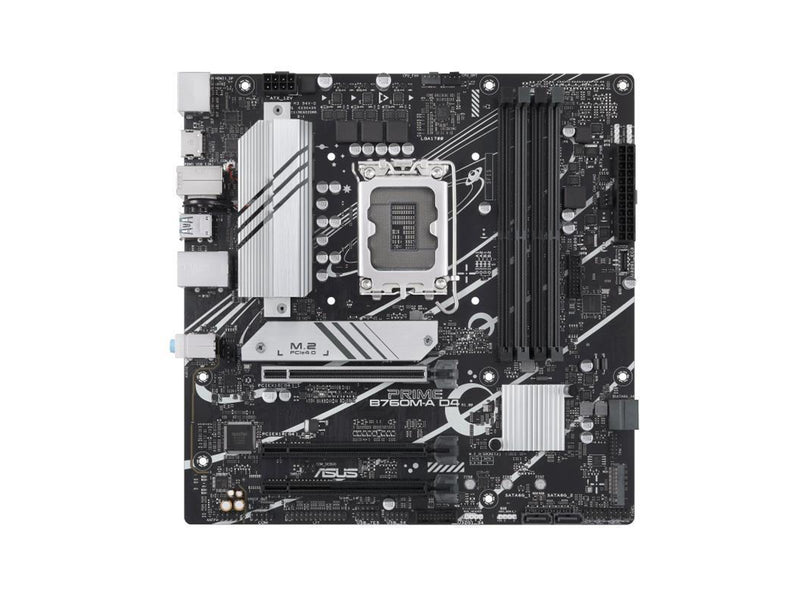

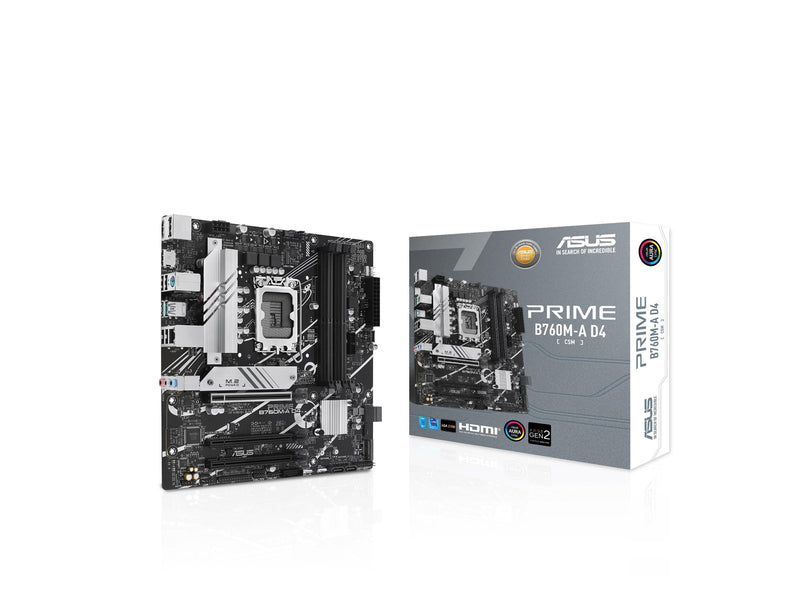

ASUS PRIME B760M-A D4-CSM (V2) Mainboard - Intel B760 - Intel LGA1700 - DDR4 RAM - Micro-ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Mainboard, größe: Micro-ATX, Intel LGA1700 socket, Intel B760 chipset, 1 x PCI-Express 4.0 x16, Dual DDR4-3200 4 x DIMM slots (Intel XMP support), speicheranschlüsse: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A, monitorverbindung: 1 x Displayport 1.4 / 2 x HDMI 2.1, Realtek 8125BG 2.5 Gigabit netzwerk (LAN), Intel Xe Graphics unterstützt (CPU mit VGA erforderlich), Realtek HD Audio (8-Kanäle) soundkarte, ASUS AURA Sync softwareBereit für Intel 14. Generation
This motherboard is equipped with a comprehensive cooling setup, including ASUS Fan Xpert 2+ and a VRM heatsink design, ensuring that your system remains cool and stable under load. The dual M.2 sockets and 4 x SATA-600 (RAID) storage interfaces allow for fast data transfer and flexible storage options, including RAID configurations for enhanced data integrity and speed. Networking is handled by a 2.5 Gigabit Ethernet port, offering a significant upgrade over standard Gigabit connections for faster, more reliable network performance.
For those looking to personalize their setup, ASUS Aura Sync provides a vast ecosystem of compatible devices for synchronized RGB lighting effects across your entire gaming environment. The motherboard's durability is bolstered by ASUS 5X Protection III, including overvoltage protection and a stainless steel back I/O, ensuring long-term reliability and stability. Whether you're building a high-performance gaming rig or a powerful workstation, the ASUS PRIME B760M-A D4-CSM offers a solid foundation with a balance of features and performance.
Generell
| Hersteller | ASUS |
| Waren-Nr. | 3278973 |
| Modell | 90MB1D00-M1EAYC |
| EAN | 4711081984061 |
| Zum Hersteller | www.asus.com/Motherboards-Components/Mot... |
| Kontaktieren Sie den Hersteller | qr.asus.com/ProductSafety |
| Produktbeschreibung | ASUS PRIME B760M-A D4-CSM - Motherboard - micro ATX - LGA1700 Sockel - B760 |
| Produkttyp | Motherboard - micro ATX |
| Chipsatz | Intel B760 |
| Prozessorsockel | 1 x LGA1700 Sockel |
| Kompatible Prozessoren | (unterstützt die 12. und 13. Generation Intel Core / Pentium Gold / Celeron) |
| Max. RAM-Größe | 128 GB |
| Unterstütztes RAM | 4 DIMM-Steckplätze - DDR4, non-ECC, ungepuffert |
| Massenspeicher-Schnittstellen | 4 x SATA-600 (RAID), 2 x M.2 |
| USB-/FireWire-Anschlüsse | 2 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 5 x USB 2.0 über eine interne Stiftleiste) |
| Audio | HD Audio (8-Kanal) |
| LAN | 2.5 Gigabit Ethernet |
Technische Daten
| Allgemein | |
| Produkttyp | Motherboard - micro ATX |
| Chipsatz | Intel B760 |
| Prozessorsockel | LGA1700 Sockel |
| Max. Anz. Prozessoren | 1 |
| Kompatible Prozessoren | (unterstützt die 12. und 13. Generation Intel Core / Pentium Gold / Celeron) |
| Unterstützter RAM | |
| Max. Größe | 128 GB |
| Technologie | DDR4 |
| Bustakt | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung | Non-ECC |
| Registriert oder gepuffert | Ungepuffert |
| Besonderheiten | Zwei-Kanal-Speicherarchitektur, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Typ | HD Audio (8-Kanal) |
| Kompatibilität | High-Definition-Audio |
| LAN | |
| Netzwerkschnittstellen | 2.5 Gigabit Ethernet |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze | 1 x CPU 4 x DIMM 288-polig 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4-Modus) 1 x PCIe 4.0 x16 (1x-Modus) 2 x M.2 socket (2242/2260/2280 M.2 Key M Steckplatz) |
| Speicherschnittstellen | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -anschlussstellen: 2 x M.2 |

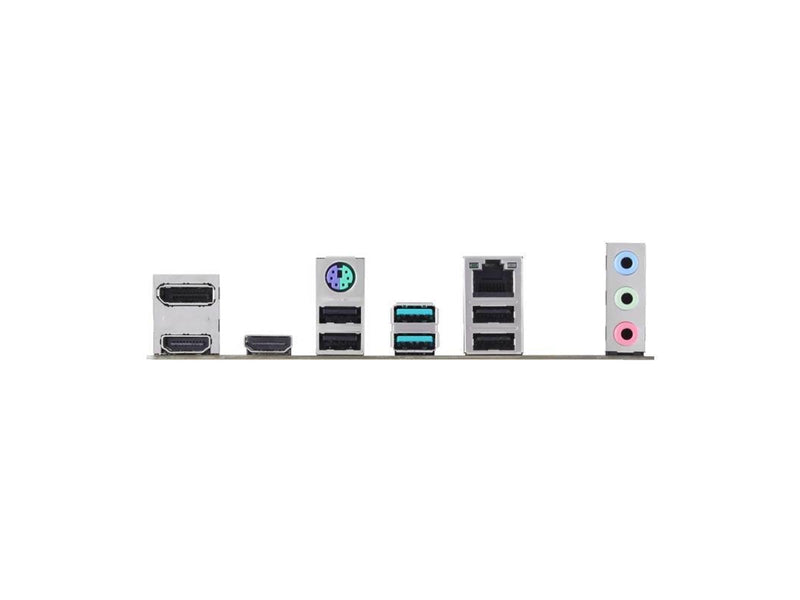

| Schnittstellen | 2 x HDMI 1 x DisplayPort 2 x USB 3.2 Gen 2 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x PS/2-Tastatur/-maus 1 x Mikrofon - Mini-Klinkenstecker 1 x Audio Line-In - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker |
| Interne Schnittstellen | 5 x USB 2.0 - Stiftleiste 1 x USB-C 3.2 Gen 1 - Stiftleiste 4 x USB 3.2 Gen 1 - Stiftleiste 1 x Seriell - Stiftleiste 1 x SPI - Stiftleiste 1 x SPDIF-Ausgang - Stiftleiste 1 x Audio - Stiftleiste |
| Stromanschlüsse | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ | AMI |
| BIOS-Funktionen | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ-Modus |
| Sleep / Wake up | Wake-On-LAN (WOL), Wake On PME |
| Hardwarefeatures | Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technologie 2.0, ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS OptiMem II, ASUS Fan Xpert 2+, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS SafeSlot Core+, ASUS Überspannungsschutz, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, ASUS Stainless Steel Back I/O, ASUS 5X Protection III, ASUS ProCool, VRM Kühlkörperdesign, LANGuard |
| Verschiedenes | |

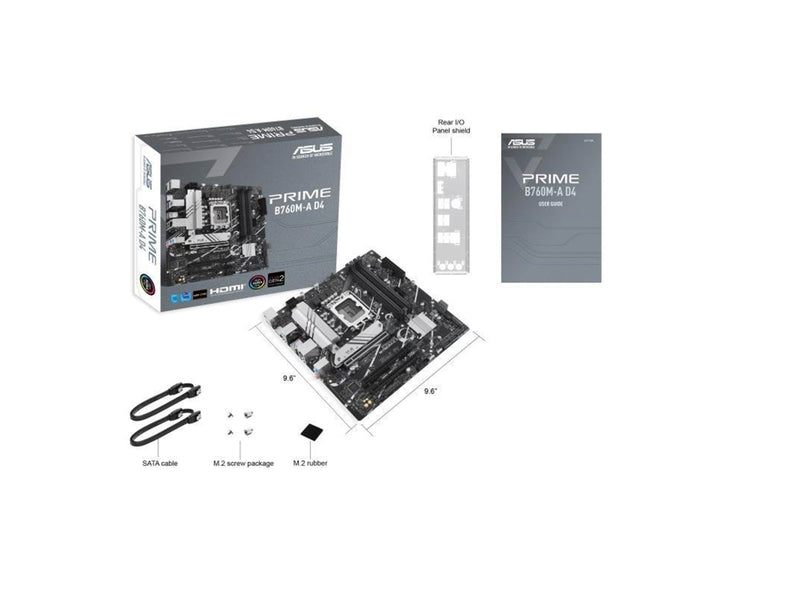

| Zubehör im Lieferumfang | I/O-Abschirmung, 1 x M.2 Gummipaket, M.2 SSD Schraubenpaket, ACC Express Activation Key Card |
| Enthaltene Kabel | 2 x Serial ATA-Kabel |
| Software inbegriffen | Norton 360 Deluxe (60-Tage-Testversion), WinRAR, PC Cleaner, ASUS AI Suite III, Armoury Crate, ASUS AURA Creator, ASUS CPU-Z |
| Breite | 24.4 cm |
| Tiefe | 24.4 cm |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
