ASUS GeForce RTX 5060 DUAL OC - 8GB GDDR7 RAM - Grafikkarte
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

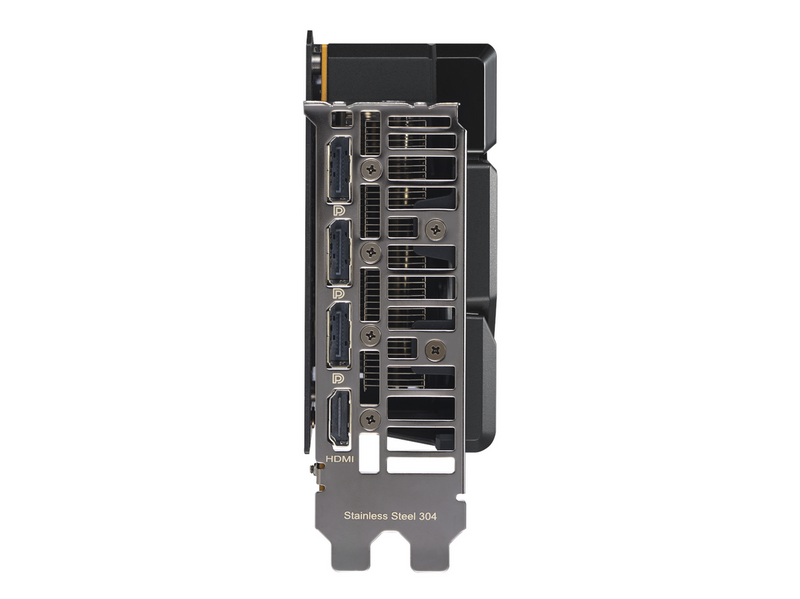

Grafikkarte, NVIDIA GeForce RTX 5060 Overclocked (Core clock 2280 MHz / Boost clock 2565 MHz), 3840 CUDA Kerne, unterstützt NVIDIA DLSS 4, 8GB GDDR7 (Memory clock 28 GHz) - 128-bit, PCI-Express 5.0 x16 (x8 mode), 3 x DisplayPort 2.1a / 1 x HDMI 2.1b Verbindungen, Stützen NVIDIA G-Sync, 1 x 8-Pins Netzanschluss, empfohlenes Netzteil: 550 Watt, kurze Länge: 228mm, PCI-Port-Breite: 2.5 slots, ASUS DUAL low noise kühler - mit Lüftermodus mit Null U/min (bei niedriger Temperatur), modell-Nr: DUAL-RTX5060-O8G

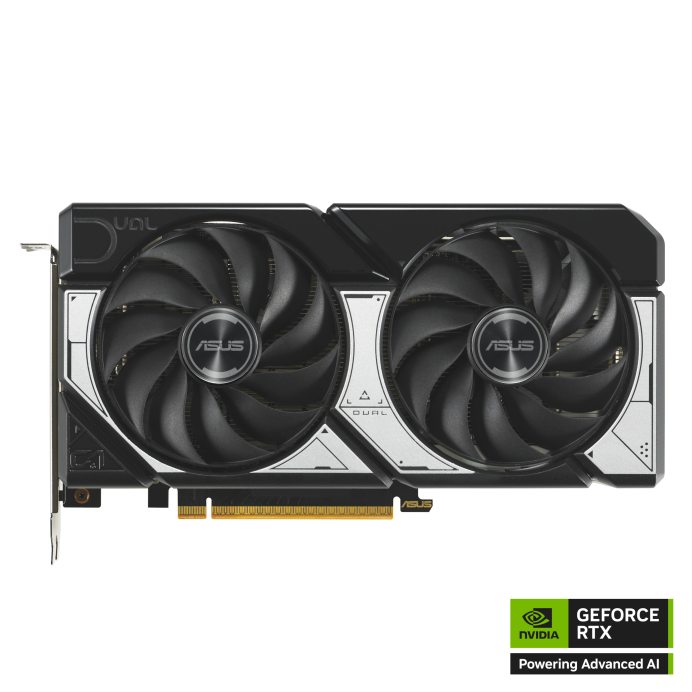

DUAL GEFORCE RTX™ 5060
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling

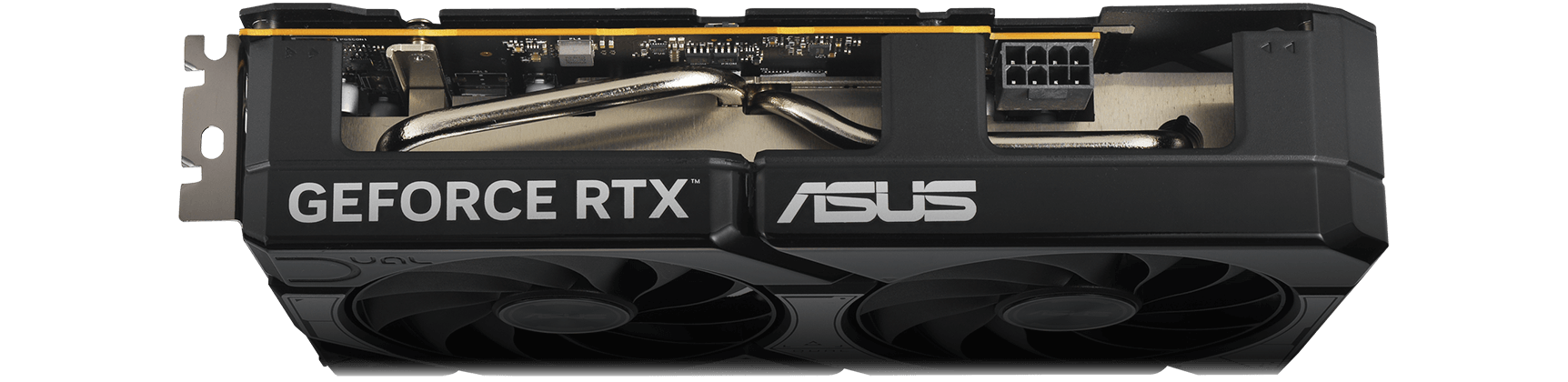

2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.
Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

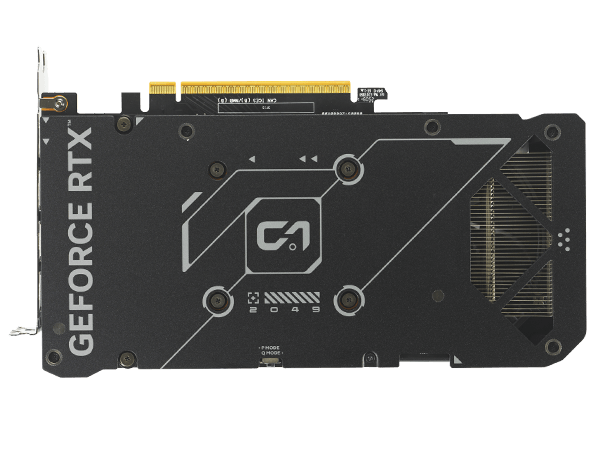

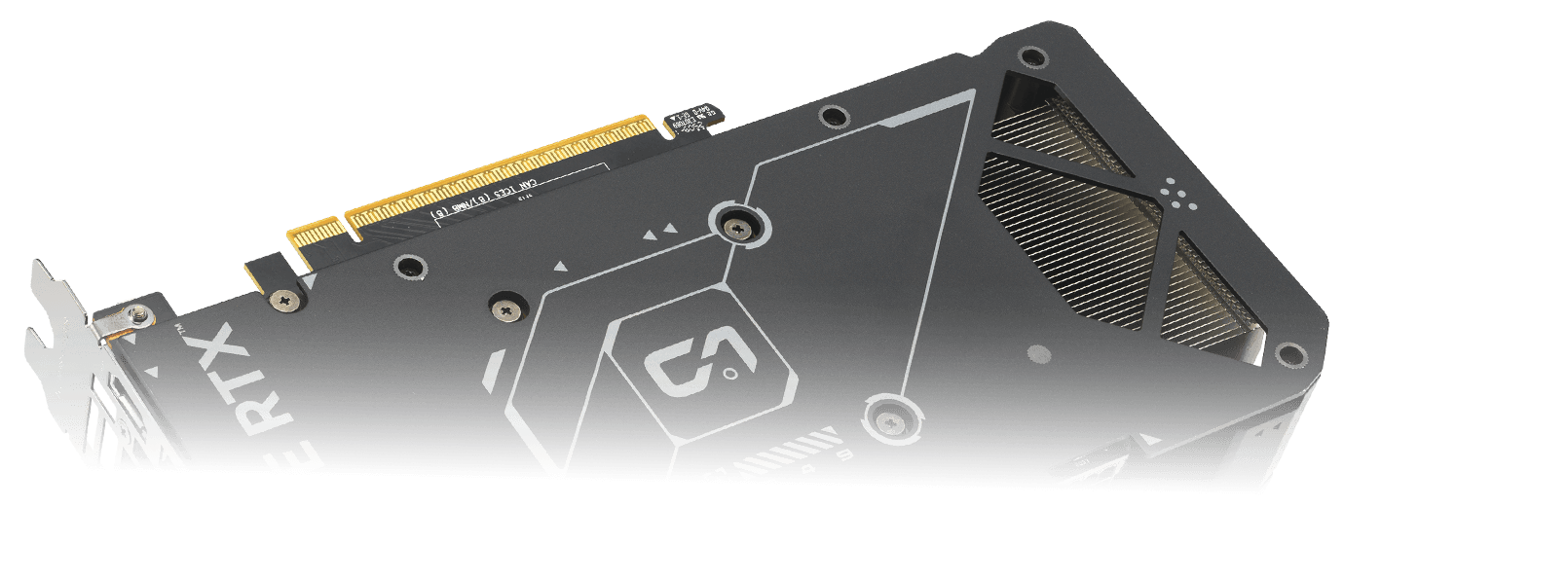

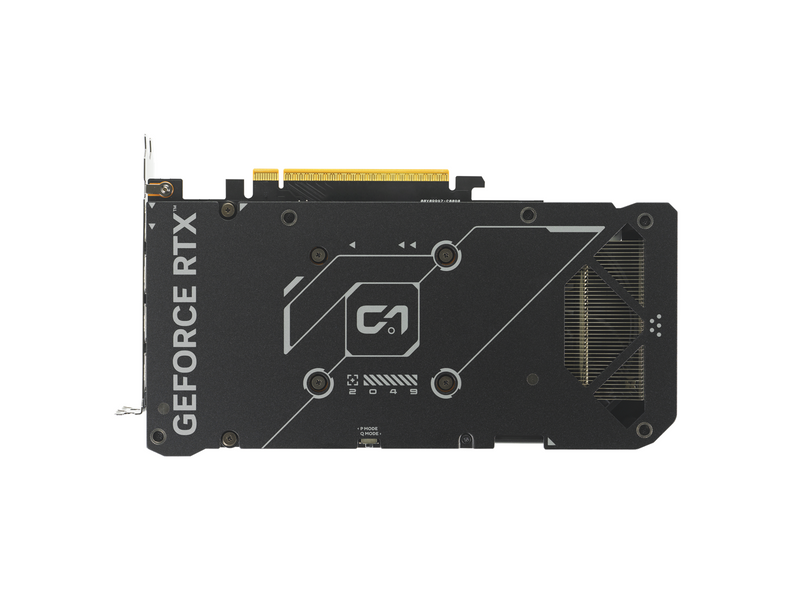

Vented Backplate
A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
Generell
| Hersteller | ASUS |
| Waren-Nr. | 3365407 |
| Modell | 90YV0N12-M0NA00 |
| EAN | 4711636057899 |
| Zum Hersteller | www.asus.com/motherboards-components/gra... |
| Kontaktieren Sie den Hersteller | qr.asus.com/ProductSafety |
| Produktbeschreibung | ASUS Dual GeForce RTX 5060 8GB - OC Edition - Grafikkarte - GeForce RTX 5060 - 8 GB |
| Gerätetyp | Grafikkarte |
| Bustyp | PCI Express 5.0 |
| Grafikprozessor | NVIDIA GeForce RTX 5060 - bis zu 623 TOPS |
| Arbeitsspeicher | 8 GB GDDR7 |
| Speichergeschwindigkeit | 28 Gbps |
| Boost-Takt | 2535 MHz |
| Takt erhöhen (OC) | 2565 MHz |
| CUDA-Kerne | 3840 |
| Speicherschnittstelle | 128-bit |
| Max Auflösung | 7680 x 4320 |
| Anzahl der max. unterstützten Bildschirme | 4 |
| Schnittstellendetails | 3 x DisplayPort HDMI |
| API-Unterstützung | OpenGL 4.6 |
| Abmessungen (Breite x Tiefe x Höhe) | 5 cm x 22.8 cm x 12.3 cm |
Technische Daten
| Allgemein | |
| Gerätetyp | Grafikkarte |
| Bustyp | PCI Express 5.0 |
| Grafikprozessor | NVIDIA GeForce RTX 5060 |
| Boost-Takt | 2535 MHz |
| Takt erhöhen (OC) | 2565 MHz |
| CUDA-Kerne | 3840 |
| Max Auflösung | 7680 x 4320 |
| Anzahl der max. unterstützten Bildschirme | 4 |
| Schnittstellendetails | 3 x DisplayPort HDMI |
| API-Unterstützung | OpenGL 4.6 |

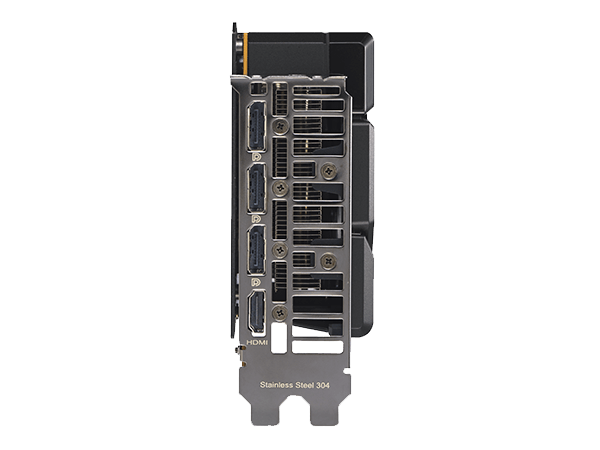

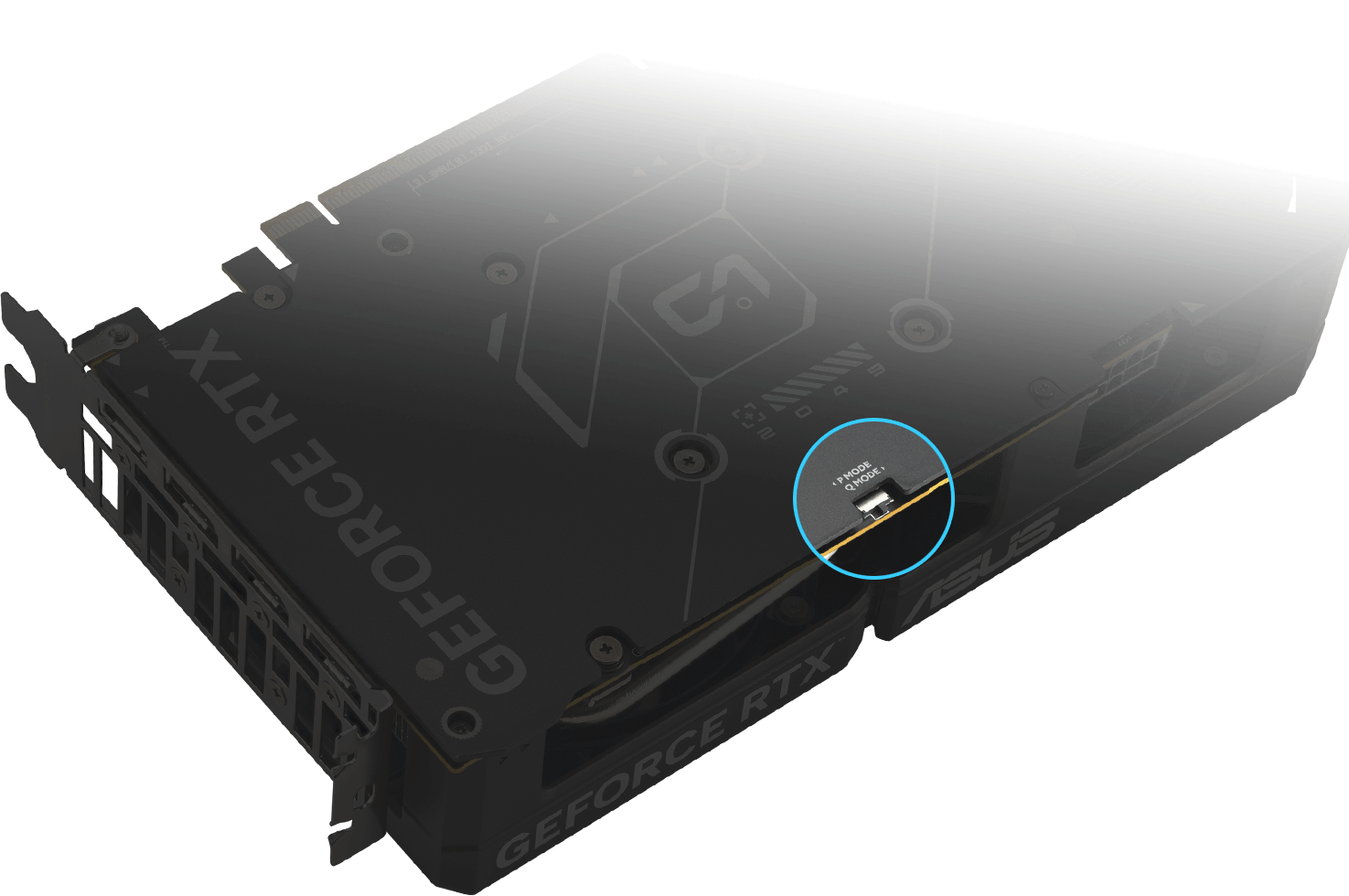

| Besonderheiten | NVIDIA GeForce SFF-Ready, 2.5-slot Fan Cooler, Axial-tech Fan Design, belüftete Rückplatte, Doppelkugel-Lüfter, Dual Bios, NVIDIA G-Sync-fähig, NVIDIA Avatar Cloud Engine (ACE), 5. Generation Tensor Cores, 4. Generation Ray Tracing Cores, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, 0dB Technology, Montagehalterung aus Edelstahl, AUTO-EXTREME-Technologie |
| Arbeitsspeicher | |
| Grösse | 8 GB |
| Technologie | GDDR7 SDRAM |
| Speichergeschwindigkeit | 28 Gbps |
| Busbreite | 128-bit |
| Leistung | |
| NPU-Leistung bis zu (TOPS) | 623 TOPS |
| Systemanforderungen | |
| Erfoderliche Leistungsversorgung | 550 W |
| Zusätzliche Anforderungen | 8-poliger CPU-Stromanschluss, 2 benachbarte PCI-Steckplätze |
| Verschiedenes | |
| Zubehör im Lieferumfang | Dankeskarte |
| Software inbegriffen | ASUS GPU Tweak III |
| Breite | 5 cm |
| Tiefe | 22.8 cm |
| Höhe | 12.3 cm |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
