ASRock Z790 PG Lightning
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- Unterstützt Intel® Core ™ -Prozessoren der 13. und 12. Generation
- 4x DDR5-DIMM-Steckplätze, ungepufferten Speicher bis zu 6800+(OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key-E für WLAN
- Max. Kapazität des Systemspeichers: 128 GB
- Unterstützt Intel ® Extreme Memory Profile (XMP) 3.0
| Allgemein | |
|---|---|
| Hersteller | ASRock |
| Herst.Art.Nr. | 90-MXBKA0-A0UAYZ |
| EAN | 4710483940965 |
| Hauptmerkmale | |
|---|---|
| Produktbeschreibung | ASRock Z790 PG Lightning - Motherboard - ATX - LGA1700-Sockel - Z790 |
| Produkttyp | Motherboard - ATX |
| Chipsatz | Intel Z790 |
| Prozessorsockel | 1 x LGA1700-Sockel |
| Kompatible Prozessoren | (unterstützt 12. und 13. Generation von Intel Core / Pentium Gold / Celeron) |
| Max. RAM-Größe | 128 GB |
| Unterstütztes RAM | 4 DIMM-Steckplätze - DDR5, non-ECC, ungepuffert |
| Massenspeicher-Schnittstellen | 4 x SATA-600 (RAID), 4 x Hyper M.2 |
| USB-/FireWire-Anschlüsse | 1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 5 x USB 3.2 Gen 1 + 1 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 über eine interne Stiftleiste) |
| Audio | HD Audio (8-Kanal) |
| LAN | 2.5 Gigabit Ethernet |
| Allgemein | |
|---|---|
| Produkttyp | Motherboard - ATX |
| Chipsatz | Intel Z790 |
| Prozessorsockel | LGA1700-Sockel |
| Max. Anz. Prozessoren | 1 |
| Kompatible Prozessoren | (unterstützt 12. und 13. Generation von Intel Core / Pentium Gold / Celeron) |
| Unterstützter RAM | |
|---|---|
| Max. Größe | 128 GB |
| Technologie | DDR5 |
| Bustakt | 4800 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6800 MHz (O.C.), 3600 MHz, 4400 MHz |
| Unterstützte RAM-Integritätsprüfung | Non-ECC |
| Registriert oder gepuffert | Ungepuffert |
| Besonderheiten | Zwei-Kanal-Speicherarchitektur, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | |
|---|---|
| Typ | HD Audio (8-Kanal) |
| Audio Codec | Realtek ALC897 |
| Kompatibilität | High-Definition-Audio |
| LAN | |
|---|---|
| Netzwerkcontroller | Dragon RTL8125BG |
| Netzwerkschnittstellen | 2.5 Gigabit Ethernet |
| Erweiterung/Konnektivität | |
|---|---|
| Erweiterungssteckplätze | 1 x CPU 4 x DIMM 288-polig 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-Modus) 3 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E Steckplatz) 3 x M.2 socket (2260/2280 M.2 Key M Slot) 1 x M.2 socket (2242/2260/2280 M.2 Slot mit Key M) |
| Speicherschnittstellen | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -anschlussstellen: 3 x M.2 - RAID 0 / RAID 1 / RAID 5 SATA-600 / PCIe 4.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |

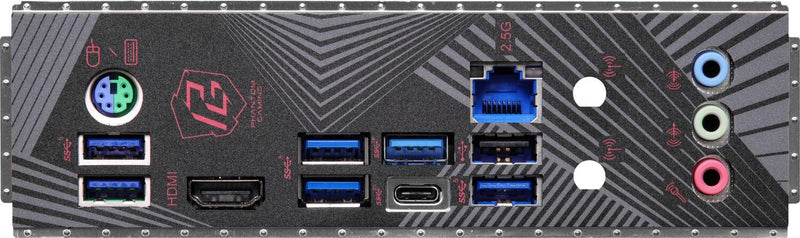

| Schnittstellen | 1 x HDMI 1 x USB 2.0 1 x USB-C 3.2 Gen2x2 1 x USB 3.2 Gen 2 5 x USB 3.2 Gen 1 1 x LAN (2.5Gigabit Ethernet) 1 x PS/2-Tastatur/-maus 1 x Mikrofon - Mini-Klinkenstecker 1 x Audio Line-In - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker |
| Interne Schnittstellen | 1 x USB-C 3.2 Gen 1 - Stiftleiste 4 x USB 3.2 Gen 1 - Stiftleiste 2 x USB 2.0 - Stiftleiste 1 x Audio - Stiftleiste 1 x Thunderbolt - Stiftleiste 1 x SPI - Stiftleiste 1 x Embedded DisplayPort (eDP) - Stiftleiste |
| Stromanschlüsse | Hauptstromanschluss, 24-polig, 2 8-polige ATX12V-Anschlüsse |
| Besonderheiten | |
|---|---|
| BIOS-Typ | AMI |
| BIOS-Funktionen | UEFI BIOS |
| Hardwarefeatures | Unterstützung für ATI CrossFire-Technologie, ASRock Instant Flash, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, 6 Layer PCB, Dr.MOS MOSFET, ASRock EZ Mode, Hi-Density Power Connectors, Water Pump Header, vormontiertes E/A-Schild, Intel Turbo Boost Max Technology 3.0, ASRock POST Status Checker (PSC), verstärkte PCIe-Slots, 14+1+1 Phase Power Design, Surface Mount Technology (SMT), Intel Hybrid Technology, ASRock Auto Driver Installer, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB) |
| Verschiedenes | |
|---|---|
| Zubehör im Lieferumfang | Abstandshalter für M.2-Sockel, 5 x M.2 Schrauben |
| Enthaltene Kabel | 2 x Serial ATA-Kabel |
| Software inbegriffen | ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software |
| Kennzeichnung | EuP Ready, ErP Ready, HDCP 2.3 |
| Breite | 30.5 cm |
| Tiefe | 24.4 cm |
