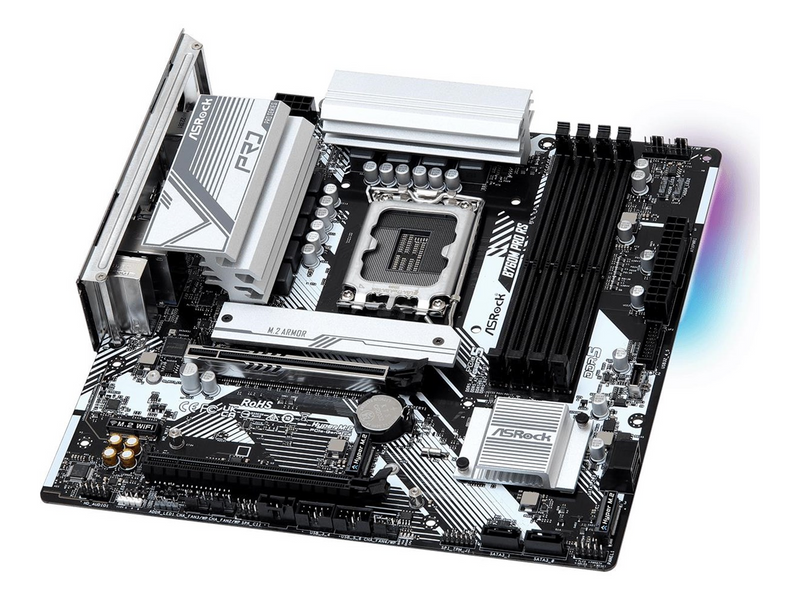

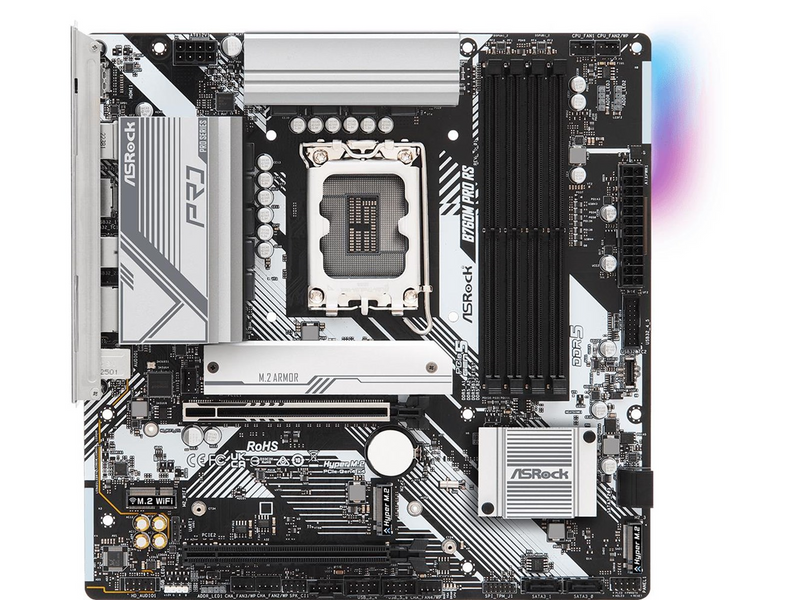

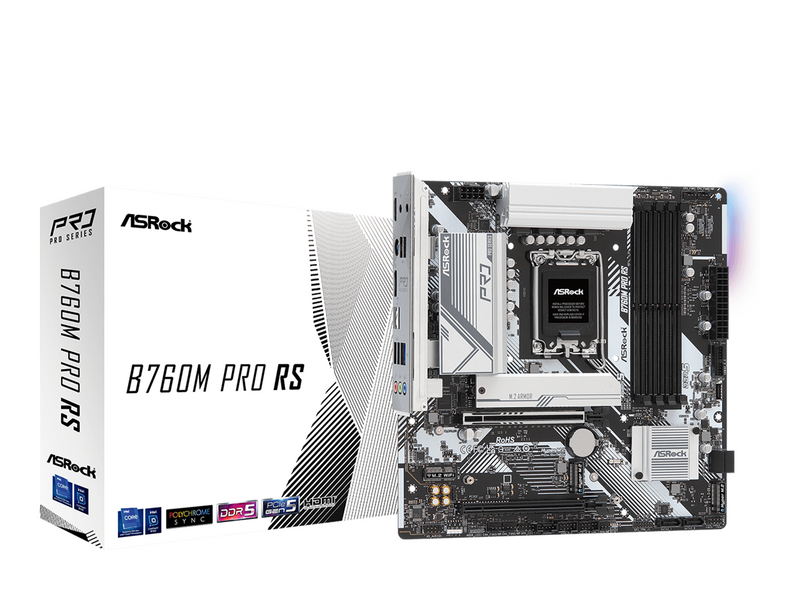

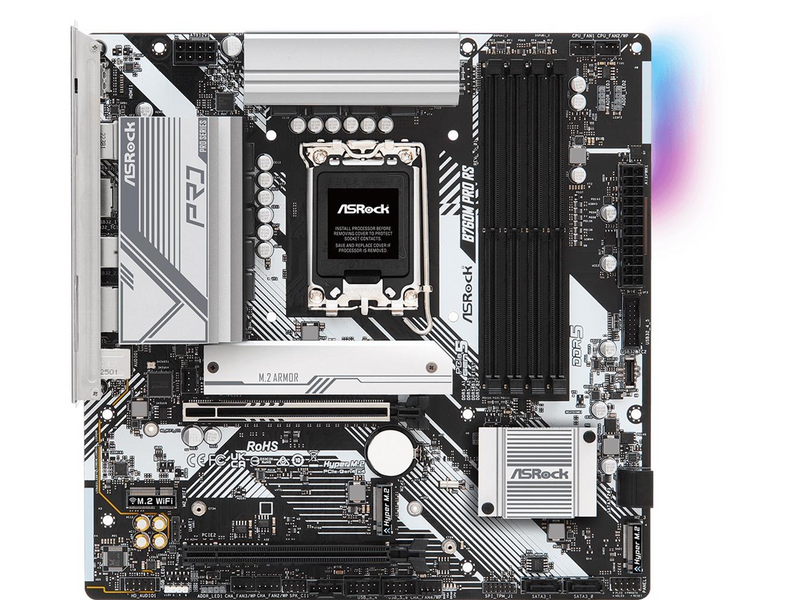

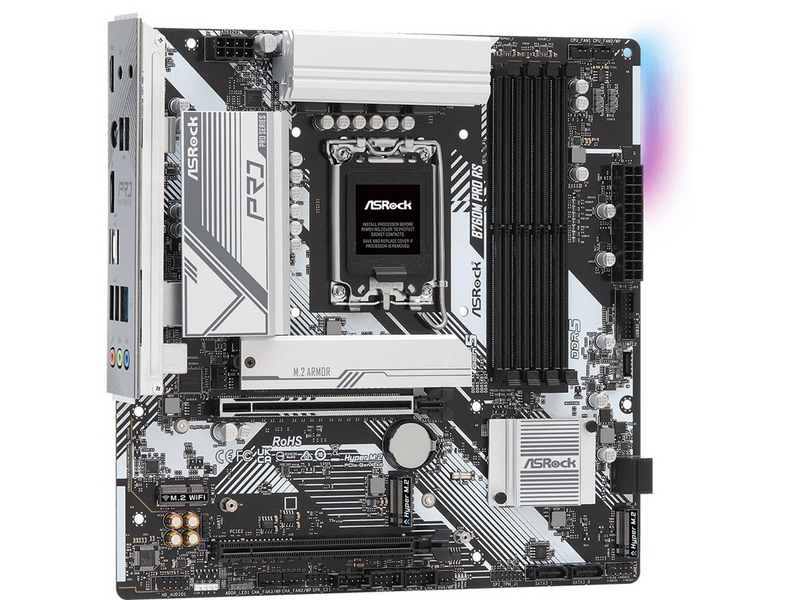

ASRock B760M PRO RS Mainboard - Intel B760 - Intel LGA1700 socket - DDR5 RAM - Micro-ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | ASRock |
| Waren-Nr.: | 3191676 |
| Modell: | 90-MXBLH0-A0UAYZ |
| EAN: | 4710483942723 |
| Zum Hersteller:: | ... |
| Produktbeschreibung: | ASRock B760M PRO RS/D5 - Motherboard - micro ATX - LGA1700-Sockel - B760 |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | Intel B760 |
| Prozessorsockel: | 1 x LGA1700-Sockel |
| Kompatible Prozessoren: | (unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation) |
| Max. RAM-Größe: | 192 GB |
| Unterstütztes RAM: | 4 DIMM-Steckplätze - DDR5, non-ECC, ungepuffert |
| Massenspeicher-Schnittstellen: | 4 x SATA-600 (RAID), 3 x Hyper M.2 |
| USB-/FireWire-Anschlüsse: | 1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste) |
| Audio: | HD Audio (8-Kanal) |
| LAN: | 2.5 Gigabit Ethernet |
| Allgemein | |
| Produkttyp: | Motherboard - micro ATX |
| Chipsatz: | Intel B760 |
| Prozessorsockel: | LGA1700-Sockel |
| Max. Anz. Prozessoren: | 1 |
| Kompatible Prozessoren: | (unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation) |
| Unterstützter RAM | |
| Max. Größe: | 192 GB |
| Technologie: | DDR5 |
| Bustakt: | 7200 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung: | Non-ECC |
| Registriert oder gepuffert: | Ungepuffert |
| Besonderheiten: | Zwei-Kanal-Speicherarchitektur, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO Technology |
| Audio | |
| Typ: | HD Audio (8-Kanal) |
| Audio Codec: | Realtek ALC897 |
| Kompatibilität: | High-Definition-Audio |
| LAN | |
| Netzwerkcontroller: | Dragon RTL8125BG |
| Netzwerkschnittstellen: | 2.5 Gigabit Ethernet |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze: | 1 x CPU 4 x DIMM 288-polig 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4-Modus) 1 x M.2 socket (2230 M.2 Key E Steckplatz) 1 x M.2 socket (2242/2260/2280 M.2 Slot mit Key M) 1 x M.2 socket (2280 M.2 Key M Steckplatz) 1 x M.2 socket (2280 M.2 Key M Steckplatz) |
| Speicherschnittstellen: | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -anschlussstellen: 3 x M.2 |

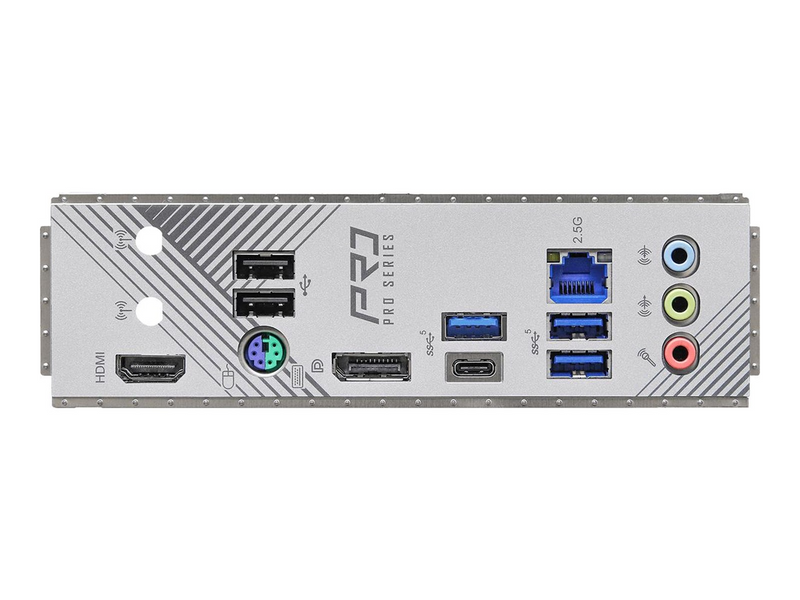

| Schnittstellen: | 1 x PS/2-Tastatur/-maus 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x Mikrofon - Mini-Klinkenstecker 1 x Audio Line-In - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker |
| Interne Schnittstellen: | 1 x USB-C 3.2 Gen 1 - Stiftleiste 2 x USB 3.2 Gen 1 - Stiftleiste 4 x USB 2.0 - Stiftleiste 1 x SPI - Stiftleiste 1 x Lautsprecher - Stiftleiste 1 x Audio - Stiftleiste 1 x Thunderbolt - Stiftleiste |
| Stromanschlüsse: | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ: | AMI |
| BIOS-Funktionen: | UEFI BIOS |
| Hardwarefeatures: | ASRock Instant Flash, ESD Protection, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, 6 Layer PCB, Dr.MOS MOSFET, ASRock EZ Mode, ASRock Steel Slots, Water Pump Header, vormontiertes E/A-Schild, Intel Turbo Boost Max Technology 3.0, ASRock POST Status Checker (PSC), Surface Mount Technology (SMT), Intel Hybrid Technology, ASRock Auto Driver Installer, 7+1+1 Phase Power Design, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB), 50 A Leistungsstufe, Intel Volume Management Device (VMD), DDR5-Speicherschutzschaltung |
