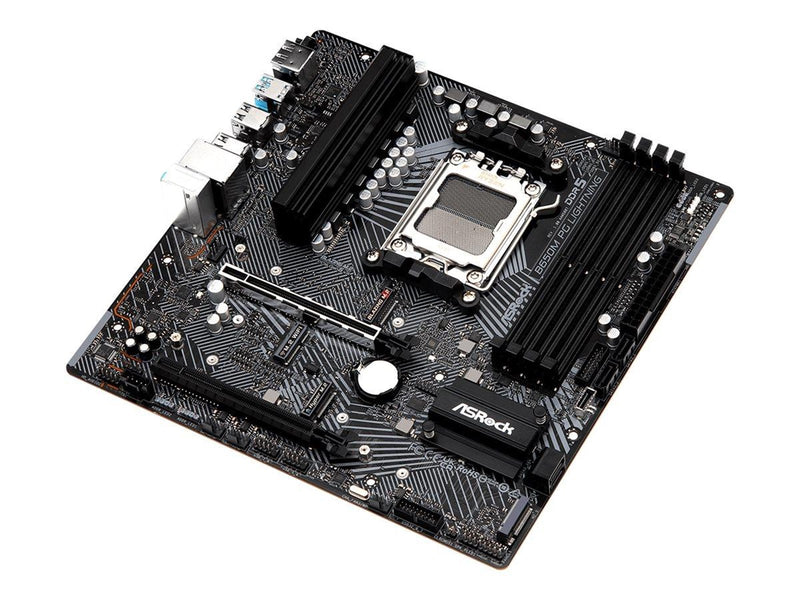

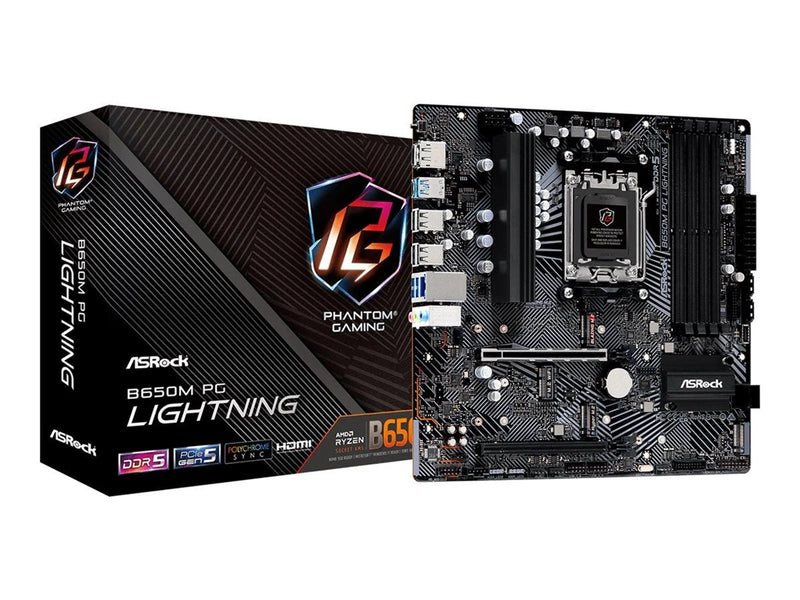

ASRock B650M PG LIGHTNING Mainboard - AMD B650 - AMD AM5 - DDR5 RAM - Micro-ATX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Mainboard, größe: Micro-ATX, AMD AM5 socket, AMD B650 chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5600 4 x DIMM slots, speicheranschlüsse: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 / 1 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2 type A & C, monitorverbindung: 1 x Displayport 1.4 / 1 x HDMI 2.1, Realtek 8125BG 2.5 Gigabit netzwerk (LAN), AMD Vega Graphics unterstützt (CPU mit VGA erforderlich), Realtek ALC897 HD Audio (8-Kanäle) soundkarte, ASRock Polychrome SYNC software
For connectivity, the ASRock B650M PG Lightning offers a variety of options including HDMI, DisplayPort, USB 3.2 Gen 2, and USB-C 3.2 Gen 2 ports, catering to all your peripheral and display needs. It also features high-speed storage interfaces like M.2 socket and Serial ATA-600 (RAID), allowing for fast data transfer and robust storage configurations. With its 2.5 Gigabit Ethernet, enjoy high-speed, stable network connections, enhancing your online gaming and streaming experiences.
This motherboard also boasts features such as AMD EXPO technology for optimized memory performance, dual-channel memory architecture, and support for DDR5 SDRAM at speeds up to 7200 MHz (O.C.). With its comprehensive feature set and robust design, the ASRock B650M PG Lightning is a solid foundation for building a powerful, future-ready PC.
Generell
| Hersteller | ASRock |
| Waren-Nr. | 3215351 |
| Modell | 90-MXBMV0-A0UAYZ |
| EAN | 4710483943829 |
| Zum Hersteller | pg.asrock.com/MB/AMD/B650M%20PG%20Lightn... |
| Produktbeschreibung | ASRock B650M PG Lightning - Motherboard - micro ATX - Socket AM5 - AMD B650 |
| Produkttyp | Motherboard - micro ATX |
| Chipsatz | AMD B650 |
| Prozessorsockel | 1 x Socket AM5 |
| Kompatible Prozessoren | Ryzen (unterstützt Ryzen 7000 Serie) |
| Max. RAM-Größe | 192 GB |
| Unterstütztes RAM | 4 DIMM-Steckplätze - DDR5, non-ECC, ungepuffert |
| Massenspeicher-Schnittstellen | 4 x SATA-600 (RAID), 3 x M.2 |
| USB-/FireWire-Anschlüsse | 1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 über eine interne Stiftleiste) |
| Audio | HD Audio (8-Kanal) |
| LAN | 2.5 Gigabit Ethernet |
Technische Daten
| Allgemein | |
| Produkttyp | Motherboard - micro ATX |
| Chipsatz | AMD B650 |
| Prozessorsockel | Socket AM5 |
| Max. Anz. Prozessoren | 1 |
| Kompatible Prozessoren | Ryzen (unterstützt Ryzen 7000 Serie) |
| Unterstützter RAM | |
| Max. Größe | 192 GB |
| Technologie | DDR5 |
| Bustakt | 7200 MHz (O.C.), 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz (O.C.), 6000 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung | Non-ECC |
| Registriert oder gepuffert | Ungepuffert |
| Besonderheiten | Zwei-Kanal-Speicherarchitektur, AMD EXPO-Technologie |
| Audio | |
| Typ | HD Audio (8-Kanal) |
| Audio Codec | Realtek ALC897 |
| Kompatibilität | High-Definition-Audio |
| LAN | |
| Netzwerkcontroller | Dragon RTL8125BG |
| Netzwerkschnittstellen | 2.5 Gigabit Ethernet |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze | 1 x CPU 4 x DIMM 288-polig 1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 3 x M.2 socket (2260/2280 M.2 Key M Steckplatz) |
| Speicherschnittstellen | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -anschlussstellen: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Schnittstellen | 1 x HDMI 1 x DisplayPort 1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 2 x USB 3.1 Gen 1 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x Audio Line-In - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker 1 x Mikrofon - Mini-Klinkenstecker |
| Interne Schnittstellen | 4 x USB 2.0 - Stiftleiste 4 x USB 3.2 Gen 1 - Stiftleiste 1 x USB-C 3.2 Gen 1 - Stiftleiste 1 x SPI - Stiftleiste 1 x Lautsprecher - Stiftleiste 1 x Audio - Stiftleiste 1 x Thunderbolt 4 - Stiftleiste |
| Stromanschlüsse | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ | AMI |
| BIOS-Funktionen | UEFI BIOS |
| Hardwarefeatures | 6+2+1 Phase Power Design, Water Pump Header, ASRock POST Status Checker (PSC), ASRock Auto Driver Installer, BIOS FlashBack-Taste, Dr.MOS MOSFET, ASRock OC Tuner, AMD Precision Boost Overdrive (PBO), verstärkte PCIe-Steckplätze, Nahimic Audio Enhacer |
| Verschiedenes | |
| Zubehör im Lieferumfang | I/O-Abschirmung, 3 x M.2 Schrauben |
| Enthaltene Kabel | 2 x Serial ATA-Kabel |
| Software inbegriffen | ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC, ASRock Phantom Gaming LAN Software |
| Kennzeichnung | RoHS, UKCA, FCC, EuP Ready, ErP Ready |
| Breite | 24.4 cm |
| Tiefe | 24.4 cm |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
