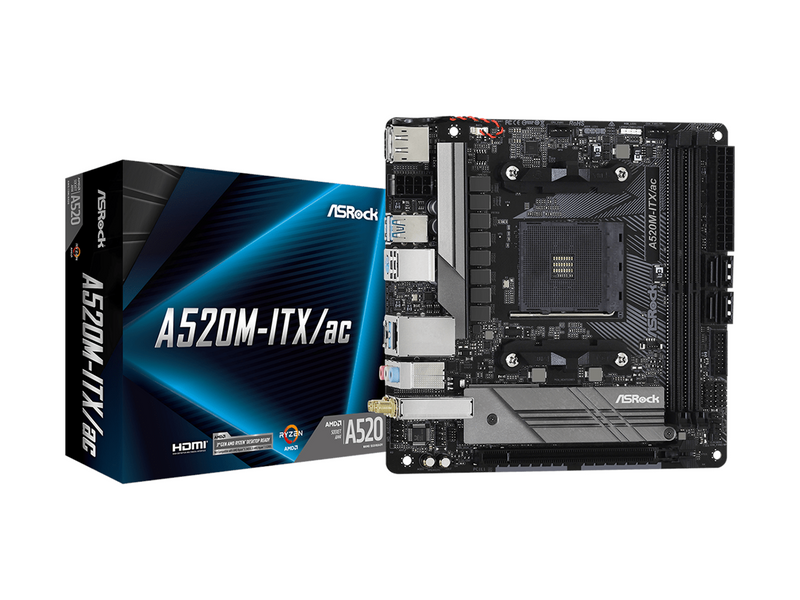

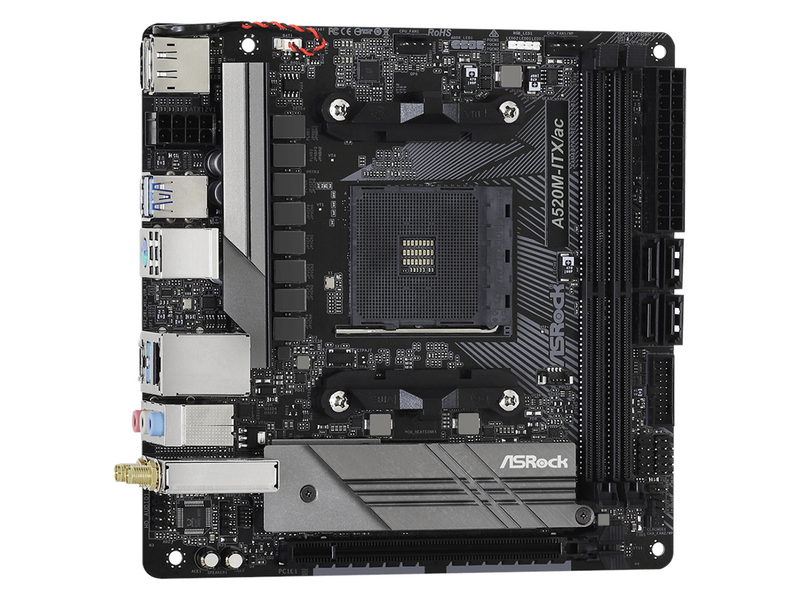

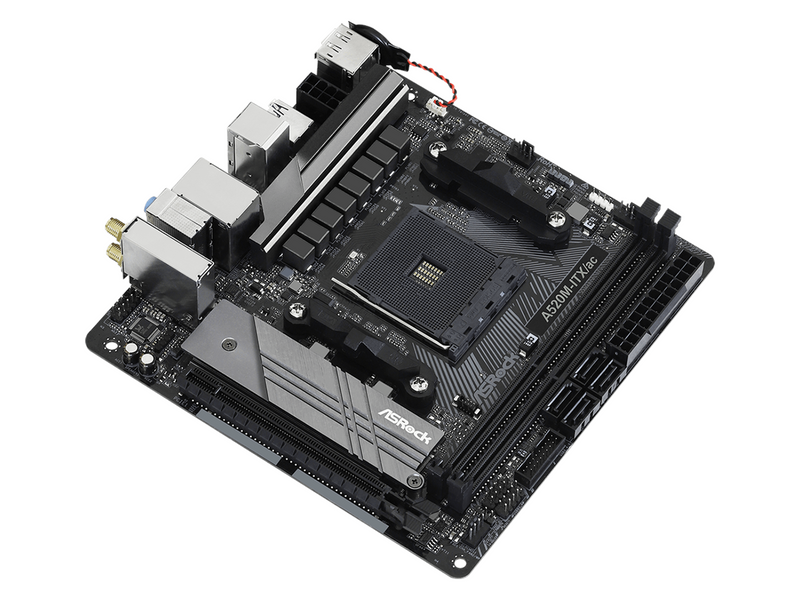

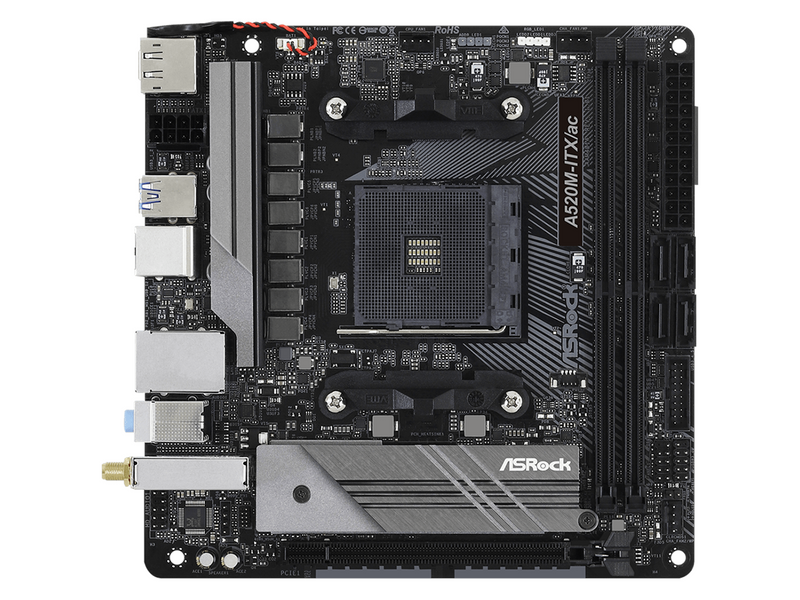

ASRock A520M-ITX/AC Mainboard - AMD A520 - AMD AM4 socket - DDR4 RAM - Mini-ITX
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
| Generell | |
| Hersteller: | ASRock |
| Waren-Nr.: | 2875284 |
| Modell: | 90-MXBDG0-A0UAYZ |
| EAN: | 4710483932045 |
| Zum Hersteller:: | .... |
| Produktbeschreibung: | ASRock A520M-ITX/ac - Motherboard - Mini-ITX - Socket AM4 - AMD A520 |
| Produkttyp: | Motherboard - Mini-ITX |
| Chipsatz: | AMD A520 |
| Prozessorsockel: | 1 x Socket AM4 |
| Kompatible Prozessoren: | Ryzen (unterstützt Ryzen der 3. Generation) |
| Max. RAM-Größe: | 64 GB |
| Unterstütztes RAM: | 2 DIMM-Steckplätze - DDR4, non-ECC, ECC, ungepuffert |
| Massenspeicher-Schnittstellen: | 4 x SATA-600 (RAID), 1 x Ultra M.2 |
| USB-/FireWire-Anschlüsse: | 1 x USB-C Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 über eine interne Stiftleiste) |
| Max. zugewiesene RAM-Größe: | 16 GB |
| Audio: | HD Audio (8-Kanal) |
| LAN: | Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.2 |
| Allgemein | |
| Produkttyp: | Motherboard - Mini-ITX |
| Chipsatz: | AMD A520 |
| Prozessorsockel: | Socket AM4 |
| Max. Anz. Prozessoren: | 1 |
| Kompatible Prozessoren: | Ryzen (unterstützt Ryzen der 3. Generation) |
| Unterstützter RAM | |
| Max. Größe: | 64 GB |
| Technologie: | DDR4 |
| Bustakt: | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4466 MHz (O.C.) |
| Unterstützte RAM-Integritätsprüfung: | Non-ECC, ECC |
| Registriert oder gepuffert: | Ungepuffert |
| Besonderheiten: | Zwei-Kanal-Speicherarchitektur, Intel Extreme Memory Profiles (XMP) |
| Grafik | |
| Max. zugewiesene RAM-Größe: | 16 GB |
| Audio | |
| Typ: | HD Audio (8-Kanal) |
| Audio Codec: | Realtek ALC887 |
| Kompatibilität: | High-Definition-Audio |
| LAN | |
| Netzwerkcontroller: | Realtek RTL8111H |
| Netzwerkschnittstellen: | Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.2 |
| Erweiterung/Konnektivität | |
| Erweiterungssteckplätze: | 1 x CPU 2 x DIMM 288-polig 1 x PCIe 3.0 x16 1 x M.2 socket (Key E) |
| Speicherschnittstellen: | SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -anschlussstellen: 1 x Ultra M.2 |

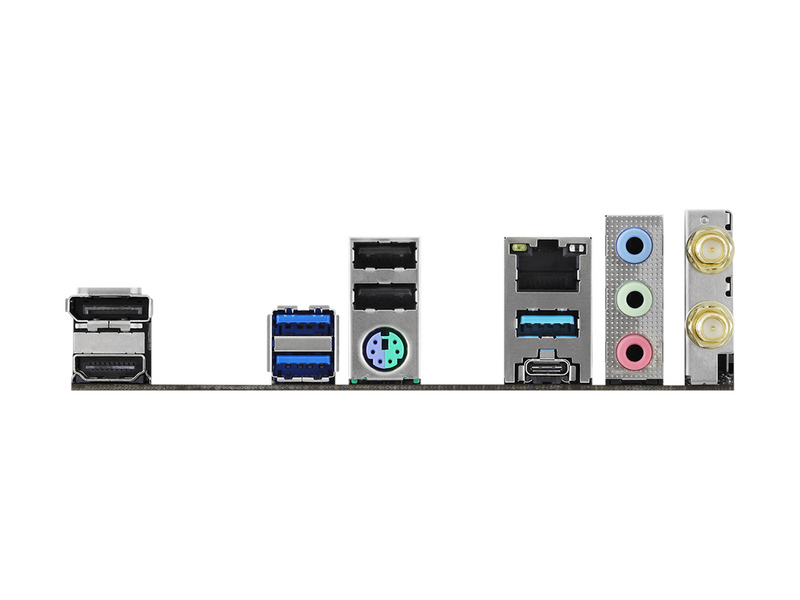

| Schnittstellen: | 1 x PS/2-Tastatur/-maus 1 x LAN (Gigabit Ethernet) 1 x DisplayPort 1 x HDMI 2 x USB 2.0 3 x USB 3.2 Gen 1 1 x Audio Line-In - Mini-Klinkenstecker 1 x Audio Line-Out - Mini-Klinkenstecker 1 x Mikrofon - Mini-Klinkenstecker 1 x USB-C Gen1 |
| Interne Schnittstellen: | 2 x USB 2.0 - Stiftleiste 2 x USB 3.2 Gen 1 - Stiftleiste 1 x Audio - Stiftleiste |
| Stromanschlüsse: | Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig |
| Besonderheiten | |
| BIOS-Typ: | AMI |
| BIOS-Funktionen: | JumperFree, SMBIOS 2.3-Unterstützung, UEFI BIOS, ACPI 5,1 Unterstützung |
| Hardwareüberwachung: | CPU-Kerntemperatur, Gehäusetemperatur, Drehzahlmesser für CPU-Lüfter, Drehzahlmesser Gehäuselüfter, Systemspannung, CPU-Core-Spannung |
| Sleep / Wake up: | Wake-On-LAN (WOL) |
| Hardwarefeatures: | 8 Phase Power Design, ASRock Instant Flash, All-Solid-Kondensator-Motherboarddesign, 15µ Gold Contact, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, ASRock Live Update, ASRock Ultra M.2, Premium 60A Power Choke, ASRock Full Coverage M.2 Heatsink |
