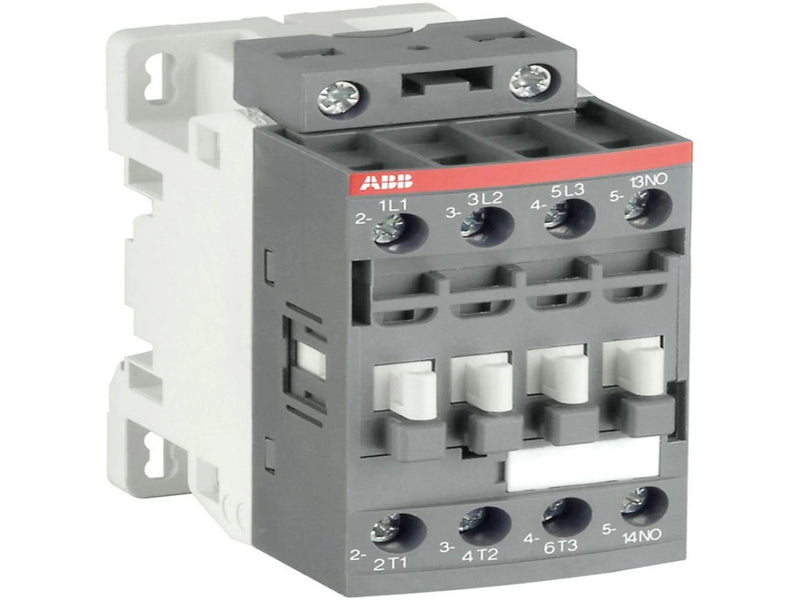

ABB Af16z-30-10-21 24-60vac-dc contactor
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
AF16Z contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF..Z contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...250 V 50/60 Hz or 12...250 V DC. AF..Z contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF..Z contactors allow direct control by PLC-output 24 V DC 500 mA and obtain a reduced holding coil consumption. AF..Z contactors withstand short voltage dips and voltage sags (SEMI F47-0706 compliance) between 24...250 V 50/60 Hz AF..Z contactors have built-in surge protection and do not require additional surge suppressors The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks. (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.
Generell
| Hersteller | ABB |
| Waren-Nr. | 2755562 |
| Modell | 1SBL176001R2110 |
| EAN | 3471523113817 |
| Produkttyp | Schütz |
| Produktfarbe | Grau |
| Anzahl der Pole | 3P |
| Abmessungen (BxTxH) | 45 x 77 x 86 mm |
| Gewicht | 31 g |
| Verpackungsbreite | 87 mm |
| Verpackungstiefe | 79 mm |
| Verpackungshöhe | 47 mm |
| Paketgewicht | 31 g |
Technische Daten
| Merkmale | |
| Produkttyp | Schütz |
| Produktfarbe | Grau |
| Anzahl der Pole | 3P |
| Gewicht und Abmessungen | |
| Abmessungen (BxTxH) | 45 x 77 x 86 mm |
| Gewicht | 31 g |
| Verpackungsbreite | 87 mm |
| Verpackungstiefe | 79 mm |
| Verpackungshöhe | 47 mm |
| Paketgewicht | 31 g |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
