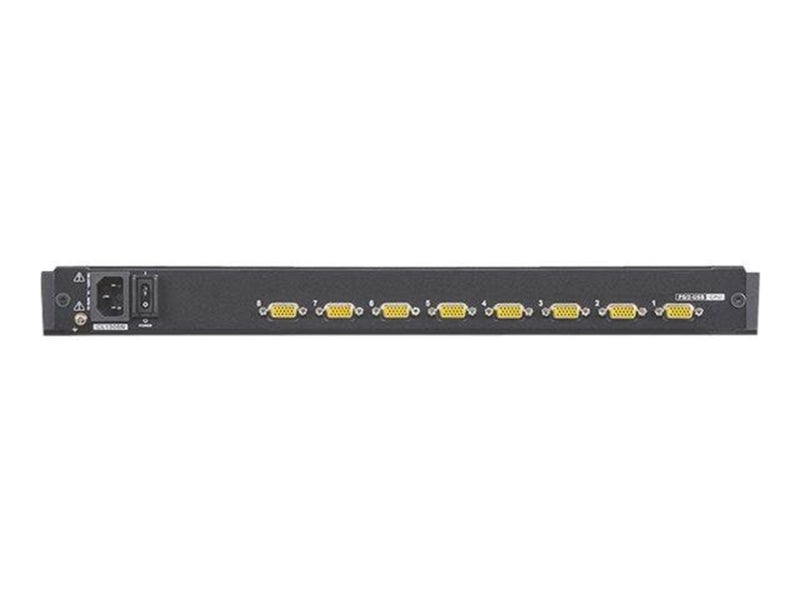

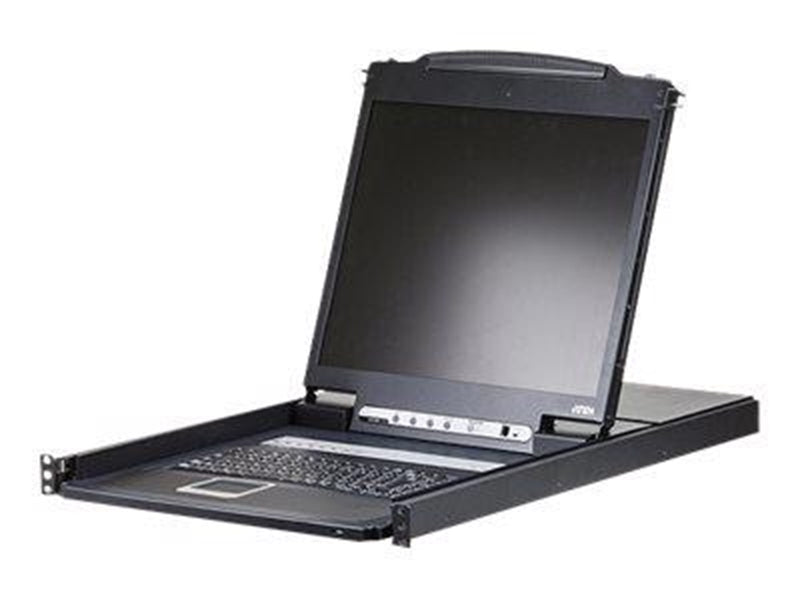

19" ATEN LCD KVM Switches CL1308N - KVM console - 19"

Original price €1.224,73 - Original price €1.224,73
Original price
€1.224,73
€1.224,73 - €1.224,73
Current price €1.224,73
Availability:
12 in stock, ready to be shipped

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

KVM-Konsole mit KVM-Switch, 8 Anschlüsse, PS/2, USB, 48.3 cm (19"), Rack, einbaufähig, 1280 x 1024 @ 75 Hz

Günstigste Versandoption 4,99 €
Verfügbar - 6-8 Werktage Lieferzeit
With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.The CL1308 LCD KVM switch features an integrated 19" LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.

Generell

Hersteller ATEN
Waren-Nr. 3136365
Modell CL1308N-AT-XG
EAN 4719264642401
Zum Hersteller www.aten.com
Anzahl der Computer 128
Tastatur Porttyp PS/2
Maus-Porttyp USB
Video Porttyp VGA
Konsolenanschluss VGA (D-Sub)
Anzahl VGA (D-Sub) Anschlüsse 8
HD-Typ WUXGA
Maximale Auflösung 1920 x 1200 Pixel
Videobandbreite 60 Hz
Scanning interval 1,255 s
DDC2B-Unterstützung Ja
Hot-Plug-Unterstützung Ja
Upgradefähige Firmware Ja
Rack-Einbau Ja
Produktfarbe Schwarz
Rack-Kapazität 1U
Gehäusematerial Metall, Kunststoff
LED-Anzeigen Ja
Schaltknopf Ja
Kurzbefehle Ja
Eingebautes Display Ja
Display LCD
Bildschirmdiagonale 48,3 cm (19")
On-Screen-Display (OSD) Ja
Energiequelle AC
Eingangsspannung 100 - 240 V
AC Eingangsfrequenz 50 - 60 Hz
Eingangsstrom 1 A
Stromverbrauch (Standardbetrieb) 22 W
Unterstützt Windows-Betriebssysteme Ja
Unterstützte Linux-Betriebssysteme Ja
Unterstützt Mac-Betriebssysteme Ja
Konformitätsbescheinigungen RoHS
Betriebstemperatur 0 - 50 °C
Temperaturbereich bei Lagerung 20 - 60 °C
Relative Luftfeuchtigkeit in Betrieb 0 - 80%
Breite 483 mm
Tiefe 689,2 mm
Höhe 44 mm
Gewicht 12,7 kg
Verpackungsbreite 668 mm
Verpackungstiefe 833 mm
Verpackungshöhe 135 mm
Paketgewicht 16,1 kg
Mitgelieferte Kabel AC, KVM
Schnellinstallationsanleitung Ja
Betriebsanleitung Ja
Rackmontageset Ja
Nettogewicht Hauptkarton 12,7 kg
Warentarifnummer (HS) 85176200
Breite des Versandkartons 668 mm
Länge des Versandkartons 833 mm
Höhe des Versandkartons 135 mm
Gewicht Versandkarton 16,5 kg
Anzahl Produkte pro Versandkarton 1 Stück(e)

Technische Daten

Anschlüsse und Schnittstellen
Anzahl der Computer 128
Tastatur Porttyp PS/2
Maus-Porttyp USB
Video Porttyp VGA
Konsolenanschluss VGA (D-Sub)
Anzahl VGA (D-Sub) Anschlüsse 8
Leistungen
HD-Typ WUXGA
Maximale Auflösung 1920 x 1200 Pixel
Videobandbreite 60 Hz
Scanning interval 1,255 s
DDC2B-Unterstützung Ja
Hot-Plug-Unterstützung Ja
Upgradefähige Firmware Ja
Design
Rack-Einbau Ja
Produktfarbe Schwarz
Rack-Kapazität 1U
Gehäusematerial Metall, Kunststoff
LED-Anzeigen Ja
Schaltknopf Ja
Kurzbefehle Ja
Bildschirm
Eingebautes Display Ja
Display LCD
Bildschirmdiagonale 48,3 cm (19")
On-Screen-Display (OSD) Ja
Energie
Energiequelle AC
Eingangsspannung 100 - 240 V
AC Eingangsfrequenz 50 - 60 Hz
Eingangsstrom 1 A
Stromverbrauch (Standardbetrieb) 22 W
Systemanforderung
Unterstützt Windows-Betriebssysteme Ja
Unterstützte Linux-Betriebssysteme Ja
Unterstützt Mac-Betriebssysteme Ja
Nachhaltigkeit
Konformitätsbescheinigungen RoHS
Betriebsbedingungen
Betriebstemperatur 0 - 50 °C
Temperaturbereich bei Lagerung 20 - 60 °C
Relative Luftfeuchtigkeit in Betrieb 0 - 80%
Gewicht und Abmessungen
Breite 483 mm
Tiefe 689,2 mm
Höhe 44 mm
Gewicht 12,7 kg
Verpackungsdaten
Verpackungsbreite 668 mm
Verpackungstiefe 833 mm
Verpackungshöhe 135 mm
Paketgewicht 16,1 kg
Lieferumfang
Mitgelieferte Kabel AC, KVM
Schnellinstallationsanleitung Ja
Betriebsanleitung Ja
Rackmontageset Ja
Logistikdaten
Nettogewicht Hauptkarton 12,7 kg
Warentarifnummer (HS) 85176200
Breite des Versandkartons 668 mm
Länge des Versandkartons 833 mm
Höhe des Versandkartons 135 mm
Gewicht Versandkarton 16,5 kg
Anzahl Produkte pro Versandkarton 1 Stück(e)
