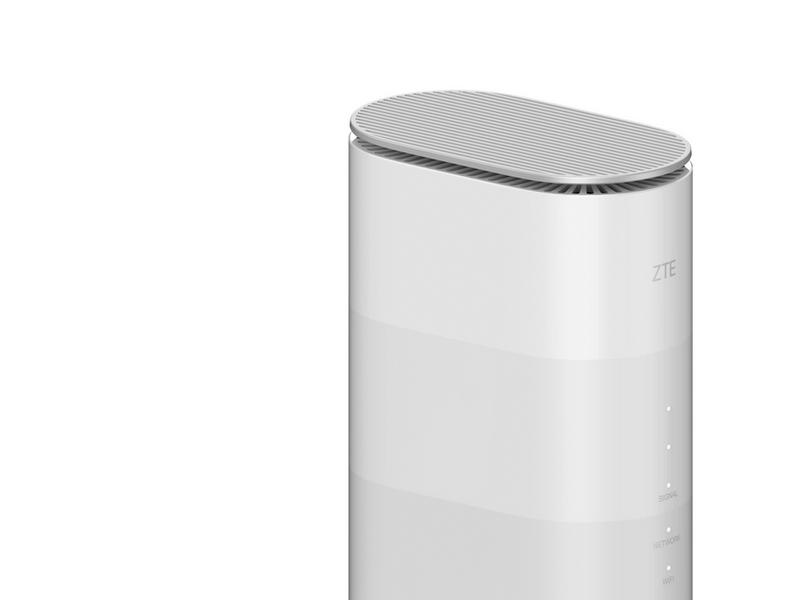

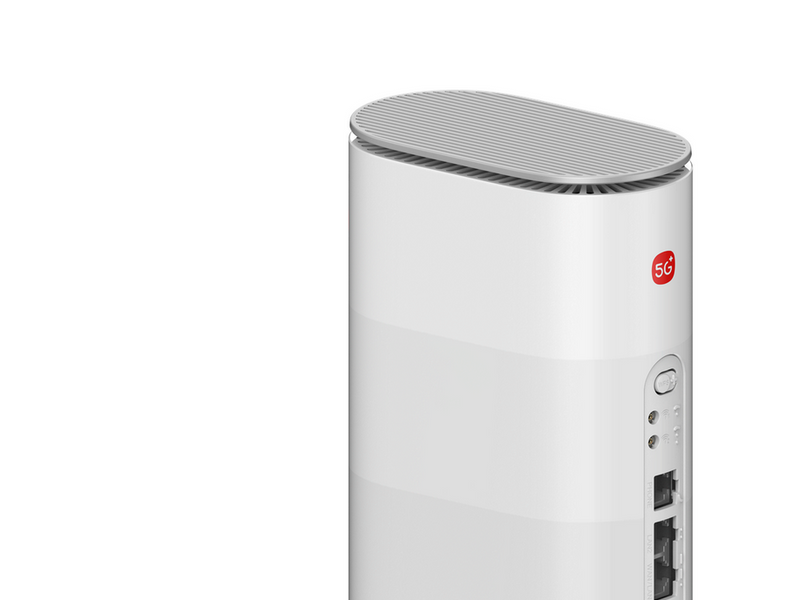

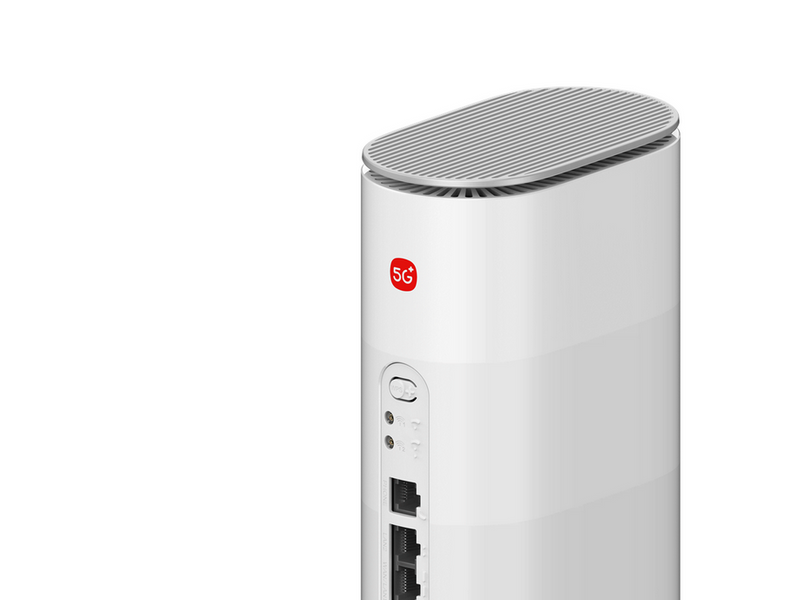

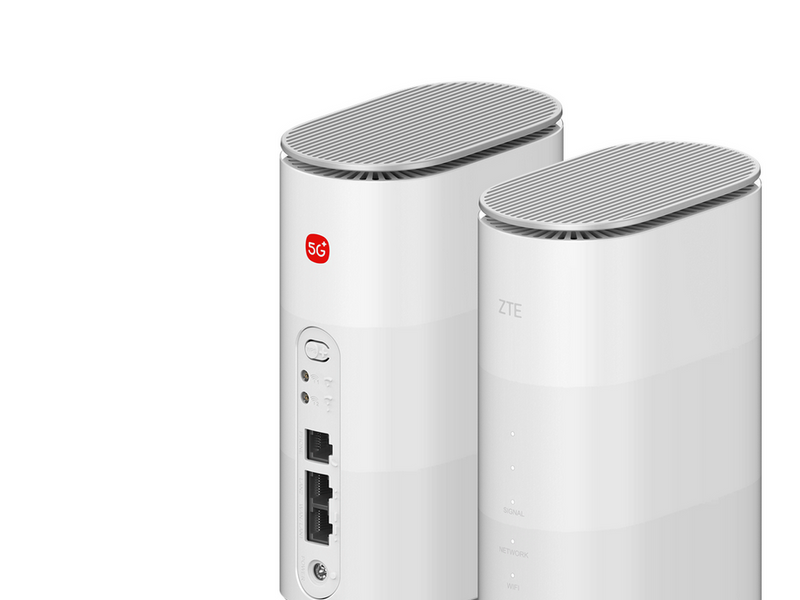

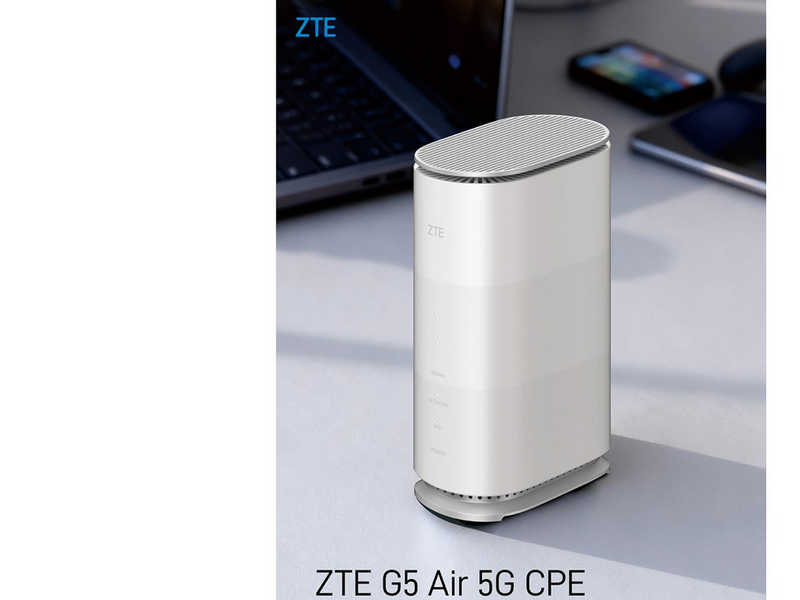

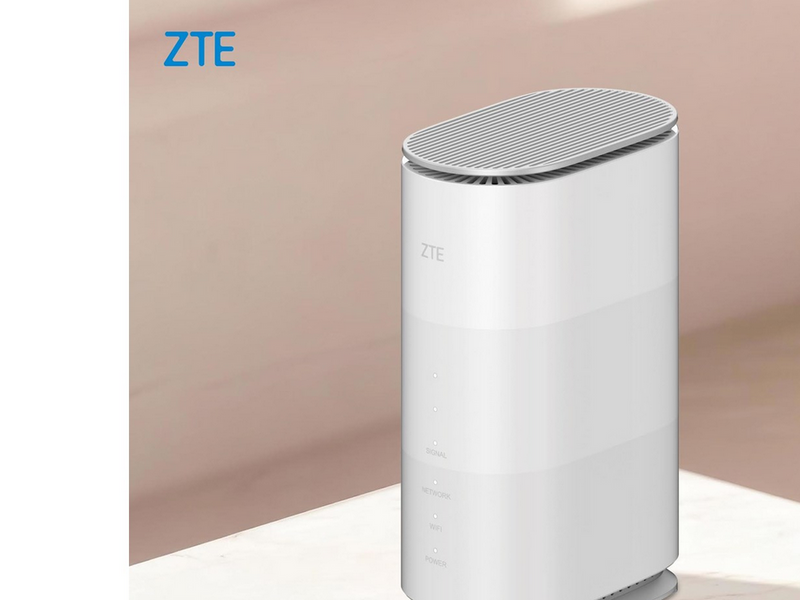

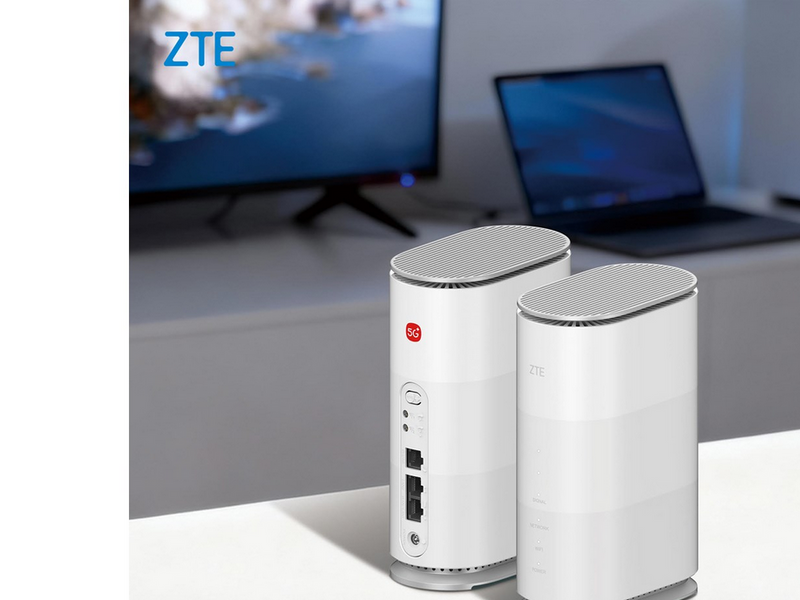

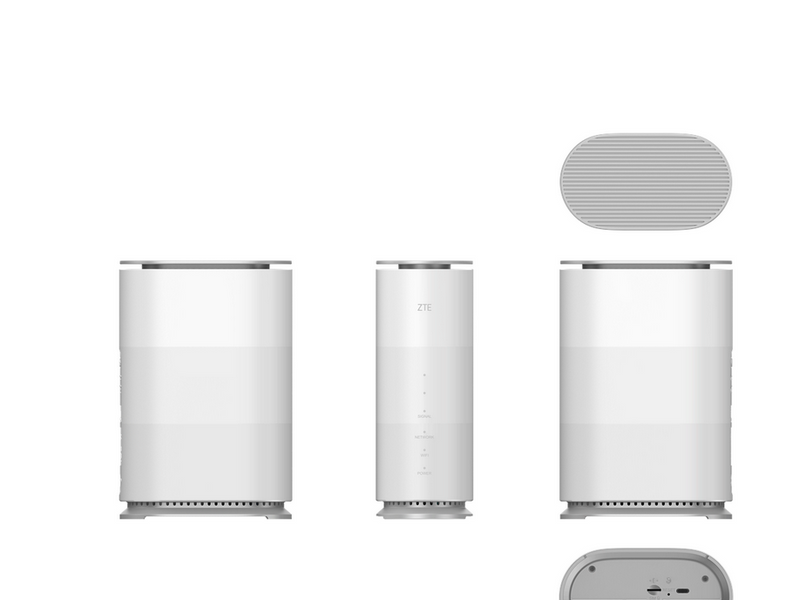

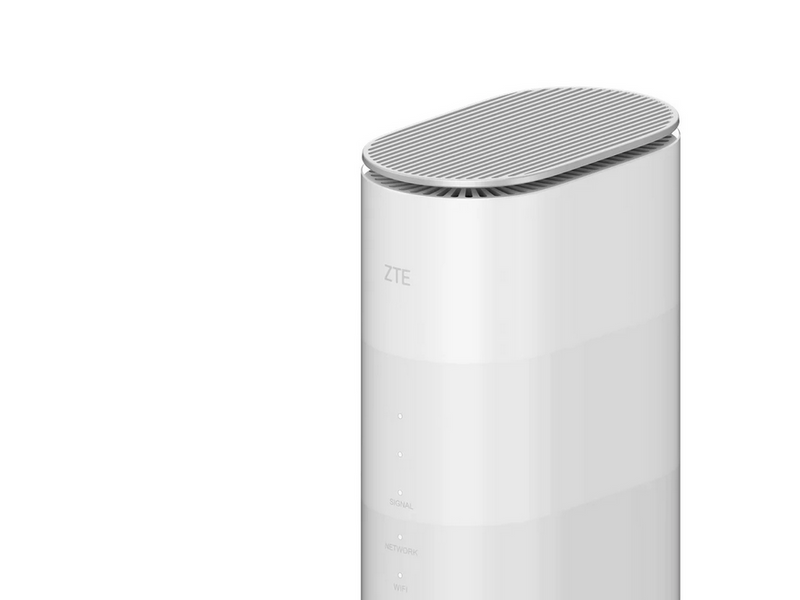

ZTE G5 Air 5G CPE Wi-Fi 7 Router - 5G 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
G5 Air is the premium model of the ZTE 5th-generation 5G wireless router series. It supports the latest 5G NR Rel.16 technologies, and has dual-band Wi-Fi7 with 2MIMO antennas, 2.5 gigabit network interfaces, and full-voice services. It integrates all indoor terminal functions required for 5G FWA service deployment, so that consumers can enjoy incredible new experience in 5G AR, cloud games, and 4K videos.
Ultra-high-speed Internet connection
With 5G NR CA and Wi-Fi7 technology, G5 Air features a 5G NR download rate of 4.29Gbps, and Wi-Fi7 downlink rate of BE3600, demonstrating the ultra-high rate and ultra-low latency of 5G networks end to end.
High-gain antennas improve network coverage
G5 Air adds directional antennas with up to 10dBi gain to the high frequency bands commonly used in 5G networks. Combined with the intelligent antenna switching technology, G5 Air can expand the coverage of base stations, and the Internet access rate in the areas with medium and weak signal coverage can be increased up to 20%.
EASY MESH Achieves Whole-House Coverage
G5 Air can flexibly form mesh networks with multiple Wi-Fi routers to achieve good signal coverage in duplex apartments, villas and small offices, providing a smooth and full-coverage Wi-Fi roaming experience.
Rich combinations to exploit the potential of spectrum
G5 Air supports global mainstream 3G/4G/5G frequency bands and combinations such as NR 4CC and LOW+LOW band ENDC, making full use of operators' existing spectrum resources, and providing users with high-speed, wide-coverage, and smooth-handover cellular network roaming experience.
Abundant management and configuration interfaces
G5 Air supports local configuration management based on WEBUI and mobile apps, and remote management based on the TR069 and MQTT protocols. This improves user experience and provides cost-effective, efficient, and reliable solutions for operators' requirements for FWA terminal deployment, firmware upgrade, and O&M.
Generell
| Hersteller | ZTE |
| Waren-Nr. | 3438584 |
| Modell | 123461701002 |
| EAN | 6902176161469 |
| Produktbeschreibung | ZTE G5 Air - Wireless Router - WWAN - Wi-Fi 7 - 5G, 4G, 3G, 2G - Desktop |
| Gerätetyp | Wireless Router - drahtloses Mobilfunkmodem - 2-Port-Switch (integriert) |
| Gehäusetyp | Desktop |
| Zellprotokoll | 5G NR, 4G LTE |
| Generation | 5G, 4G, 3G, 2G |
| Mobilfunk-Frequenzband | 5G NR NSA n1, 5G NR NSA n3, 5G NR NSA n7, 5G NR NSA n8, 5G NR NSA n20, 5G NR NSA n28, 5G NR NSA n38, 5G NR NSA n40, 5G NR NSA n75, 5G NR NSA n78, 5G NR SA n1, 5G NR SA n3, 5G NR SA n7, 5G NR SA n8, 5G NR SA n20, 5G NR SA n38, 5G NR SA n40, 5G NR SA n75, 5G NR SA n78, LTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28, LTE B32, LTE B38, LTE B40 |
| WAN-Ports Anz. | 1 |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Frequenzband | 2,4 GHZ / 5 GHz |
| DatenĂĽbertragungsrate | 7 Gbps |
| Leistung | 5G Downloadgeschwindigkeit: 4.228 Gbps Maximale Datenrate (2,4 GHz): 688 Mbps Maximale Datenrate (5 GHz): 2.882 Gbps |
| Kapazität | Maximale WiFi-Benutzerkapazität: 128 |
| Leistungsmerkmale | 2x2 MIMO-Technologie, EasyMesh, 4K-Auflösung, Reset-Taste, WPS-Taste |
| Abmessungen (Breite x Tiefe x Höhe) | 7 cm x 12.4 cm x 18.6 cm |
| Gewicht | 560 g |
Technische Daten
| Allgemein | |
| Gerätetyp | Wireless Router - 2-Port-Switch (integriert) |
| Gehäusetyp | Desktop |
| Anschlusstechnik | Kabelgebunden, kabellos |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Frequenzband | 2,4 GHZ / 5 GHz |
| DatenĂĽbertragungsrate | 7 Gbps |
| Leistung | 5G Downloadgeschwindigkeit: 4.228 Gbps Maximale Datenrate (2,4 GHz): 688 Mbps Maximale Datenrate (5 GHz): 2.882 Gbps |
| Kapazität | Maximale WiFi-Benutzerkapazität: 128 |
| WLAN-Rating | BE3600 |
| Leistungsmerkmale | 2x2 MIMO-Technologie, EasyMesh, 4K-Auflösung, Reset-Taste, WPS-Taste |
| Kommunikationsformen | |
| Typ | Drahtloses Mobilfunkmodem |
| Zellprotokoll | 5G NR, 4G LTE |
| Generation | 5G, 4G, 3G, 2G |
| Mobilfunk-Frequenzband | 5G NR NSA n1, 5G NR NSA n3, 5G NR NSA n7, 5G NR NSA n8, 5G NR NSA n20, 5G NR NSA n28, 5G NR NSA n38, 5G NR NSA n40, 5G NR NSA n75, 5G NR NSA n78, 5G NR SA n1, 5G NR SA n3, 5G NR SA n7, 5G NR SA n8, 5G NR SA n20, 5G NR SA n38, 5G NR SA n40, 5G NR SA n75, 5G NR SA n78, LTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28, LTE B32, LTE B38, LTE B40 |
| Erweiterung/Konnektivität | |
| Schnittstellen | WAN / LAN: 1 x 1000Base-T - RJ-45 LAN: 1 x 1000Base-T - RJ-45 Telefonleitung: 1 x RJ-11 Antenne: 2 x TS-9 |
| Erweiterungssteckplätze | 1 (gesamt)/ 1 (frei) x Nano-SIM |
| Antenne | |
| Antenne | Intern |
| Gain Level | 10 dBi |
| Stromversorgung | |
| Stromversorgungsgerät | Externer Netzadapter |
| Verschiedenes | |
| Zubehör im Lieferumfang | Netzteil |
| Enthaltene Kabel | 1 x Netzwerkkabel |
| MaĂźe und Gewicht | |
| Breite | 7 cm |
| Tiefe | 12.4 cm |
| Höhe | 18.6 cm |
| Gewicht | 560 g |
| Umgebungsbedingungen | |
| Min Betriebstemperatur | -20 °C |
| Max. Betriebstemperatur | 55 °C |
| Zulässige Luftfeuchtigkeit im Betrieb | 5 - 95% |
Die genannten Informationen und Spezifikationen können vom Hersteller jederzeit und ohne vorherige Ankündigung geändert werden. Die Herstellerabbildungen dienen ausschließlich der Veranschaulichung. Irrtümer und Schreibfehler bleiben vorbehalten. Deutsche Bedienungsanleitungen sind in einigen Fällen ausschließlich digital verfügbar und nicht Bestandteil des Lieferumfangs. Teile des Textes wurden möglicherweise automatisiert erstellt oder maschinell übersetzt und können daher in Einzelfällen missverständlich sein.
